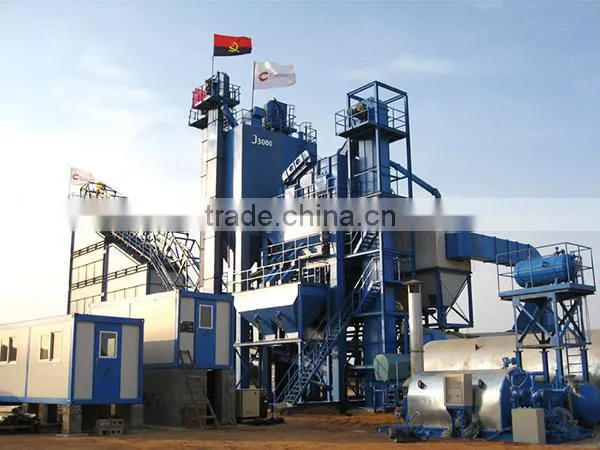

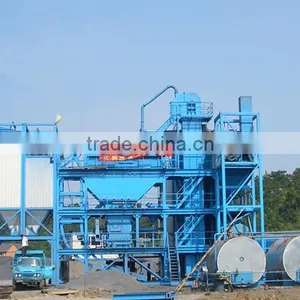

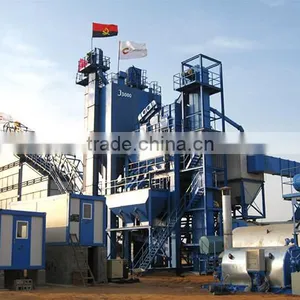

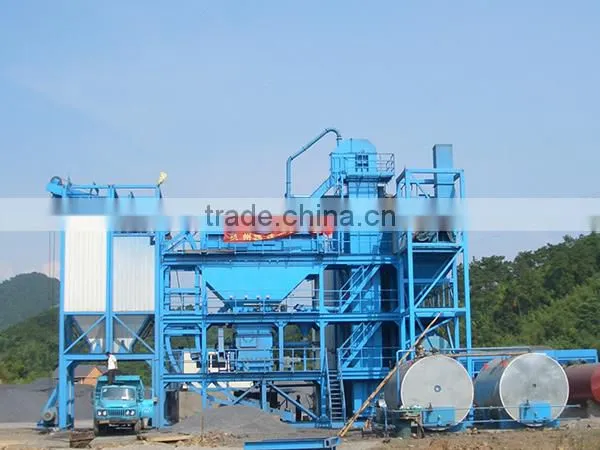

200-240t/h manufacturer Large asphalt mixture mixing equipment J3000
Haomei machinery in the design of asphalt mixing plant and process production manufacturing , select Europe developed latest of components as supporting parts, makes equipment overall technology always with international advanced level keep synchronization, it guarantee has equipment of reliability, and stability, and more environmental, and energy-saving; has independent technology development of advantage and more items independent intellectual property, its itself development development of asphalt mixed material mixing station electric control system has up international leading of technology. Production base is equipped with advanced production and testing equipment and instruments, to ensure that every aspect of production of key components and steel structures are up to international standards.
Fully assembled before the factory, and undergo strict quality testing to ensure the quality of the product.
Main features and parameters
model J3000
production(t/h) 200-240
Every pot capacity(kg) 3000
Dust removal efficiency(mg/Nm³) ≤25
Measuring accuracity aggregate ±0.3%
powder ±0.2%
batcherlong×wide(m) 3.2×2.5
asphalt ±0.1%
Bucket capacity(m³) 10
Temperature control precision(℃) ≤±5
Aggregate belt conveyorwide(mm) 650
Weighting hopper capacity stone(kg) 3500
power(kw) 5.5
power(kg) 450
Drying cylinderdiameter×length(m) 2.5×9.5
asphalt(kg) 450
power(kw) 4×22
Mixing potvolum(kg) 3000
vibrating long×wide(m) 5.4×3
power(kw) 2×37
Power(kw) 2×15
Main structure
1. The cold material supply system
Silos volume and quantity can be according to customer's need to be flexible matching (8 cubic, 10 cubic, 18 cubic optional, do much to 10 hopper);
Bin the split type design, can effectively decrease the size of transport and make sure the hopper volume;
Adopts the seamless ring belt, reliable service life is long, to extract the belt machine adopts flat belt to add baffle design, easy maintenance and replacement;
Adopts Siemens frequency conversion motor, stepless speed regulation, control precision, environmental protection and energy saving
2. Drying system
Imported ABS burner, high efficiency and energy saving, diesel oil, heavy oil, natural gas and other fuels and composite fuel burner optional (the F series burner has roller design is optimized according to my company, in order to ensure the best performance);
Drying drum of the use of special design, high heat efficiency, low heat loss;
Roller blade adopts imported Sweden HARDOX high-temperature wear-resistant steel, long service life;
The United States HONEYWELL (HONEYWELL) and ignition burner controller;
Roller ABB or SIEMENS (SIEMENS) motor drive system using and state fly (BONFIGLIOLI) speed reducer
3. Powder metering system
With smaller diameter into the weigher screw conveyor and driven by frequency conversion, can significantly improve the accuracy of powder measurement;
Powder each weighing hopper (aggregate, powder, bitumen) is equipped with three type weighing sensors, stable work, reliable performance;
A specially designed dual-axial asphalt concrete mixer, mixing arm is cross symmetric arrangement, and equipped with a replaceable surface grid mixing blades, high mixing efficiency, long service life; Using ROSSI mechanical synchronous speed reducer high speed end, simple structure, low failure rate
4. The dust removal system
Using two levels of dust removal system (gravity precipitation + bag) with high and low temperature protection device to ensure the system security;
Dust bag with the United States dupont NOMEX materials;
Induced draft fan adopts frequency conversion control, can significantly reduce the starting current and more energy efficient;
Optional more efficient and reliable import FERRARI (FERRARI) induced draft fan.
Haomei machinery uphold integrity innovation, service first, we have a number of highly qualified professional engineers, for the user's pre-sale, sale, after-sale tracking service in all directions.
Our engineering service center is responsible for the guidance of domestic and outside equipment installation, commissioning, after-sales service and spare parts business and equipment renovation project.
Engineering service center has dozens of the professional training of service engineers, 50% of the staff has more than a decade of asphalt mixture mixing equipment installation and debugging experience.
Engineering service center for the domestic and foreign users to provide installation, commissioning, maintenance, technical advice and support, and other professional services, at the same time, providing customers with high quality, low price and high quality accessories/equipment modification, upgrade and other services. We have separate spare parts warehouse, equipped with more than 3000 different types of imported parts, casting parts, mechanical parts, pneumatic components, electrical components and other vulnerable parts, merger and factory warehouse support, provide the biggest parts guarantee for the user.
Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality asphalt mixing plant, concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches
.Certificates and customers
