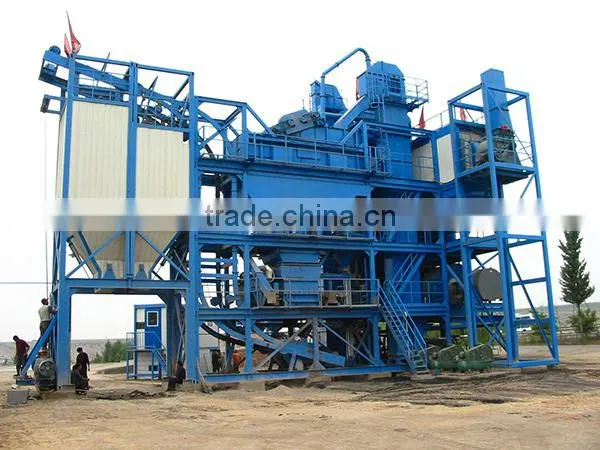

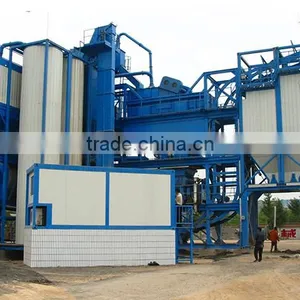

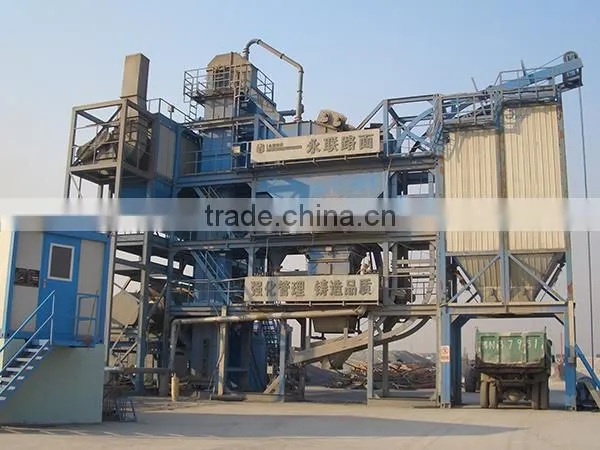

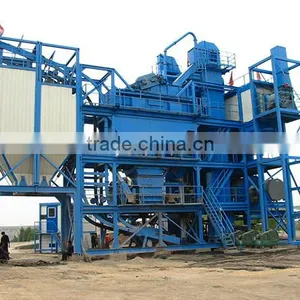

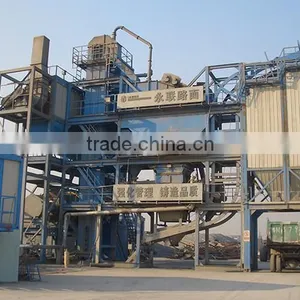

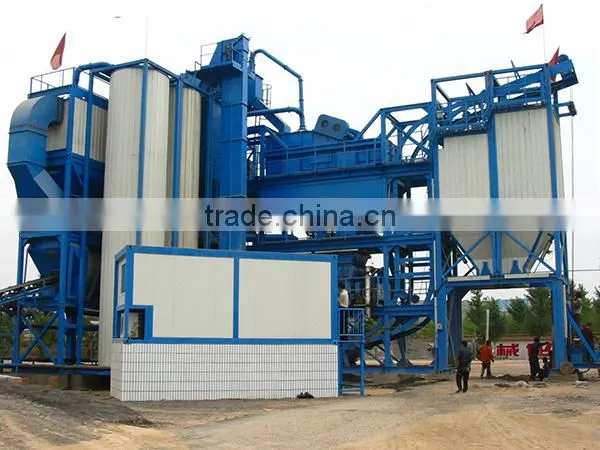

120-160T/H LOW COST ASPHALT MIX PLANT J2000
Haomei machinery in the design of asphalt mixing plant and process production manufacturing , select Europe developed latest of components as supporting parts, makes equipment overall technology always with international advanced level keep synchronization, it guarantee has equipment of reliability, and stability, and more environmental, and energy-saving; has independent technology development of advantage and more items independent intellectual property, its itself development development of asphalt mixed material mixing station electric control system has up international leading of technology. Production base is equipped with advanced production and testing equipment and instruments, to ensure that every aspect of production of key components and steel structures are up to international standards.
Fully assembled before the factory, and undergo strict quality testing to ensure the quality of the product.
technical parameters of asphalt mix equipment
model J2000
Production capacity (t/h) 120-160
Every pot capacity (kg) 2000
Dust removal efficiency (mg/Nm³) ≤25
Measuring accuracy aggregate ±0.3%
total capacity (kw) 420
powder ±0.2%
batcherlong×wide(m) 3×2.43
asphalt ±0.1%
Bucket capacity (m³) 8.5
temperature control precision (℃) ≤±5
ggregate belt conveyorwide(mm) 650
Weighing hopper capacity stone (kg) 2000
power(kw) 5.5
powder (kg) 400
Drying cylinder diameter× length (m) 2.13×8.2
asphalt (kg) 300
Power(kw) 4×11
Mixing pot Volume (kg) 2000
Vibrating screenlong×wide(m) 5.8×2.4
power(kw) 2×22
power(kw) 2×1
Main Structure of asphalt drum mix plants :

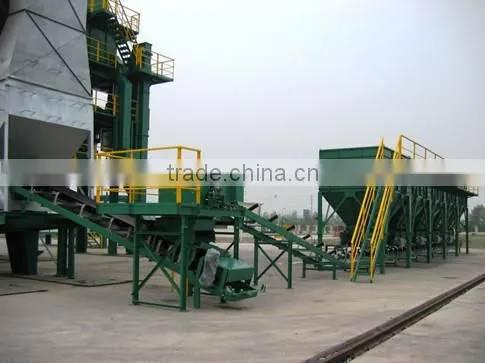

1. The cold material supply system
Silos volume and quantity can be according to customer's need to be flexible matching (8 cubic, 10 cubic, 18 cubic optional, do much to 10 hopper);
Bin the split type design, can effectively decrease the size of transport and make sure the hopper volume;
Adopts the seamless ring belt, reliable service life is long, to extract the belt machine adopts flat belt to add baffle design, easy maintenance and replacement;
Adopts Siemens frequency conversion motor, stepless speed regulation, control precision, environmental protection and energy saving
2. Drying system
Imported ABS burner, high efficiency and energy saving, diesel oil, heavy oil, natural gas and other fuels and composite fuel burner optional (the F series burner has roller design is optimized according to my company, in order to ensure the best performance);
Drying drum of the use of special design, high heat efficiency, low heat loss;
Roller blade adopts imported Sweden HARDOX high-temperature wear-resistant steel, long service life;
The United States HONEYWELL (HONEYWELL) and ignition burner controller;
Roller ABB or SIEMENS (SIEMENS) motor drive system using and state fly (BONFIGLIOLI) speed reducer

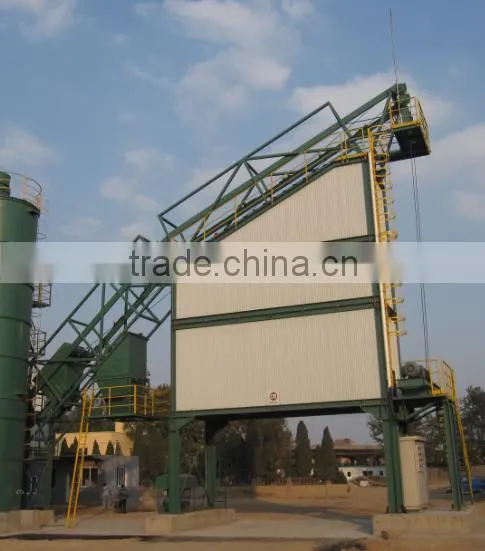

3.The finished product warehouse system
Finished product storehouse layout flexibility, with a set (b) and bottom (c) two kinds of arrangement is optional;
High type mixing floor design, from the mixer discharge directly to the delivery truck, so that the finished product system malfunction or not finished product storehouse under the condition of (a) meet the needs of the work; Volume of finished goods and quantity according to user requirements also flexible matching; Adopt the new design of frequency conversion winch, compact structure, energy conservation and environmental protection.

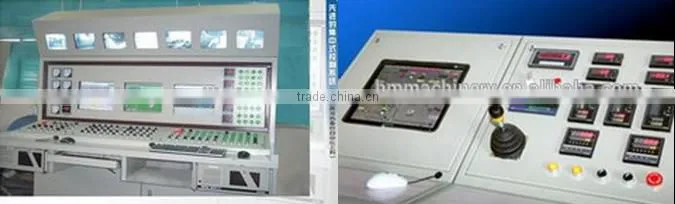

7. Control system
Used by DE base, research and development with independent intellectual property rights "leap" full computer control and production management system;
Parallel redundancy control system (the system with industrial computer, touch screen and manual console 3 sets of independent system), the system has high reliability;
Visual graphics control interface, language choice, more intuitive and easy to understand, easy to operate;
Control system adopts SIEMENS (SIEMENS) or VIPA programmable logic controller, and other key components (such as frequency converter low voltage electrical appliances) USES the international well-known manufacturer brand (such as SIEMENS, panasonic, etc.).

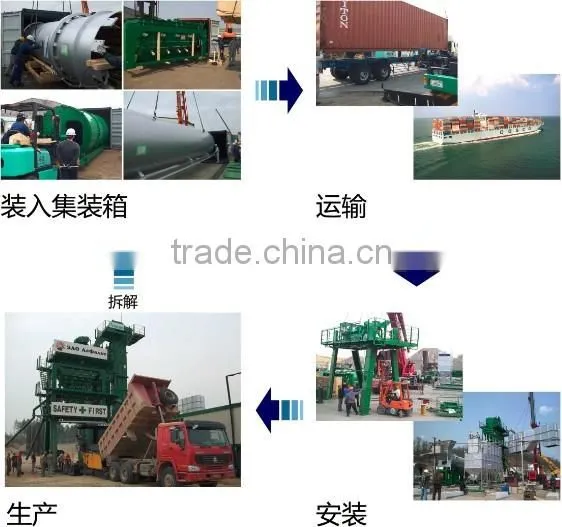

nude cargo or based on customer's requirement.
1.Wire cables are used for fastening the machine on the trailer or inside the container.
2.Cork wood are placed in front or behind the machine to protect it.
3.Plastic film is covered on the machine as a rain-roof.
Hao mei machinery uphold integrity innovation, service first, we have a number of highly qualified professional engineers, for the user's pre-sale, sale, after-sale tracking service in all directions.
Our engineering service center is responsible for the guidance of domestic and outside equipment installation, commissioning, after-sales service and spare parts business and equipment renovation project.
Engineering service center has dozens of the professional training of service engineers, 50% of the staff has more than a decade of asphalt mixture mixing equipment installation and debugging experience.
Engineering service center for the domestic and foreign users to provide installation, commissioning, maintenance, technical advice and support, and other professional services, at the same time, providing customers with high quality, low price and high quality accessories/equipment modification, upgrade and other services. We have separate spare parts warehouse, equipped with more than 3000 different types of imported parts, casting parts, mechanical parts, pneumatic components, electrical components and other vulnerable parts, merger and factory warehouse support, provide the biggest parts guarantee for the user.
Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality asphalt mixing plant, concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
Certificates and customers
1. Why dose the customs choose our HAOMEI concrete mixer?
Specialize on manufacturing only asphalt mixing plant
Commitment used to serve clients as their solution partner.
What's the quality of your concrete mixer?
Rest assured that our products have got ISO, CE certificated. We have the professional team for the products' study and development.
What’s more, LDX200Asphalt mixing plant is on sale with a competitive price and I believe you will not miss this chance. We sincerely hope we can establish business relationship between us and welcome you visit our factory.
2. When do you deliver the goods?
less than 30 days after the deposit.
