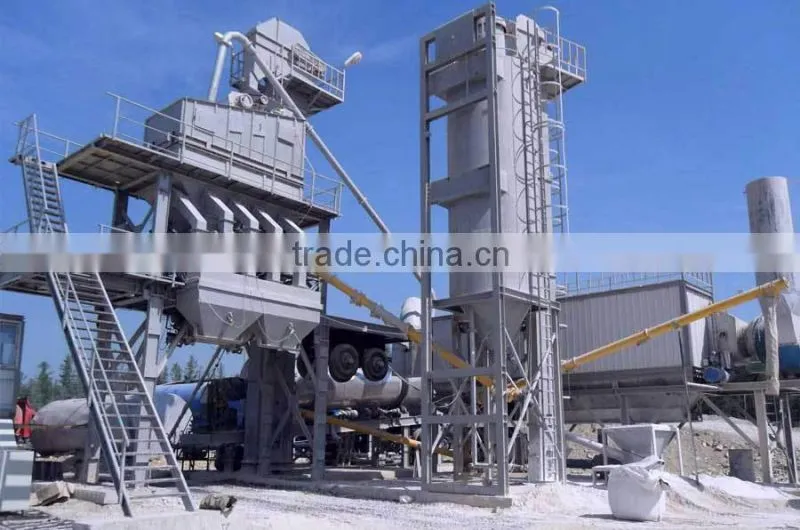

MINI 40-240T/h Mobile Asphalt Batching Plant
Fully assembled before the factory, and undergo strict quality testing to ensure the quality of the product.
technical parameters of asphalt mix equipment
Item QLB800 QLB 1000 QLB 1200 QLB 1500 QLB 2000 QLB 3000
Production (t/h),(moisture 5%) 40-60 60-80 90-110 100-120 120-160 180-240
Total Power(KW) 180 268 300 350 490 720
Finished product temperature (℃) 140-180 140-180 140-180 140-180 140-180 140-180
Asphalt aggregate ratio (%) 3-7 3-7 3-7 3-7 3-7 3-7
Aggregate silo capacity(m3) 4/28 4/28 4/32 4/32 4/32 5/45
Aggregate silo Quantity 4 4 4 4-6 4-6 4-6
Capacity of feeding belt conveyor (t/h)120 180 180 200 200 260
Feeding belt conveyor width(mm) 500 500 500 600 600 700
Aggregate weighting accuracy (%) ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5
Powder weighting accuracy (%) ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.3
Bitumen weighting accuracy (%) ±0.2 ±0.2 ±0.2 ±0.2 ±0.2 ±0.2
Diameter of drying drum (m) φ1.45 φ1.65 φ1.9 φ2.0 φ2.2 φ2.5
Capacity of mixer (kg) 800 1000 1200 1500 2000 3000
Mixing time (s) 30-60 30-60 30-60 30-60 30-60 30-60
Capacity of Finished product storage bin (m3) 30 50 50 100 120 150
Discharge height of finished product (m) 3.8 3.8 3.8 3.8 3.8 3.8
Assembly form Module assembly form
Computer control system Fully-automatic, Semi-automatic and Manual
Operation room(length × width) 3.8m×2.4m 4m×2.6m

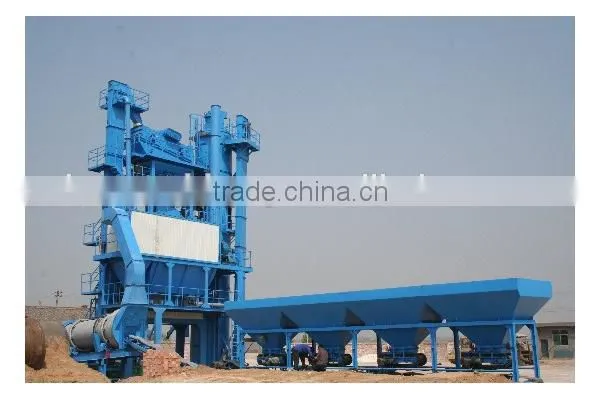

Main Structure of mobile asphalt mix plants :
1. The cold material supply system
Silos volume and quantity can be according to customer's need to be flexible matching (8 cubic, 10 cubic, 18 cubic optional, do much to 10 hopper);
Bin the split type design, can effectively decrease the size of transport and make sure the hopper volume;
Adopts the seamless ring belt, reliable service life is long, to extract the belt machine adopts flat belt to add baffle design, easy maintenance and replacement;
Adopts Siemens frequency conversion motor, stepless speed regulation, control precision, environmental protection and energy saving
2. Drying system
Imported ABS burner, high efficiency and energy saving, diesel oil, heavy oil, natural gas and other fuels and composite fuel burner optional (the F series burner has roller design is optimized according to my company, in order to ensure the best performance);
Drying drum of the use of special design, high heat efficiency, low heat loss;
Roller blade adopts imported Sweden HARDOX high-temperature wear-resistant steel, long service life;
The United States HONEYWELL (HONEYWELL) and ignition burner controller;
Roller ABB or SIEMENS (SIEMENS) motor drive system using and state fly (BONFIGLIOLI) speed reducer
3. The dust removal system
Using two levels of dust removal system (gravity precipitation + bag) with high and low temperature protection device to ensure the system security;
Dust bag with the United States dupont NOMEX materials;
Induced draft fan adopts frequency conversion control, can significantly reduce the starting current and more energy efficient;
Optional more efficient and reliable import FERRARI (FERRARI) induced draft fan.
4. The powder system
Standard lap powder tank design, easier to connect with the main system and effectively reduce cover an area of an area;
Powder tank volume and quantity can be according to customer's need to be flexible matching;
Powder conveying system adopts the crown (NORGREN pneumatic components and WAM screw conveyor.
5. Powder metering system
With smaller diameter into the weigher screw conveyor and driven by frequency conversion, can significantly improve the accuracy of powder measurement;
Powder each weighing hopper (aggregate, powder, bitumen) is equipped with three type weighing sensors, stable work, reliable performance;
A specially designed dual-axial asphalt concrete mixer, mixing arm is cross symmetric arrangement, and equipped with a replaceable surface grid mixing blades, high mixing efficiency, long service life; Using ROSSI mechanical synchronous speed reducer high speed end, simple structure, low failure rate;
6. The finished product warehouse system
Finished product storehouse layout flexibility, with a set (b) and bottom (c) two kinds of arrangement is optional;
High type mixing floor design, from the mixer discharge directly to the delivery truck, so that the finished product system malfunction or not finished product storehouse under the condition of (a) meet the needs of the work; Volume of finished goods and quantity according to user requirements also flexible matching; Adopt the new design of frequency conversion winch, compact structure, energy conservation and environmental protection.
7. Control system
Used by DE base, research and development with independent intellectual property rights "leap" full computer control and production management system;
Parallel redundancy control system (the system with industrial computer, touch screen and manual console 3 sets of independent system), the system has high reliability;
Visual graphics control interface, language choice, more intuitive and easy to understand, easy to operate;
8.asphalt heating system
There are horizontal and vertical asphalt tank 2 kind of decorate a form, and asphalt tank volume and quantity also can be optional according to user requirements, flexible combination;
Pre-sale service
Suggest the best suitable products for customers according to their requirement, with sincere attitude
Try our best to Offer the technical service before installment.
Give our customers training for main problems and solution, maintenance and so on
During sale service
Supervising the whole process of producing and shipment and making sure our product deliver with good condition in time.
Offer all the necessary technical data to customer.
After sale service
Offer installment, debugging, and repairing service after customer receiving our products.
Offer work-site training.
Solve the customer’s complain at first time and try to arrive at the work site once get your notice.
We record every sold product on installment, debugging, and repairing situation. And provide professional maintenance advice.
We will visit customer timely to learn customer’s advice and new demand.
Certificates and customers
1. Why dose the customs choose our HAOMEI concrete mixer?
Specialize on manufacturing only asphalt mixing plant
Commitment used to serve clients as their solution partner.
What's the quality of your concrete mixer?
Rest assured that our products have got ISO, CE certificated. We have the professional team for the products' study and development.
What’s more, LB2000Asphalt mixing plant is on sale with a competitive price and I believe you will not miss this chance. We sincerely hope we can establish business relationship between us and welcome you visit our factory.
2. When do you deliver the goods?
less than 30 days after the deposit.
