420T/H ASPHALT BATCH MIX PLANT LB4000 FOR SALE
Batch type, high efficiency
Low running costs
Minimum fuel use
320T/H LB4000
Made in China
420T/H ASPHALT BATCH MIX PLANT LB4000 FOR SALE
Features Of LB-4000 Asphalt Batch Mix Plant
- Excellent mixing performance
Twin-shaft asphalt mixer has excellent mixing capacity with aggregate and bitumen well-distributed at high speed of mixing and producing; Specifically-treated inner wall plates and mixing blades, supporting structures and sealing pattern significantly improve the performance of the mixer and make it much more durable than ordinary units. Mixing blades allow 100,000 cycles of mixing process in normal working conditions. Numerous imported components have significantly reduced the possibility of system failures and breakdowns. Synchronous driving twin shaft mixing system also has centralized lubricating system, imported speed-reducer and imported bearing.
- Economic superiority
The heating and driving system is designed on a basis of European concept with accurate weighing, energy-saving, and power-saving.
- Aggregate feeding and distributing
Aggregate feeding system is designed to allow frequency conversion which should be conducted when the capacity or ratio should be changed. Speed-reducer, belts and alarming components are supplied by famous top Chinese brand. Our oscillating screen technology can guarantee the accuracy of aggregate separating for different aggregate or emergency stop
Main technical parameters of LB 4000asphalt batch mix plant equipment
Model LB4000
Capacity 320t/h (standard working condition)
Mixer Capacity 4000kg/batch
Fuel ConsumptionDiesel: 5.5-7kg/t; Coal:10kg/t
Measurement Accuracy Aggregate ±0.5%
Filler ±0.5%
Bitumen ±0.25%
Finished Asphalt Temperature 130℃-165℃
Dust Collectorgravitational dust collector & Second baghouse dust collector
Air Emissions ≤20mg/Nm3
Dark exhaust standard Ringelmann I
Working room noise ≤70db(A)
Environment noise ≤80db(A)
Operation Full Auto/Manual Operation
Voltage 220V/380V-50Hz (adjustable)
Model LB4000

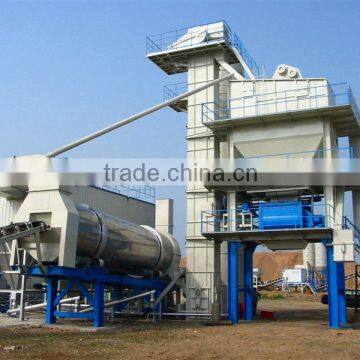

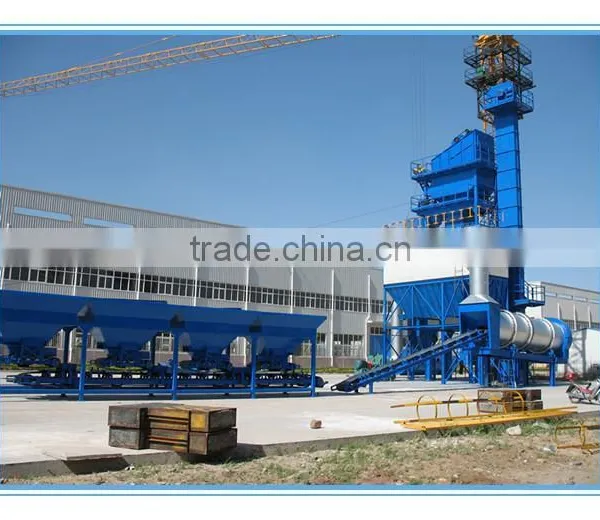

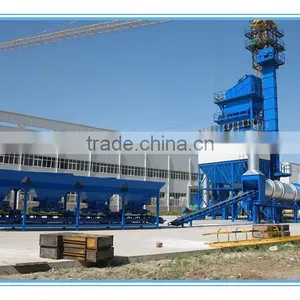

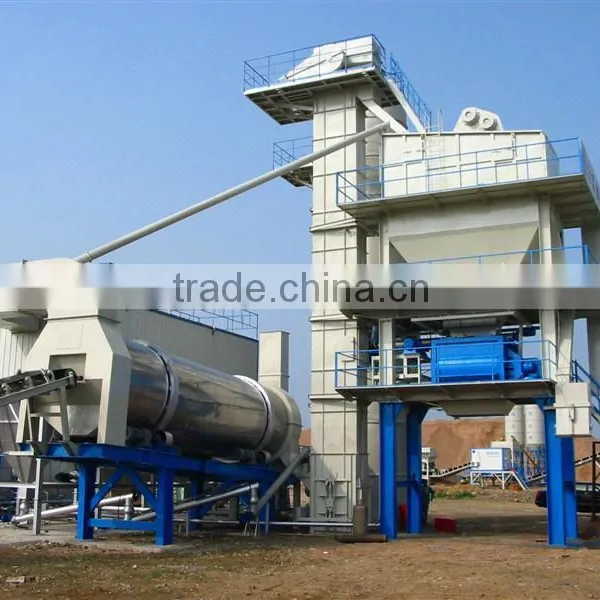

Main structure OF ASPHALT BATCH MIX PLANT
1.Cold material system
Aggregate feeder by frequency conversion, reliable performance. The hopper is provided with an isolating net, and the feeding door is adjustable, and the lack of material is provided with an alarm; the main and passive roller of the belt conveyor is arranged on the side.
2. Drying heating system
Drying drum wheel friction drive, smooth transmission, uniform stress, external insulation layer, reduce heat loss, improve the thermal efficiency; internal patent structure of drying drum provided material blade, high heat exchange rate, fuel consumption and low, discharge opening is provided with a temperature measuring device; fuel diversification choice; fuel is realized with mechanical coal feeding, automatic ignition, furnace automatic rotating, automatic walking, real-time temperature control function.
3. Measurement system
Hot aggregate metering device: built-in pressure relief channel, guarantee the accuracy of the weighing signal stability; Weighing size door thickness, in combination with program automatically added impulse, high measuring accuracy.
Powder metering device: powder measurement using the double helix conveyer, new old powder, according to the superposition of proportion measurement can be realized with the method of measurement before delivery, at the same time conveying screw mixer, effectively guarantee the powder and stir evenly.
Metering and asphalt spraying device: asphalt secondary measurement, real-time dynamic tracking; High pressure spray shower type asphalt patent structure; The anti asphalt overflow protection device.
4. Gas path system
Using the German FESTO solenoid valve, cylinder, reliable performance, long service life; gas path connection using quick connector, operation is simple and fast;
Air source after the water treatment, clean not plug, extend the service life of the cylinder; reserve gas source interface, easy to clean and other pneumatic tools.
5. Electrical control system
Main elements adopt international famous brand, stable and reliable operation; separation of strong and weak electricity by the main control room, comfortable office environment; industrial Ethernet and field bus technology, data transmission real-time and efficient; only know, semi - automatic and manual control of the, is convenient and flexible; maintenance predict, fault diagnosis and early warning, statements complete function, print function and practical; double Kang Yu operation, process dynamic display
Pre-sale service
Suggest the best suitable products for customers according to their requirement, with sincere attitude
Try our best to Offer the technical service before installment.
Give our customers training for main problems and solution, maintenance and so on
During sale service
Supervising the whole process of producing and shipment and making sure our product deliver with good condition in time.
Offer all the necessary technical data to customer.
After sale service
Offer installment, debugging, and repairing service after customer receiving our products.
Offer work-site training.
Solve the customer’s complain at first time and try to arrive at the work site once get your notice.
We record every sold product on installment, debugging, and repairing situation. And provide professional maintenance advice.
We will visit customer timely to learn customer’s advice and new demand
Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality asphalt mixing plant, concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
Certificates and customers
1. Why dose the customs choose our HAOMEI concrete mixer?
Specialize on manufacturing only asphalt mixing plant
Commitment used to serve clients as their solution partner.
What's the quality of your concrete mixer?
Rest assured that our products have got ISO, CE certificated. We have the professional team for the products' study and development.
What’s more, LDX200Asphalt mixing plant is on sale with a competitive price and I believe you will not miss this chance. We sincerely hope we can establish business relationship between us and welcome you visit our factory.
2. When do you deliver the goods?
less than 30 days after the deposit.
