China Manufacture New high quality ASPHALT DRUM MIX PLANT LB3000
Specifications
Feature of asphalt drum mix plant:
1.German technology
2.SIEMENS controller
3.Energy-saving system
4.Environment protect
Main Application of asphalt drum mix plants:
Asphalt drum mix plants can be used to produce asphalt, modified asphalt, colored asphalt,it can fully meet high-grade highway construction, municipal roads construction, airports construction, ports construction and other needs.
Easy to operate,and convenient to move from one place to another.
Main technical parameters of asphalt drum mix equipment
Type LB1500 LB2000 LB3000 LB4000
Rated production 120t/h 160 t/h 240 t/h 320 t/h
Dry cylinder 1.8 m×7m 2.2m×8m 2.5m×10m 2.8m×11m
Bag dust-remover CNM476 CNM654 CNM1012 CNM1308
mission standard 50mg/nm 350mg/nm 350mg/nm 350mg/nm3
Vibrating screen 4 layers 5 layers 5 layers 5 layers
Mixing kettle capacity 1500kg 2000kg 3000kg 4000kg
Mixing cycle 45s 45s 45s 45s
Asphalt tank volume 50000L 2×50000L 3×50000L 4×50000L
Heat conduction oil stove 300,000 k col/h 500,000 k col/h 800,000 k col/h 1,000,000 k col
End-product container volume 90t 110t 200t 200t
Control system Manual /semi-auto / automatic
Weighing accuracyAggregate ≤±0.4% ≤±0.4% ≤±0.4% ≤±0.4%
Powder material ≤±0.3% ≤±0.3% ≤±0.3% ≤±0.3%
Asphalt ≤±0.2% ≤±0.2% ≤±0.2% ≤±0.2%
Installed general power 320kw 400kw 720kw 820kw

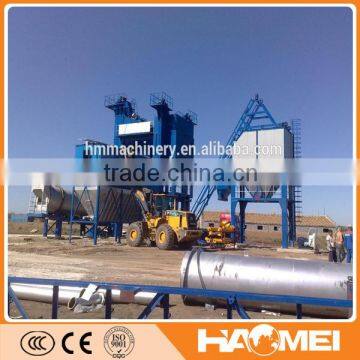

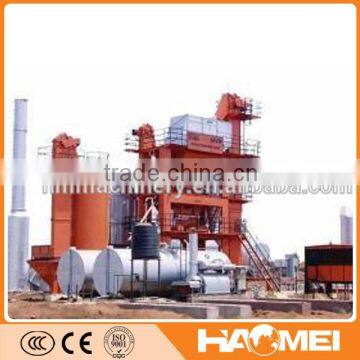

Main Structure of asphalt drum mix plants :
Asphalt drum mix plants mainly includes batching systems, drying systems, burning systems, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished product storage bin,control system and other parts.
Cold Aggregate Feed Bin
Steel frame foundation, each cold feed bin is modular design
The quantity (4/ 5/ 6 or more) of the cold feed bin is optional as your requirements.

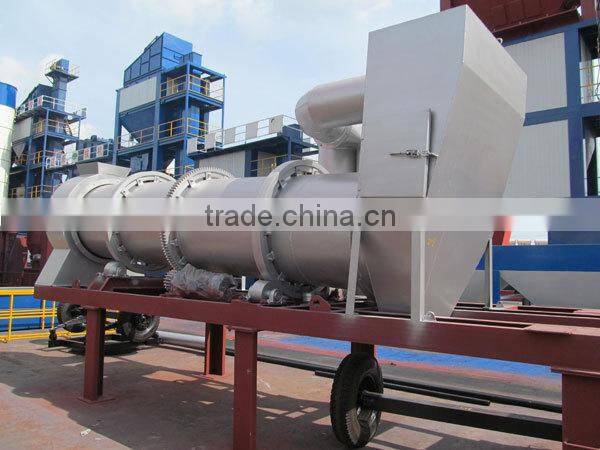

Drying Drum
1.Steel frame foundation. The drum is made by heat resistance steel boiler plate.
2.Four-wheel friction drive, smooth transmission, low noise and long service life
3.The drive reducer adopts hard tooth surface reducer, with large load capacity and impact resistance.
4.The specially designed "butterfly" elastic connection plate will be more uniformly forced after the drum
5.heated expansion. It completely solved the elastic plate heat cracking problem.
6.The roller and roller carrier shaft using high quality alloy steel forging with long service life.
7.The external drum using high quality thermal insulation material plus stainless steel mask packaging, with favorable heat preservation performance and neat and beautiful appearance
Dust Collection System for asphalt plant
Combined with primary gravity dust collecting and secondary bag house dust collector
The bag house dust collecting adopts high voltage pulse cleaning with less dust residue.
The bag is made of DuPont high efficiency dust filtering material, with low loss and long life.
The recycling dust can be reused and reduce environmental pollution.
Emission concentration is not more than 20mg/Nm3
Vibrating screen for Asphalt Plant
Specifically designed for the asphalt mixing plant, the special vibrating screen will meet the requirements better.
The high wear-resistant screen mesh (65MN) with longer service life and lower maintenance costs.
The main parts are equipped with dust cover which can effectively prevent the dust. The operation environment is more eco-friendly.
Screen adopts drawer-type structure which makes the replacements and maintenance fast and convenient.
The front shield with roller support makes move back and forth more easily.
Vibrating screen bearings adopt international brand SFK
.Electronic control system
Siemens electrical components
Siemens PLC (with remote detection and diagnosis function)
Siemens weighing module
Packaging Details:
1. Bulk shipping
2. Parts in wooden cases
3. Steel wire fasten in containers
4. waterproof methods equiped.
Pre-sale service
Suggest the best suitable products for customers according to their requirement, with sincere attitude
Try our best to Offer the technical service before installment.
Give our customers training for main problems and solution, maintenance and so on
During sale service
Supervising the whole process of producing and shipment and making sure our product deliver with good condition in time.
Offer all the necessary technical data to customer.
After sale service
Offer installment, debugging, and repairing service after customer receiving our products.
Offer work-site training.
Solve the customer’s complain at first time and try to arrive at the work site once get your notice.
We record every sold product on installment, debugging, and repairing situation. And provide professional maintenance advice.
We will visit customer timely to learn customer’s advice and new demand
Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality asphalt mixing plant, concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
Certificates and customers
1. Why dose the customs choose our HAOMEI concrete mixer?
Specialize on manufacturing only asphalt mixing plant
Commitment used to serve clients as their solution partner.
What's the quality of your concrete mixer?
Rest assured that our products have got ISO, CE certificated. We have the professional team for the products' study and development.
What’s more, LDX200Asphalt mixing plant is on sale with a competitive price and I believe you will not miss this chance. We sincerely hope we can establish business relationship between us and welcome you visit our factory.
2. When do you deliver the goods?
less than 30 days after the deposit.
