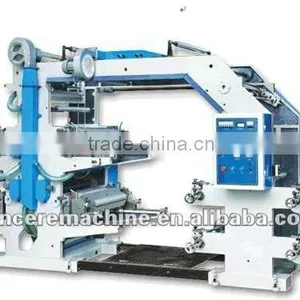

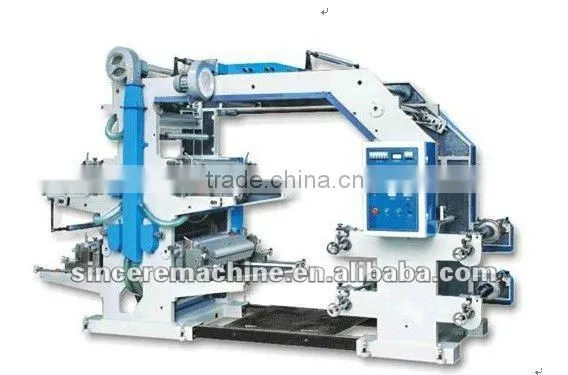

Flexo Printing Machine

Name: Flexo Printing Machine
Brand: Sincere
SKU: 115660401

US$ 8,500 - 11,000 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other, flexo print

Place of Origin:

Zhejiang, China

Ruian Lifeng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, flexo print

Place of Origin Zhejiang, China

Brand Name Sincere

Model Number YT-4600

Usage Paper Printer

Automatic Grade Automatic

Gross Power 10.87kw

Dimensions(L*W*H) 4200*1600*2400mm

1. Easy operation, soft starting, accurate color register.

2. The meter counter can set printing quantity according to the

requirements. Stop the machine automatically at the quantity or when the material is cut off.

3. Lift the plate cylinder manually, and then stir the ink automatically.

4. Convey the ink by anilox roller steadily.

5. Trusty drying system, coordinating high speed, and automatic break

after machine halt.

6. 360º continuous and adjustable longitudinal register sets.

7. Change the printing speed through frequency conversion.

8. There are jogging/stopping button on both the roller seat and material receiving rack so as to operate the machine when installing the plate.

Model	YT-4600	YT-4800	YT-41000	YT-41200
Max Width of Printing Material	600mm	800mm	1000mm	1200mm
Max Width of Printing	560 mm	760 mm	960 mm	1160 mm
Product Length Range	191-914mm	191-914mm	191-914mm	191-914mm
Max Diameter of Rolling Material	450mm	450mm	450mm	500mm
Printing Speed	5-50m/min	5-50m/min	5-50m/min	5-50m/min
Plate Material Thickness (including double-sided tape)	2.38mm	2.38mm	2.38mm	2.38mm
Gross Power	10.87kw	12.5kw	14.37kw	25 kw
Weight of Machine	3000kg	3500kg	4000kg	6000kg
Overall Dimension	4200×1600×2400mm	4200×1800×2400mm	4200×2000×2400mm	4200×2200×2700mm
