Specifications
1)Soil stabilization Cellular confinements2)Thickness:1,1.2,1.5,2mm
Height:50,100,150,200mm

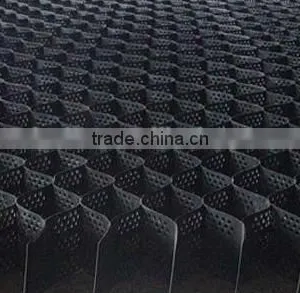

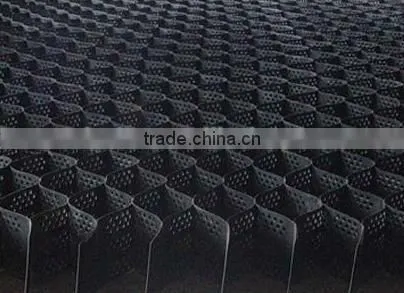

Soil stabilization Cellular confinements
Soil stabilization Cellular confinements is a net-shaped geoweb structure made by welding high intensity thermoplastic sheet. It is flexible and folded during transportation, stretching out and being filled with stone or concrete during service, and forming into structure with powerful lateral confinement and rigidity
1) Textured or smooth one
2)Welding distance: 500mm, 400mm, 356mm, 330mm
Performance parameter of Soil stabilization Cellular confinements
|
Item Model |
Tensile yield strength of the cell (MPa) |
Tensile strength at the welding joint (N/cm) |
Tensile strength at the joint of cell group Middle place (N/cm) |
Tensile strength at the joint of cell group edge |
||||
Material is PP |
Material is PE |
Material is PP |
Material is PE |
Material is PP |
Material is PE |
Material is PP |
Material is PE |
|
TGLG-50-400 |
≥23.0 |
≥20.0 |
≥100 |
≥100 |
≥120 |
≥120 |
≥200 |
≥200 |
TGLG-100-400 | ||||||||
TGLG-150-400 | ||||||||
TGLG-200-400 | ||||||||
