Good HDPE Geocell Gravel Grid
Product Introduct

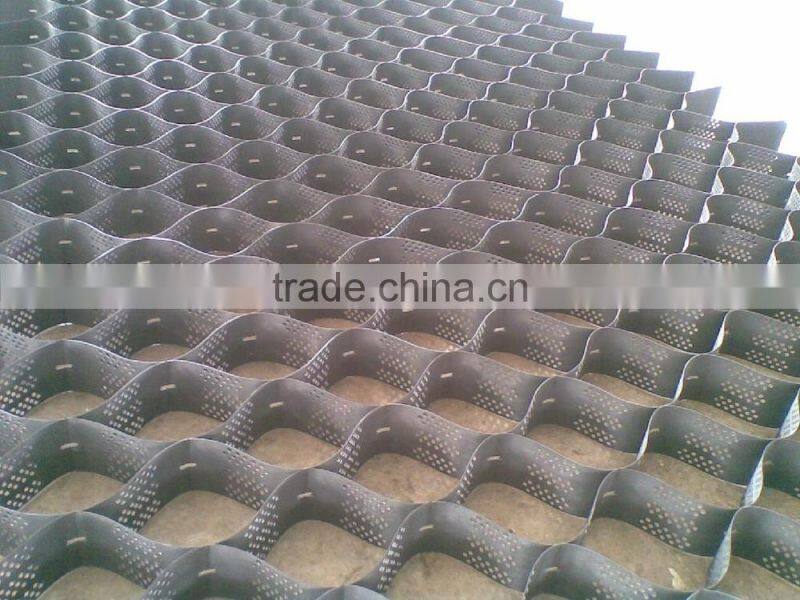

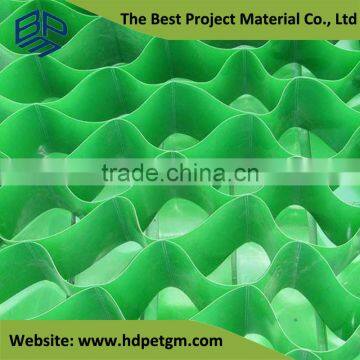

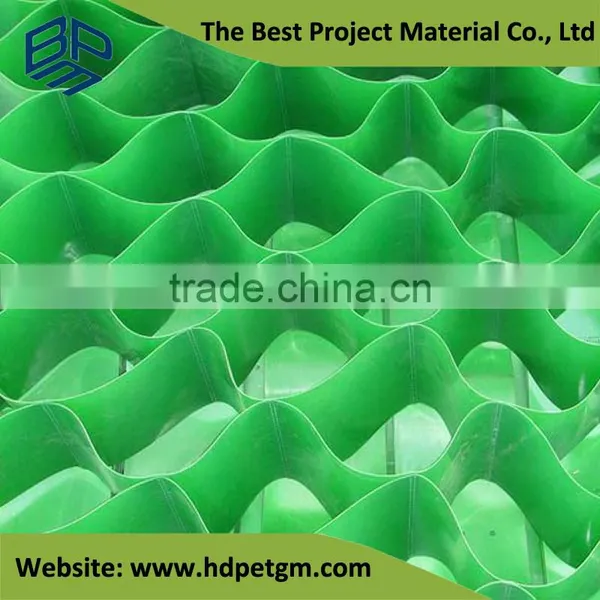

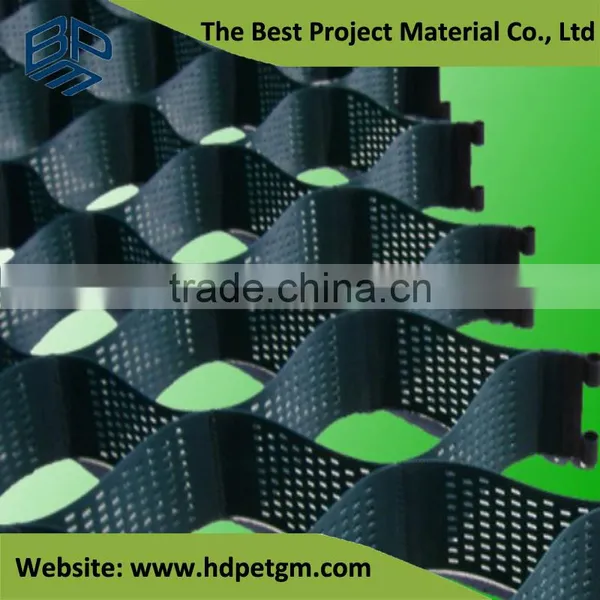

Geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene
and jointly welded by ultrasonic technique.
Product Type |
Height(mm) |
Welding Distance(mm) |
Thickness (mm) |
Tensile Strength of Welding Points(N/cm) |
Tensile Strength of Connection of Cells(N/cm) |
Tensile Strength at Yield of Each Sheet(Mpa) |
Smooth and Not Perforated |
50≤H≤250 |
330≤A≤1000 |
1.0~1.4 |
≥100 |
≥120 |
≥20 |

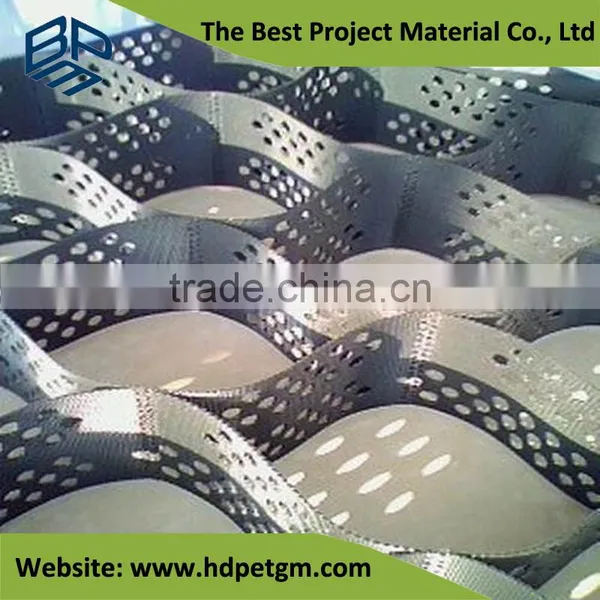

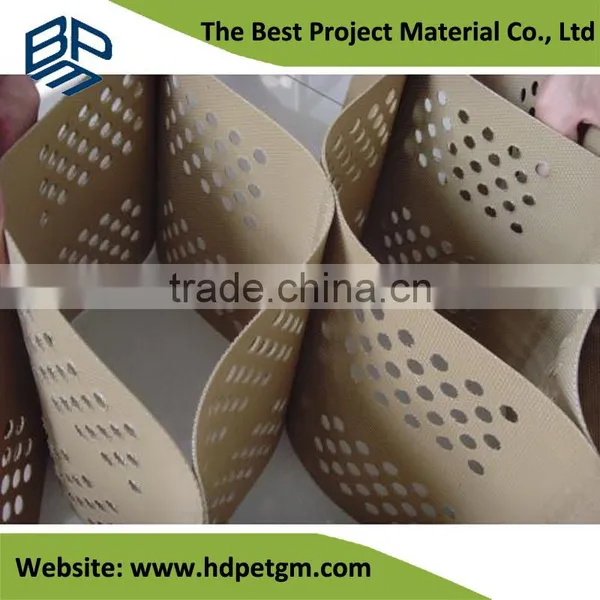

Smooth and Perforated |
50≤H≤250 |
330≤A≤1000 |
1.0~1.4 |
≥100 |
≥120 |
≥20 |
Textured and Not Perforated |
50≤H≤250 |
330≤A≤1000 |
1.5~1.7 |
≥100 |
≥120 |
≥20 |
Textured and Perforated |
50≤H≤250 |
330≤A≤1000 |
1.5~1.7 |
≥100 |
≥120 |
≥20 |
|
Remarks: 1. This is a basic technical specification. 2. All of the technical indexes can be reached according to the customers' demand, and the other special standards will be carried out by agreement or contact.
| ||||||
Geocell Feature:

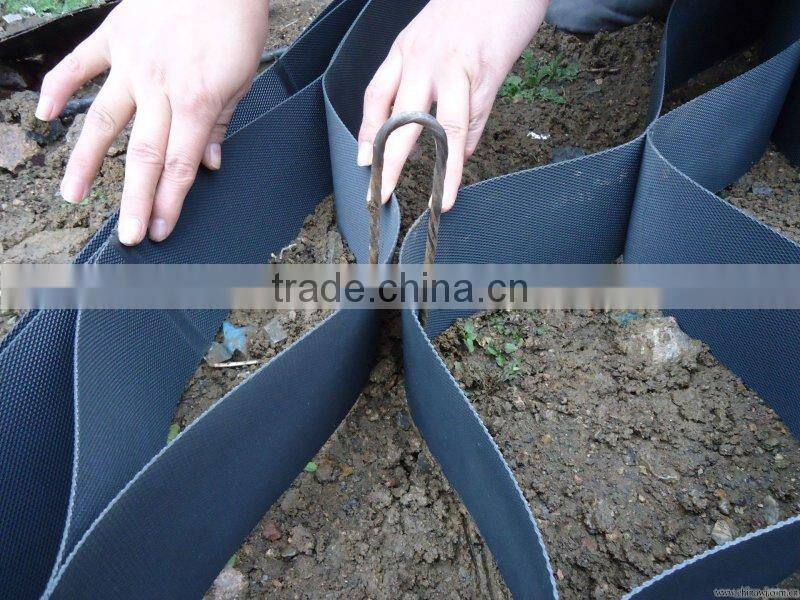

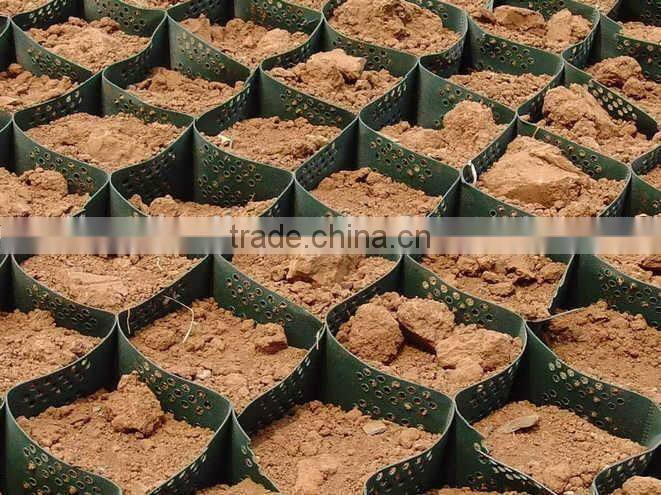

1,It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils,
granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid
confinement in the lateral and vertical sides.
2,Material is qualitative light, wear resistance, chemical stability, light oxygen aging resistance, resistance to acid and alkali;
Suitable for different soil and soil conditions, such as desert.
3,Higher lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing capacity of subgrade
and scattered loads.
4,Change the large room height, welding such as geometrical size can meet different engineering needs.
5,Retractile, transport of small size; Connection is convenient, fast construction speed.

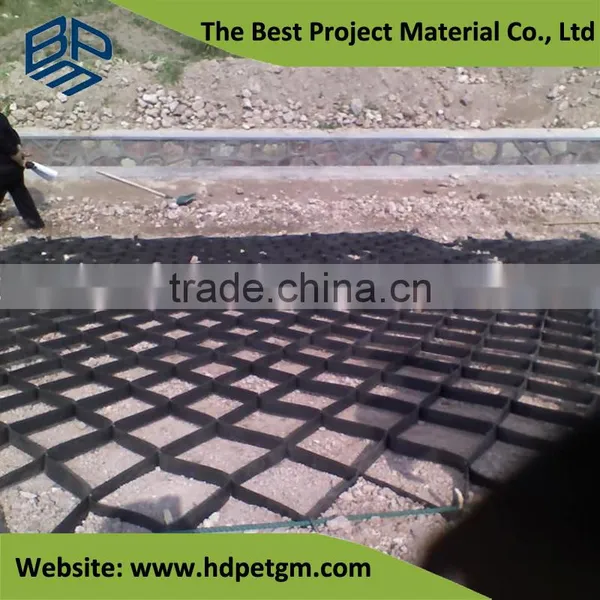

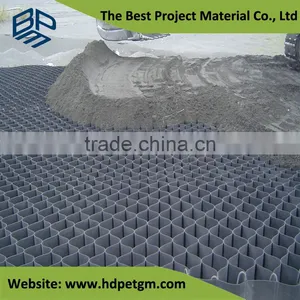

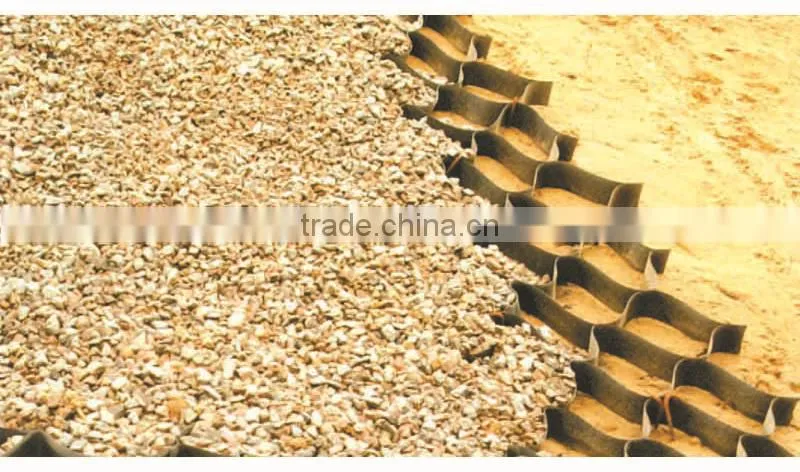

Application:

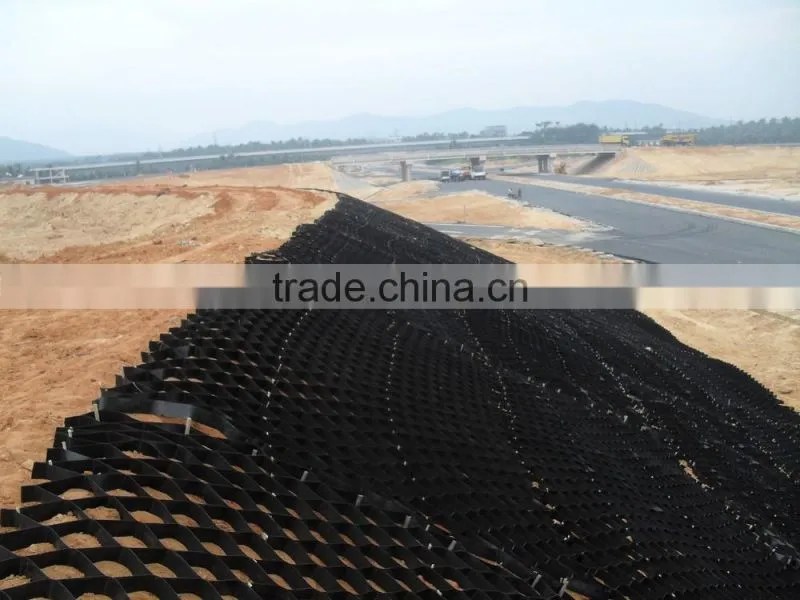

1,Used for solid highway, railway subgrade.
2,Used to withstand the load force of embankments and shallow water channel management.

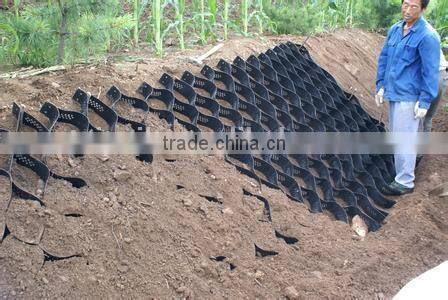

3,Used to prevent landslides and load force hybrid retaining wall.
4,In case of soft foundation. The large room can greatly reduce the labor intensity of construction,
reduce the thickness of roadbed construction speed is fast, good performance, greatly reduce the project cost.
Packing
Certification
We have obtained SASO, SONCAP, BV, ISO and other certificates.
And we also have passed DEKRA, Intertek, CNAS and other tests.
Our quality is reliable.
If you have any other test or certificate, we can do it for you.
Company Profile

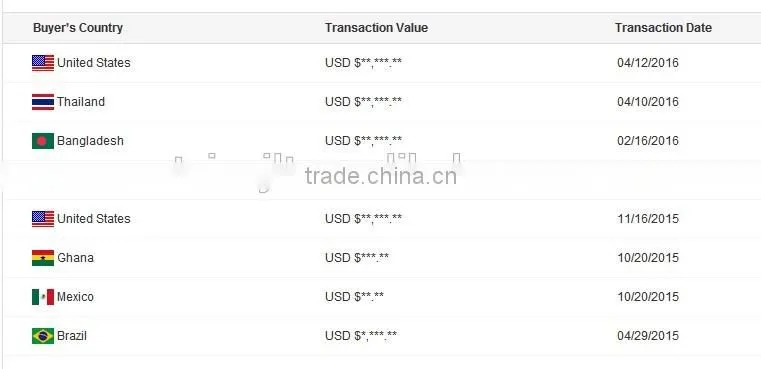

Our Recently Transactions
