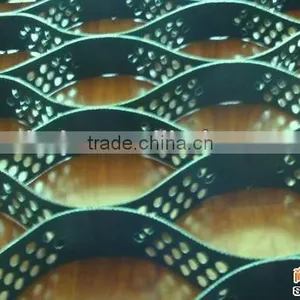

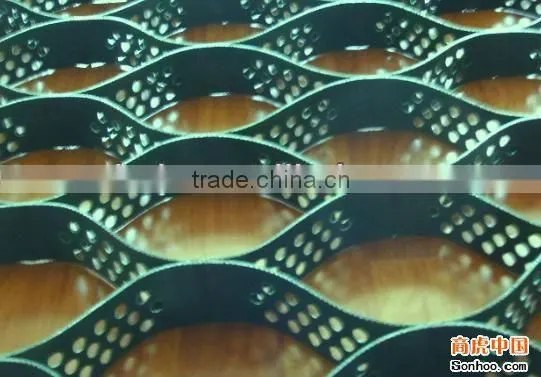

Perforated HDPE Geocell

Specifications

1)Perforated HDPE geocell
2)Thickness:1,1.2,1.5,2mm
Height:50,100,150,200mm
3)Welding distance : 400mm,500mm,356mm,330mm

Perforated HDPE geocell

Perforated HDPE Geocell is a net-shaped geoweb structure made by welding high intensity thermoplastic sheet. It is flexible and folded during transportation, stretching out and being filled with stone or concrete during service, and forming into structure with powerful lateral confinement and rigidity

 1)Perforated rate: 20% 60% 80%

 2) Textured or smooth one

3)Welding distance: 500mm, 400mm, 356mm, 330mm





 Performance parameter of HDPE geocell

Item Model	Tensile yield strength of the cell (MPa)		Tensile strength at the welding joint (N/cm)		Tensile strength at the joint of cell group Middle place (N/cm)		Tensile strength at the joint of cell group edge (N/cm)
	Material is PP	Material is PE	Material is PP	Material is PE	Material is PP	Material is PE	Material is PP	Material is PE
TGLG-50-400	≥23.0	≥20.0	≥100	≥100	≥120	≥120	≥200	≥200
TGLG-100-400
TGLG-150-400
TGLG-200-400
