Product Details
| Brand Name | OEM or ROAD | |||
| Model Number | PP PE | Material | HDPE, Other, HDPE, HDPE or PP |
Product Description
Specifications
GeocellThickness: 1mm,1.2mm,1.5mm,2mm
Height: 50mm,100mm,150mm,200mm
Raw material: PP or PE

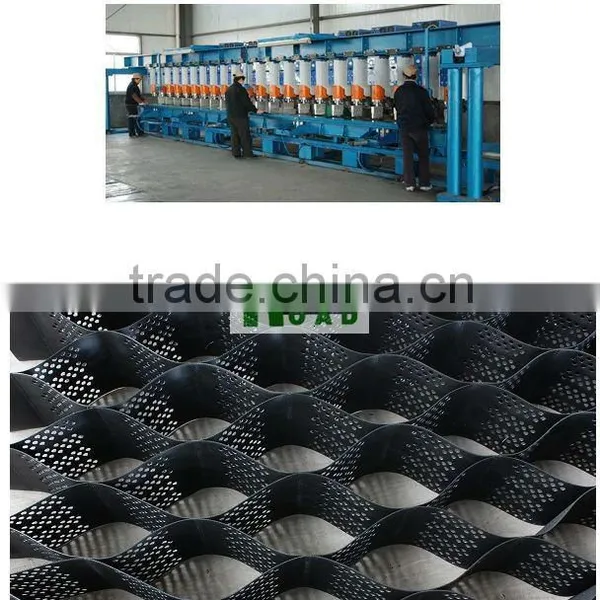

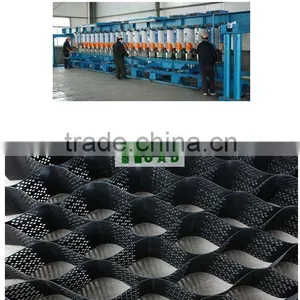

Geocell is a net-shaped cell structure made by welding high intensity thermoplastic
sheet.
Geocell
Thickness: 1mm,1.2mm,1.5mm,2mm
Height: 50mm,100mm,150mm,200mm
Raw material: PP or PE
It is flexible: folded during transportation, stretching out and beingfilled with stone or concrete during service, and forming into struct with powerful
lateral confinement and rigidity.
It can be used as cushion coat to strengthenloading capacity of weak ground or slope protection structure, as well as stopstructure, and so on.
Specification:
Model | Expanded Size (m) | Height (mm) | Welding distance (mm) | Yield strength of cell (Mpa) | Seam Peel strength (N) | Thickness (Smooth or Textured) | Perforated percentage |
TGLG500/400 | 5.7X6.22 | 50 |
330
400
500 |
≥20 | ≥500 |
Smooth sheet: 1,1.2,1.5,2mm
Textured sheet: 1.2,1.7,2mm |
15%, 20%, 40% , 60%, 80% |
TGLG75/400 | 5.7X6.22 | 75 | ≥750 | ||||
TGLG100/400 | 5.7X6.22 | 100 | ≥1000 | ||||
TGLG150/400 | 5.7X6.22 | 150 | ≥1500 | ||||
TGLG200/400 | 5.7X6.22 | 200 | ≥2000 | ||||
TGLG240/400 | 5.7X6.22 | 240 | ≥2400 | ||||
Remarks: Welding distance can be made: 330mm, 400mm, and 500mm, with various mesh sizes. | |||||||
Functions:
1.Fix railway ground.
2.Fix weak ground of roads.
3.Block loading capacity.
4.Treat river way of shallow water.
5.Act as support in pipeline and sewer.
6.Act as comprehensive block stopping land sliding and bearing loading capacity.
7.Act as independent wall, dock and break-water.
8.Treat desert, beach, riverbed and bank
