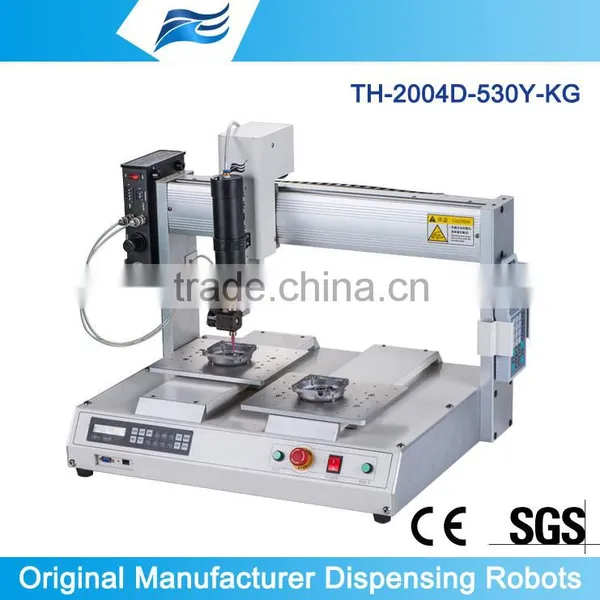

benchtop silicon glue dispensing machine with dual station TH-2004D-530Y

Product Application

Tianhao is the china’s leading precision dispensing equipment and systems manufacturer. Be found in 2001year,Our engineered fluid control systems are trusted for applying controlled amounts of adhesives, sealants, lubricants and other assembly fluids that increase productivity for nearly every industrial manufacturing process.
Tianhao offer a wide range of diversity, reasonable price and on-time delivery.

Applied Industry

Industries Aerospace

Automotive,Electronics

General Manufacturing

Medical Device

Alternative Energy

Application

Bonding

Dispensing-cold material and adhesive

Dispensing-fluid-general(Super glue,Glue,Fast dry glue,Polyurethane glue,White glue

Gasketing-silicon,Silicone adhesive,Silver cream.grease

Gluing-liquid adhesive

Filling-oil,ab glue,Epoxy, resin

Coating-uv glue,Anaerobic adhesive

Sealing-sealants

Soldering-solder paste,solid

Spraying-low viscosity material,paint

Function

1) Processing with bonding, coating, sealing, filling, drop, linear/ arc/ round gluing, etc.

2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.

Main Features

1.Dual station model available. dual table left and right output to achieve uninterrupted operation in order to improve production efficiency.

2.Available in three and four axis models

3.User-friendly design, compact and attractive appearance, easy to learn.

4.Tianhao graphics editing software can import such as NC, AI, DXF, JPG, BMP and other format files.

5.Professional dispensing software based entirely on the dispensing process development.

6.PLC Controller, Easy to program - Dedicated dispensing software eliminates the need of complex robot language programming.

7. Increase the parameters display with programmer, more intuitive operation.

8.Each axis with 2 linear guide rails, providing greater stability.

9.Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy

10.Single machine can operate without pendant
