SW433-TH22 Gold Plated Spring Antenna for Wireless Transceiver RF Module
US$ 0.2 - 0.5
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Money Gram Credit Card
You May Like
-
Low Cost rf Wireless ASK Transmitter Module STX881
-
STX888 - Low Cost 433mhz rf Wireless ASK Transmitter Module
-
NiceRF ASK Module 433MHz Long Range 100m Wireless RF Module SRX882 433 Receiver Small Size rf Remote Control
-
NiceRF ASK Module 433MHz Long Range 100m Wireless RF Module SRX882 433 Receiver Ask RF Receiver Circuit 433mhz
-
NiceRF ASK Module 433MHz Long Range 100m Wireless RF Module SRX882 433 Receiver Ask RF Radio Module
-
NiceRF ASK Module 433MHz Long Range 100m Wireless RF Module SRX882 433 Receiver Ask Module
Product Details
| Place of Origin | Guangdong, China | Brand Name | NiceRF | |
| Model Number | SW433-TH22 Gold Plated Spring Antenna |
Product Description
SW433-TH22 Gold Plated Spring Antenna for Wireless Transceiver RF Module
Breif description:
SW433-TH22 is a gold plated spring antenna, It is a dedicated antenna which designed for a wireless communication system (433MHz).It has good VSWR, small size, ingenious structure, easy installation, stable performance, with good anti-vibration and aging ability.

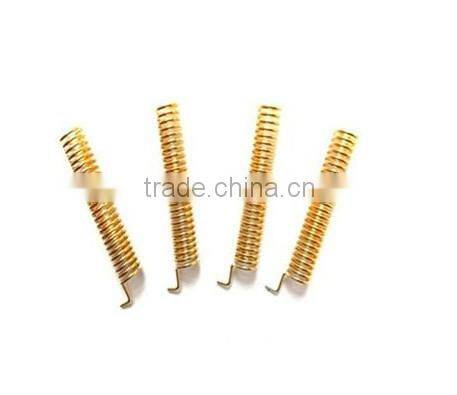

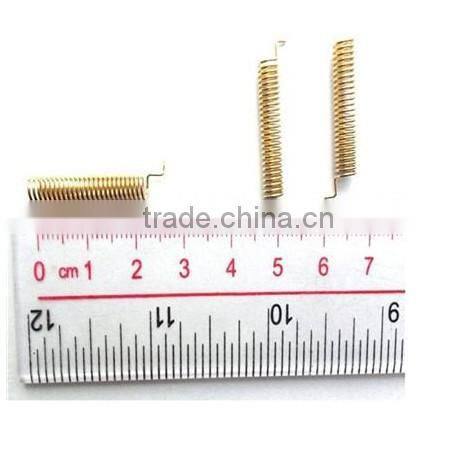

Pictures:
Features:
*Frequency range: 433 MHz (+ / -8)
*VSWR: <= 1.5
*Input impedance: 50 Ω
*Maximum power: 10 W
*Gain: 2.15 dBi
*Weight: 1g
*Height: 22 + / -1 mm (25T)
*Antenna Color: golden
*Interface Type: welded directly

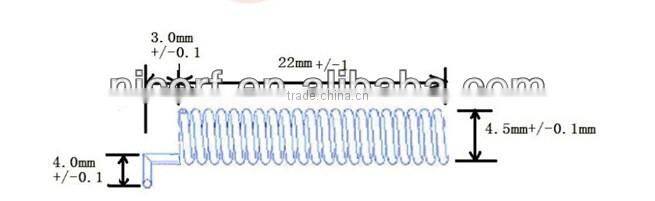

Size:

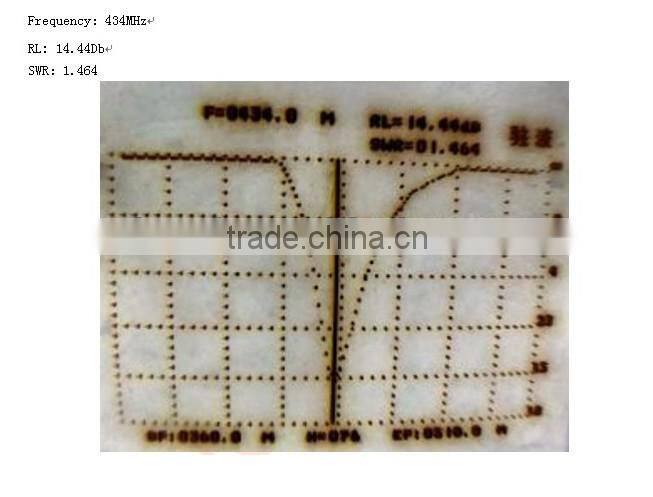

VSWR Chart:
