NiceRF 2.4G Remote Wireless RF Transceiver Module RF2401 -115dBm 2.4G Transmitter and Receiver Module

 NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

Product Description

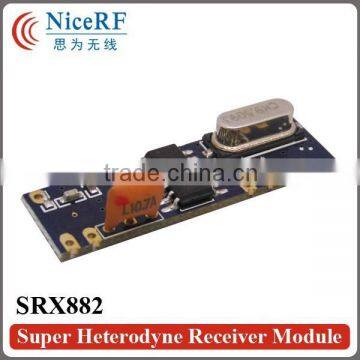

SRX882 Low Consumption Strong Driving Force Super Heterodyne Receiver Module
SRX882 is a micro power strong driving force super heterodyne receiver module. It is can support our transmitter module STX882/STX888. It has high stability, anti-interference and high cost-effective, also has a powerful driving force, certified by ROHS, FCC, CE, The module can be connected to the microcontroller directly. So it is more convenient for user developing wireless products.

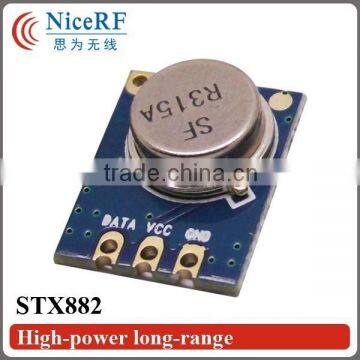

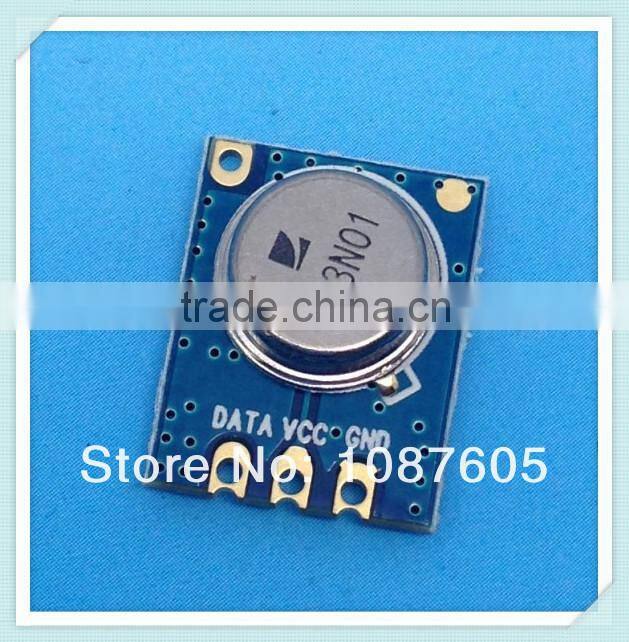

STX882 ASK Transmitter Module
STX882 is a low cost, small size, ultra-high-power, low harmonic ASK transmitter module. Has high stability and high cost, at 3.6V power to achieve 50mW, is currently on the market under the same voltage transmit power ASK transmitter module. The module can be connected to the microcontroller directly. So it is more convenient for user developing wireless products.

Suitable antenna

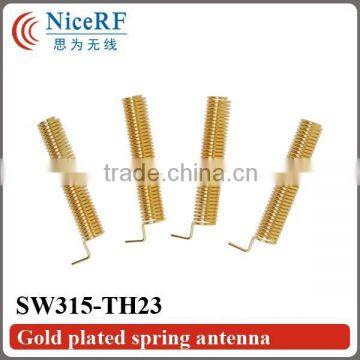

SW315-TH23 Gold plated spring antenna
SW315 - TH23 is a gold plated spring antenna. It is a dedicated antenna which is designed for a wireless communication system (315MHz).It has good VSWR, small size, ingenious structure, easy installation, stable performance, with good anti-vibration and aging ability.

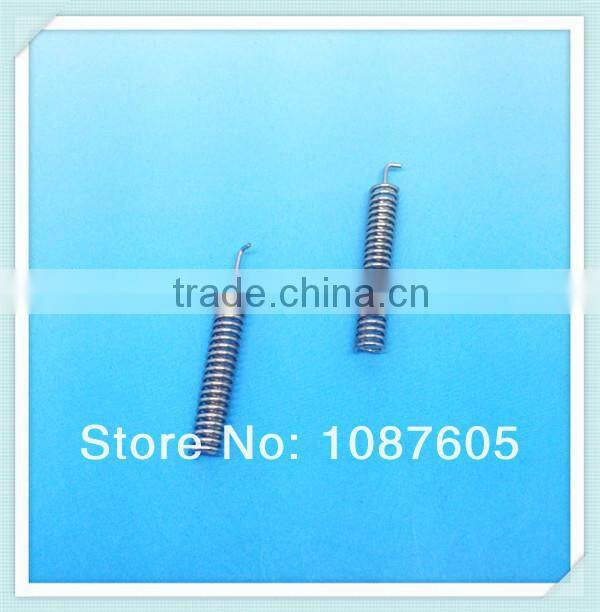

SW433-TH22 Gold plated spring antenna
SW433-TH22 is a gold plated spring antenna, It is a dedicated antenna which designed for a wireless communication system (433MHz).It has good VSWR, small size, ingenious structure, easy installation, stable performance, with good anti-vibration and aging ability.

Specification

 SRX882 Receiver

Supply Voltage 2.4 5 5.5 V
Operating Temperature Range -30   85 °c
Latency     20 ms @ 315MHZ
    9 ms @ 433@HZ
Current consumption
Consuming current   2.5   mA @ 315MHZ
  2.8   mA @ 433MHZ
  <2   uA @ CS=1 Or vacant
RF parameters
Frequency Range 433.82 433.92 434.02 MHZ @ 433MHZ
314.9 315 315.1 MHZ @ 315MHZ
Sensitivity   -110 -107 dBm @ 1.2Kbps
Air rate 0.1   9.6 kbps
Receiver bandwidth   200   KHz

 STX882 Transmitter

Parameter Min. Typ. Max Unit Conditions
Operation conditions
Supply Voltage 1.2 3 6 V
Operating Temperature Range -20 25 70 ℃
Current consumption
TX current   34   mA @3.3V,15dBm
Sleep Current   ≤0.01   uA @DATA As Low level
RF parameters
Frequency Range 433.82 433.92 434.02 MHZ @433MHZ
314.9 315 315.1 MHZ @315MHZ
RF power 12 13 13.5 dBm @2.4V
14 15 15.5 dBm @3V
19.5 20 20.5 dBm @5V
Air rate 0.1   9.6 Kbps



Features:
Frequency Range: 433/315 MHZ
ASK /OOK modulation mode
Super anti-power interference
Low-power sleep less than 1uA
Low self radiation
Small size
Frequency stability and reliability
Various international testing standards


Application:
Remote door
Wireless security alarm
Wireless industrial control
Wireless data transmission

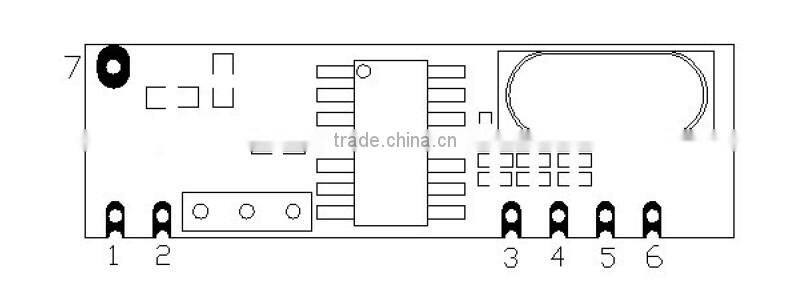

Pin configration of SRX882 receiver

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

Pin Number Pin Definitions Description
1 ANT Matching 50 ohm antenna
2 GND Connected to power ground
3 VCC Positive power supply
4 CS High level to enable the module, low level to enter sleep mode
5 DATA Data output pin
6 GND Connected to power ground
7 ANT Matching 50 ohm antenna

Pin configration of STX882 transmitter

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna



Pin Number Pin Definitions Description
1 ANT Connect with 50 ohm coaxial antenna
2 DATA Data input
3 VCC Positive power supply
4 GND Connected to power ground

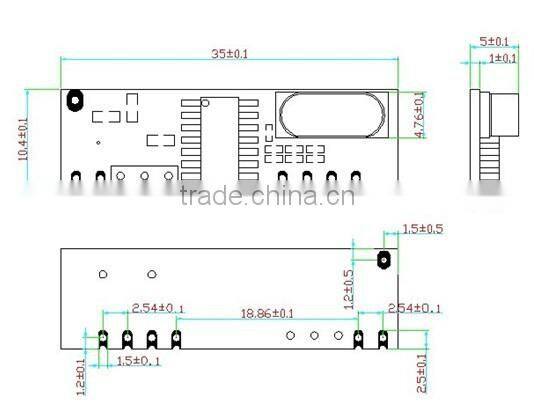

Mechanism dimension of SRX882 receiver

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

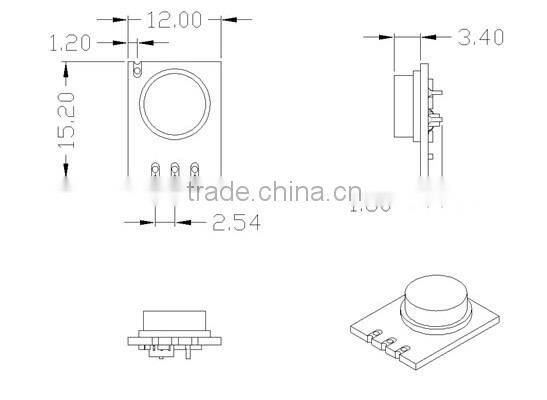

Mechanism dimension of STX882 transmitter

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

 NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

Packaging & Shipping

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

 NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna



Company Information

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

Our company is engaged in researching, developing, producing and selling IOT(internet of things) products.

We devoted ourselves on providing good RF modules, walkie talkie modules and integrated digital sensor modules.
Meanwhile, ODM and OEM projects are welcomed.
With more than 10 years experience of product design in RF and sensors, we have earned a good reputation among our customers.



Our Services

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

Delivery time
1.Sample order:1-3 days
2.Normal order:3-7 days
3.OEM/ODM Order:7-15 days

Warrenty
1.100% test low than 0.05% defective rate
2.Free technical support
MOQ
1.Sample Order: 2pcs/a pair
2.OEM Order: More Than 1000pcs
Aftersale Service
1.Give replacements if there is quality issue of the part in future order
2.Evaluate the customs risk and choose safest shipping company during different period
3.Fllow status from time to time till the goods arrive client's hand
4.NiceRF warranty does not apply to products purchased through third-party verdors



FAQ

NiceRF ASK Module Kit 433MHz 315 MHz Long Range 100m Wireless RF Module STX882 Transmitter SRX882 Receiver Spring Antenna

a) Why module can not communicate properly?
1) Check if the band, channel, rate, NET ID has set to the same;
2) Check if there is power connection error;
3) Check if the module is enabled (CS high);
4) Check if the antenna connection is not correct;
5) Check if the module is damaged.

b) Why transmission distance is not far as it should be?
1) Power supply ripple is too large;
2) The antenna types do not match, or not properly installed;
3) The surrounding environment is harsh, strong interference sources;
4) Surrounding co-channel interference;

c) Why receiving data incorrect?
1) Improper parameter settings;
2) Module data interface is bad.

d) Why should I use antennas?

The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.

e) What kind of USB bridge board should I use?

The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC.



Related Products

wireless data transceiver
vs
wireless network transceiver		 SV610 Module only Serial port TTL Yes 433/470/ 868/915 GFSK 100 mw
-1~+20dBm		 -121 2.8~6.0  < 5 uA 25 mA 95mA @ 20dBm 1.2~38.4  40 1400 26.8*16*2.4
SV611 With shielding case Serial port TTL Yes 433/470/ 868/915 GFSK 100 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  95mA @ 20dBm 1.2~38.4  40 1400 43.25*26.45*9.4
SNR611 Serial port 232       -1~+20dBm   4.5~5.5V(232)   32.7 Ma @ 232
  Serial port 485           4.5~5.5V(485)   34 mA @ 485
SV612 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 100 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  95mA @ 20dBm 1.2~38.4 40 1400 62.5*43.2*14.3
SNR612   Serial port 232       -1~+20dBm   4.5~5.5V(232)   32.7 mA @ 232
    Serial port 485           4.5~5.5V(485)   34 mA @ 485
SV613 Aluminium USB serial port Yes 433/470/ 868/915 GFSK 100 mw -121 4.5~5.5 < 5 uA 26 mA 95mA @ 20dBm 1.2~38.4 40 1400 62.5*43.2*14.3
SNR613 -1~+20dBm
SV614 Aluminium RS232 serial Yes 433/470/ 868/915 GFSK 100 mw -121 4.5~5.5 < 5 uA 33 mA 95mA @ 20dBm 1.2~38.4 40 1400 62.5*43.2*14.3
SNR614 -1~+20dBm
SV650 With shielding case Serial port TTL Yes 433/470/ 868/915 GFSK 500 mw -121 3.3~7.5 < 5 uA 25mA @ TTL 350 mA @ 27dBm 1.2~38.4 40 1400 38*20*4
SNR650 Serial port 485 20~27dBm 34 mA @ 485
SV651 With shielding case Serial port TTL Yes 433/470/ 868/915 GFSK 500 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  350 mA @ 27dBm 1.2~38.4 40 3000 50.4*39*7.6
SNR651 Serial port 232 20~27dBm 4.5~5.5V(232) 32.7 mA @ 232
  Serial port 485   4.5~5.5V(485) 34 mA @ 485
SV652 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 500 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  350 mA @ 27dBm 1.2~38.4 40 3000 62.5*43.2*14.3
SNR652 Serial port 232 20~27dBm 4.5~5.5V(232) 32.7 mA @ 232
  Serial port 485   4.5~5.5V(485) 34 mA @ 485
SV653 Aluminium USB serial port Yes 433/470/ 868/915 GFSK 500 mw -121 4.5~5.5 < 5 uA 26 mA 350 mA @ 27dBm 1.2~38.4 40 3000 62.5*43.2*14.3
SNR653 20~27dBm
SV654 Aluminium RS232 serial port Yes 433/470/ 868/915 GFSK 500 mw -121 4.5~5.5 < 5 uA 33 mA 350 mA @ 27dBm 1.2~38.4 40 3000 62.5*43.2*14.3
SNR654 20~27dBm
SV6202 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 2 W -121 4.5~6.5(TTL) < 5 uA 25 mA @ TTL  900 mA @ 33dBm 1.2~38.4 40 5000 62.5*43.2*14.3
SNR6202 Serial port 232 13~33dBm 4.5~5.5(232) 32.7 mA @ 232
  Serial port 485   4.5~5.5(485) 34 mA @ 485
SV6300 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 3 W -121 9~18 < 5 uA < 30 mA < 0.6 A 1.2~38.4 40 6000 93*84*26
SNR6300 Serial port 232 15~35dBm
  Serial port 485
SV6500 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 5 W -121 9~18 < 5 uA < 30 mA < 1.8 A 1.2~38.4 40 8000 93*84*26
SNR6500 Serial port 232 30~37dBm
  Serial port 485



Front-end transceiver RF4421 Module only SPI No 433/868/915 FSK   -105 2.2~3.8 0.3 uA 11 mA 22 mA @ 7dBm 115.2(digital mode) - 300 17*16.5*2
Customizable 256(Simulation Mode)
RF4431 Module only SPI No 433/868/915 FSK 20 mw -118 1.8~3.6  < 1 uA 18.5 mA 35 mA @ 13dBm 0.123~256  - 600 17*16.5*2
Customizable GFSK
  OOK
RF4432 Module only SPI No 433/868/915 FSK 100 mw -121 1.8~3.6  < 1 uA 18.5 mA 85 mA @ 20dBm 0.123~256  - 1400 17*16.5*2
Customizable GFSK
  OOK
RF4432PRO With shielding case SPI No 433/868/915 FSK 100 mw -121 1.8~3.6 < 1 uA 18.5 mA 85 mA @ 20dBm 0.123~256 - 1400 17.3*17*2.6
Customizable GFSK
  OOK
RF4432F27 With shielding case SPI No 433/868/915 FSK 500 mw -122 3.3~7.0  < 3 uA 21 mA 350 mA @ 27dBm 0.123~256 - 2500 38*20*4
Customizable GFSK
  OOK
RF4463PRO With shielding case SPI No 433/868/915 (4)FSK 100 mw -126 1.8~3.6  < 0.1uA 10.7 mA 85 mA @ 20dBm 0.123~1000 - 1800 17.3*17*2.6
Customizable (4)GFSK 13.5 mA
  OOK
  ASK
RF4463F30 With shielding case SPI No 433/868/915 (4)FSK 1 W -126 3.3~7.0  < 2 uA 10.7 mA 550 mA @ 30dBm 0.123~1000 - 3500 38*20*4
Customizable (4)GFSK 13.5 mA
  OOK
  ASK
RF1212 With shielding case SPI No 433/868/915 FSK 12.5 dBm -110 2.1~3.6 < 1 uA 3 mA 25 mA @ 10dBm 0.78~150(@FSK) - 600 17.3*17*2.6
Customizable OOK
RF2401 Module only SPI No 433/868/915 FSK  -20~+10 dBm -115 1.9~3.6 < 0.1 uA 7 mA 36 mA 1.5~72 - 400 13.56*13.8*2
Customizable



ASK Transmitter module STX882 Module only —— No 315/433 ASK 13dBm @ 2.4V - 1.2~6 < 0.01 uA — 34 mA @ 3.3V,15dBm 0.1~9.6 -   12*15.2*5.2
15dBm @ 3V
20dBm @ 5V
Ask Receiver module SRX882 Module only —— No 315/433 ASK - -110 2.4~5.5  < 2 uA 2.7mA @ 315MHz — 0.1~9.6 - 35*10.4*5



Type Spring antennas
Frequency band 433 MHz 490 MHz 868 MHz 915 MHz
Antenna SW433-TH32DN SW433-TH10 SW433-TH22 SW433-TH32 SW490-TH10 SW490-TH14 SW868-TH13 SW915-TH12
Material nickel-plated stainless Copper Golden-plated stainless Copper Copper Copper Copper Copper
VSWR <=1.5 <=1.8 <=1.5 <=1.5 <=1.8 <=1.8 <=1.5 <=1.5
Gain(dBi) 2.15 2.15 2.15 2.15 2.15 2.15 2.15 2.15
Height(mm) 32 10 22 32 10 14 13 12

Type Rubber  antennas
Frequency  433 MHz
Antenna SW433-ZT28 SW433-ZT100 SW433-WT36 SW433-WT100 SW433-ZD115 SW433-ZB165 SW433-ZT100DN SW433-WT100DN
Material Golden-plated Golden-plated Golden-plated Golden-plated Golden-plated Golden-plated Nickel-plated Nickel-plated
VSWR <=2.0 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 2.15 3 2.5 3 2.15 3 3 3
Interface form SMA(Build-in) SMA(Build-in) SMA-JW SMA-JW SMA SMA SMA SMA-JW
Height(mm) 28 100 45 100 115 160 100 100

Type Rubber  antennas
Frequency  409 MHz 450 MHz 470 MHz 490 MHz 868 MHz 915 MHz
Antenna  SW409-ZT100 SW450-ZT100DN SW450-WT100DN SW470-ZT100 SW490-ZT100 SW868-ZT100 SW868-WT100 SW915-ZT100
Material Golden-plated Nickel-plated Nickel-plated Golden-plated Golden-plated Golden-plated Golden-plated Golden-plated
VSWR <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 3 3 2.5 3 3 3 3 3
Interface SMA SMA SMA-JW SMA SMA SMA SMA-JW SMA
Height(mm) 100 100 100 100 100 100 100 100

Type Rubber antenna
Frequency  915 MHz 880~960NHz 2400 MHz
Antenna SW915-WT100  SWGPRS-ZT186 SW2400-ZT48  SW2400-WT106 SW2400-ZD115
Material Golden-plated Golden-plated
VSWR <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 3 3 2.5 3 3
Interface  SMA-JW SMA SMA/J SMA/JW SMA
Height(mm) 100 186 48 106 115

Type Sucker antenna Yagi antenna
Frequency  433 MHz 490 MHz 868/915 MHz 2400 MHz 433MHz
Antenna  SW433-XPXM SW433-XP-WP SW433-XP-MAX SW490-XP1M SW868-XP1M
SW915-XP1M		 SW2400-XP1M SW433-BM-11DB
VSWR <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 3 2.15 5.5 3 3 7 11
Interface  SMA-J MCX/J SMA-JW SMA-J SMA-J SMA-J or customize (TNC Male)/SMA/BNC
Height(mm) 126 111 1000 126 126 220 86
Lead wire(M) 1~6m to choose 3m(customizable) 3m/5m 1m(customizable) 1m(customizable) 1m(customizable)



Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
NiceRF Wireless (Shenzhen) Technology Co., Ltd.
Business Type
Manufacturer, Trading Company, Distributor/Wholesaler
Year Established
2011
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches

Recommended Categories

Explore top categories and find suppliers for your specific needs
Resistor & Potentiometer Resistor & Potentiometer
Inductor Inductor
Resonator Resonator
Other Passive Components Other Passive Components
