Help CenterM8 MULTI-PURPOSE MACHINE
Related Products
Specifications
Multi-purpose machine1.Auto feed for X,Y axis
2.500W brushless motor milling head
3.High power with large cutting capacity
M8 Multi-purpose Machine
Feature for M8 Multi-purpose Machine:
1. Used for cutting, drilling and milling
2. Cutting all thread pitchs only adjust the gear box handles,no more need changing gears
3. Auto feed for both X and Y axis
4. 500W brushless motor for milling head
Specification:
Cutting (Lathe) | |
Swing over bed |
280 mm |
Distance between centers |
750 mm |
Hole through spindle |
25 mm |
Spindle taper |
MT4 |
Tailstock taper |
MT2 |
Cross slide travel |
155 mm |
Compound travel |
80 mm |
Thread range Metric |
0.25-2.5 mm ( 14 threads pitches) |
Imperial |
12-96 TPI ( 9 threads pitches) |
Motor output power |
735 W |
Spindle speed (6 steps) |
125-2000 rpm |
Overall Size (LxWxH) |
1500x750x630 mm |
Packing Size (LxWxH) |
1550x890x670 mm |
Weight (Net/Gross) |
200/240 kg |
Drilling & Milling | |
Drilling capacity |
16 mm |
Headstock travel (Z) |
180 mm |
Spindle taper |
MT3 or R8 |
Column tilting angle |
25°L, 45°R |
Motor(brushless motor) |
500 W |
Spindle speed |
100-2500 rpm±10% |
Overall dimension (LxWxH) |
380x360x850 mm |
Packing Size (LxWxH) |
760x380x460 mm |
Weight (Net/Gross) |
30/42 kg |
Standard Accessory:
-130mm 3-jaw Chuck
-Dead centers MT2
-Wrench set
-Oil Can

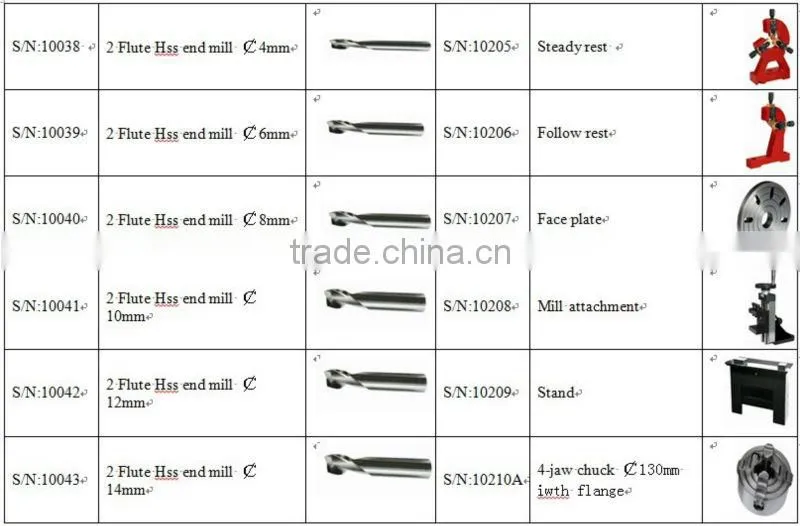

Optional Accessory:
