SC2/350 MINI LATHE MACHINE

Name: SC2/350 MINI LATHE MACHINE
Brand: MINI LATHE MACHINE
SKU: 115321955
Availability: InStock

US$ 500 - 600 MOQ: 10 Sets

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Shanghai Zhong Jing Imp. & Exp. Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 180mm

Place of Origin Shanghai, China

Brand Name MINI LATHE MACHINE

Model Number SC2/350

Voltage 110/220V

Power(W) 500W

Dimension(L*W*H) 700x300x300mm

Weight 44kg

Certification CE

After-sales Service Provided Overseas service center available

Specifications

Mini Lathe:1.UPGRADED VERSION OF C2
2.BRUSHLESS MOTOR
3.IMPROVED PC BOARD
4.GREATER DURABILITY
5.HIGHER EFFICIENCY

Product Description

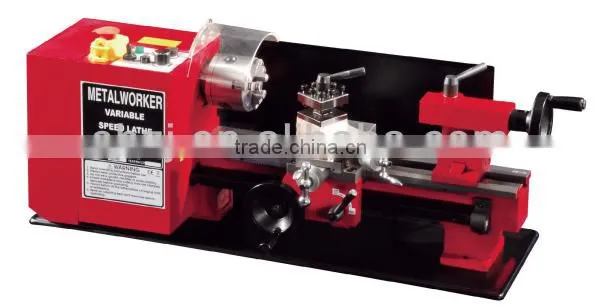

SC2/350 Mini Lathe Machine

Feature:

1.Constructed with cast iron giving great rigidity

2.Precision Vee bed with ground slide ways

3.High torque brushless DC 500W motor

4. Fully featured saddle and carriage assembly including powered lead screw

5.Supplied with, 80mm 3 jaw chuck,, 2MT centre, change wheel set, wrench set

Specification:

Swing over bed	180 mm
Distance between centers	350 mm
Hole through spindle	20 mm
Spindle taper	MT3
Tailstock taper	MT2
Cross slide travel	65 mm
Compound travel	55 mm
Range of threads Metric version	0.4-2.0 mm(10 thread pitches)
Imperial version	12-52 TPI(18 thread pitches)
Motor output power(Brushless motor)	500 W
Variable speed	100-2500 rpm+10%
Overall dimension	800300300 mm
Packing size (LWH)	900420390 mm
Weight(Net&Gross)	50/55 kg
