Home > Products > MINI MACHINE TOOLS > SC8-pro mini lathe machine

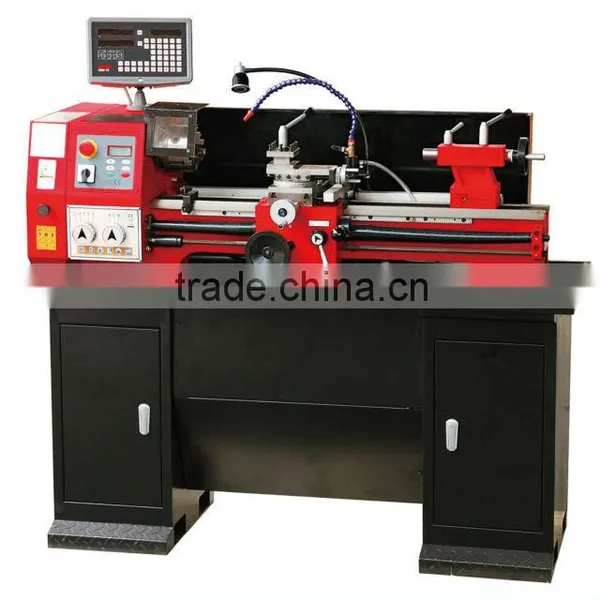

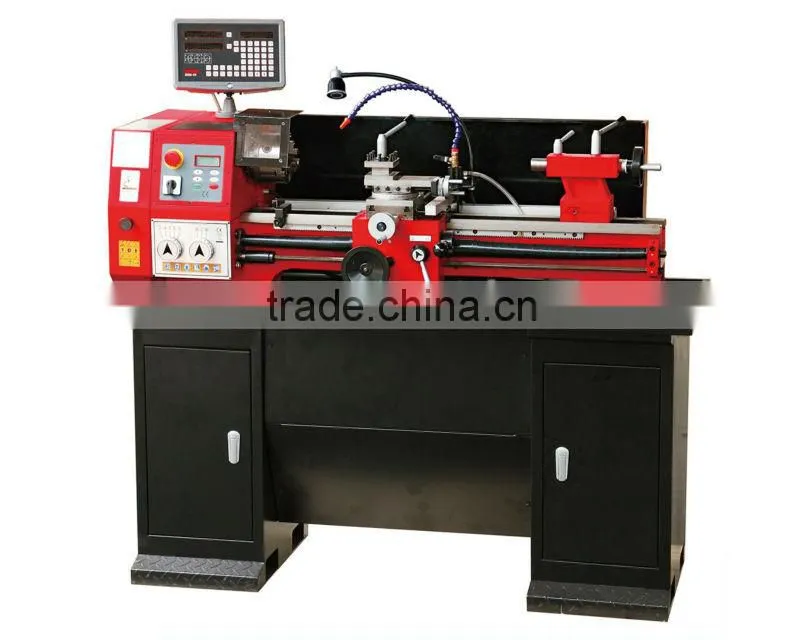

SC8-pro mini lathe machine
- 200 Set / Sets per Month
- Shanghai
Product Details
Condition: | New | Type: | Turning Center | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 280mm | Place of Origin: | Shanghai, China |
Brand Name: | mini lathe machine | Model Number: | SC8-Pro | Voltage: | 110/230V |
Power(W): | 1500W | Dimension(L*W*H): | 1350x750x630mm | Weight: | 190kg |
Certification: | CE | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
Mini Lathe1.2 Axis auto feeding

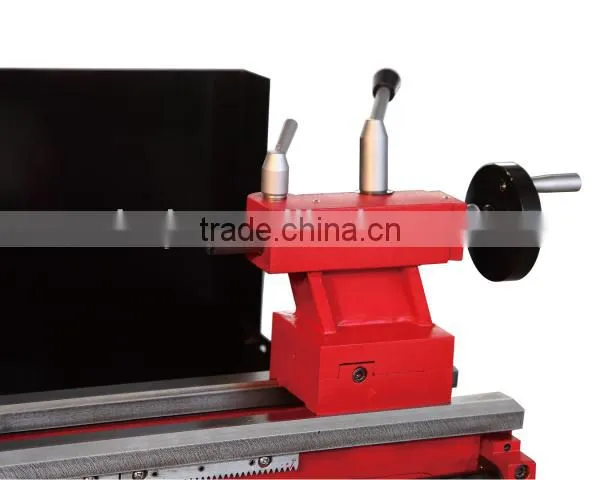

2.Hardened bed way, quick lock tail stock
3.With coolant pump,new stand,lamp and 2 axis DRO
SC8 Mini Lathe Machine
Feature:
1.1500W brushless motor
2.Overrunning clutch

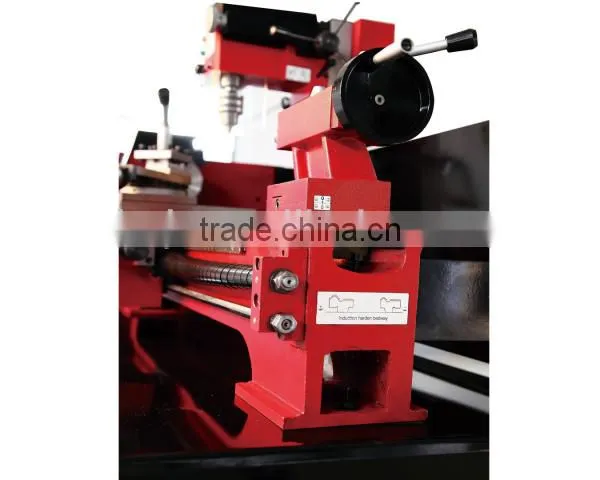

3. Hardened bed way
4.High power with large cutting capacity
5.Auto feeding on both X, Y axis
6. LED working lamp
7.2-axis digital readout

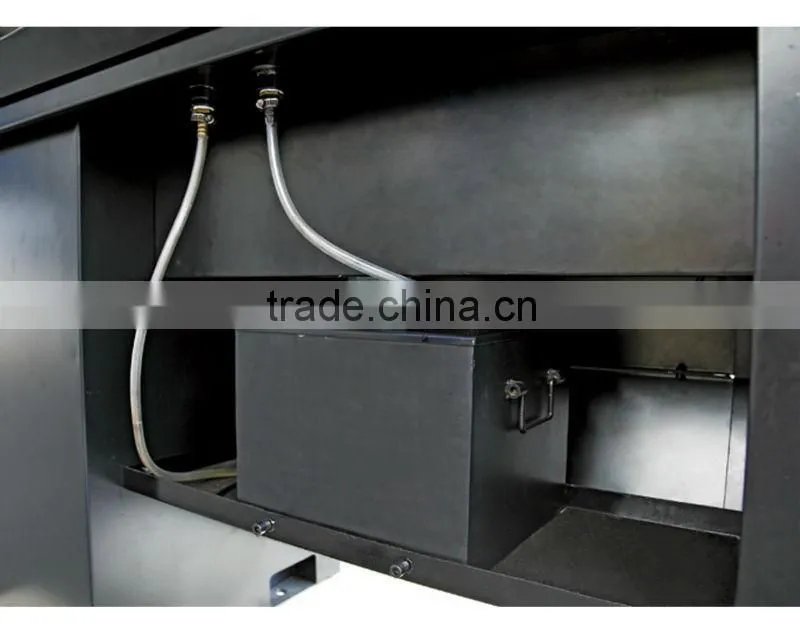

8. With coolant pump
9. Cutting all thread pitchs only adjust the gear box handles, no more need changing gears
Specification:
Swing over bed | 280 mm |
Distance between centers model 600 | 600 mm |
Model 750 | 750mm |
Hole through spindle | 25 mm |
Spindle taper | MT4 |
Tailstock taper | MT2 |
Cross slide travel | 155 mm |
Compound travel | 80 mm |
Range of threads Metric version | 0.25-2.5 mm(14thread pitches) |
Imperial version | 12-96 TPI(9 thread pitches) |
Motor output power(brushless motor) | 1500 W |
Spindle speed (variable speed) | 100-2000 rpm+10% |
Overall dimension Model 600 | 1350x750x630 mm |
Model 750 | 1500x750x630 mm |
Packing size (LxWxH) Model 600 | 1400x890x670 mm |
Model 750 | 1550x890x670 mm |
Weight(Net&Gross) Model 600 | 190/230 kg |
Model 750 | 200/240 kg |
Standard accessory:
-130mm 3-jaw chuck
-MT2 center
-Wrench set
-Oil can

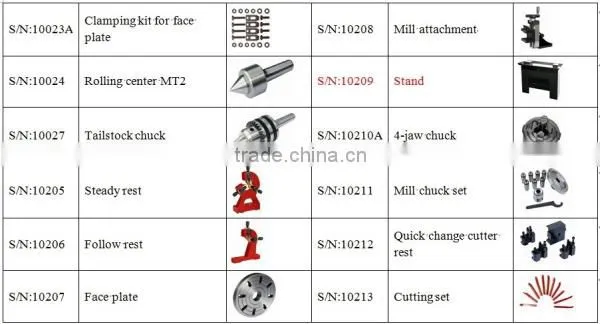

Optional accessory:
