Help CenterC2A/300 Mini Lathe Machine
Related Products
Specifications
Mini Lathe:1.Safety Switch2.Variable speed
3.Four position turret post
4.Complete set of changing gear
5.High accuracy

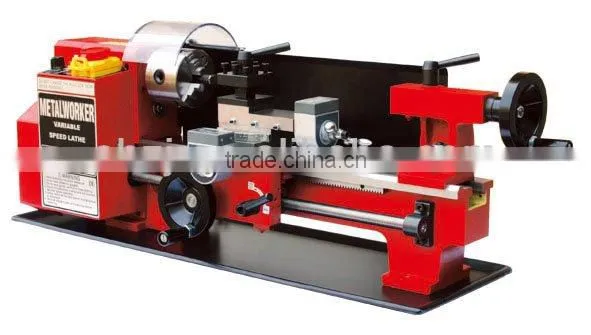

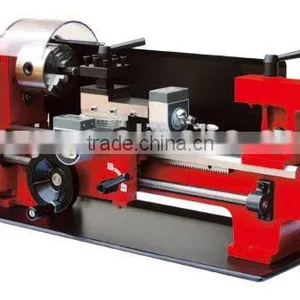

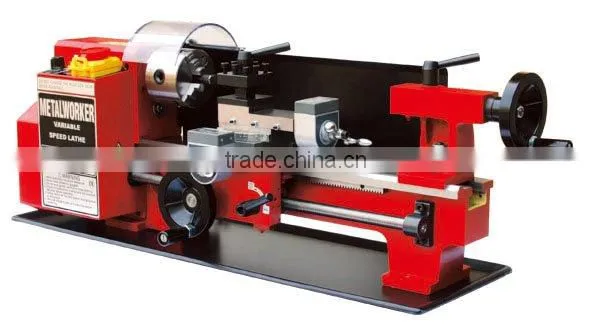

C2A/300 Mini Lathe
Feature:
1. With digital readout for cutting depth

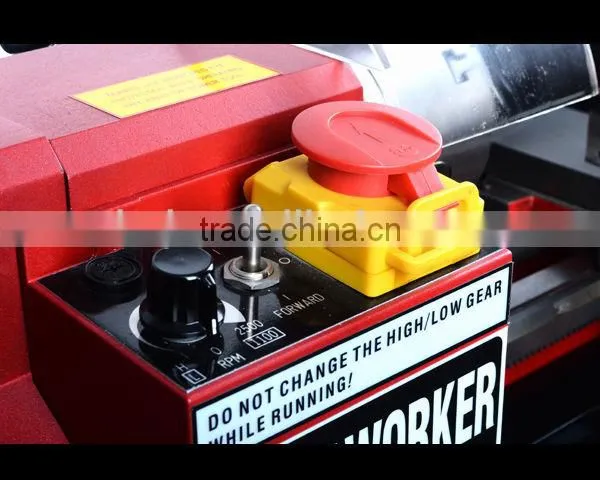

2.Safety switch

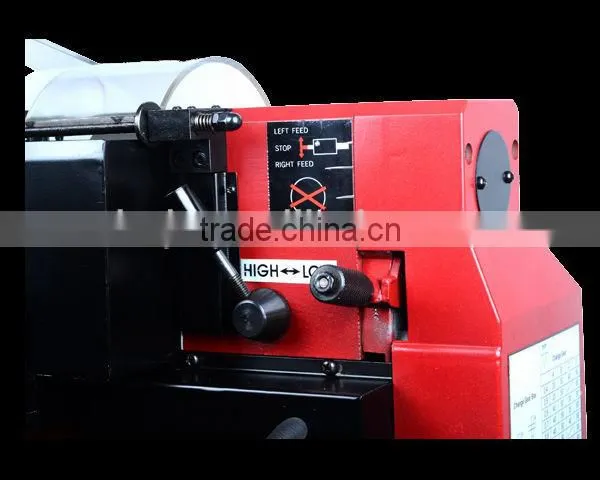

3.Variable speed

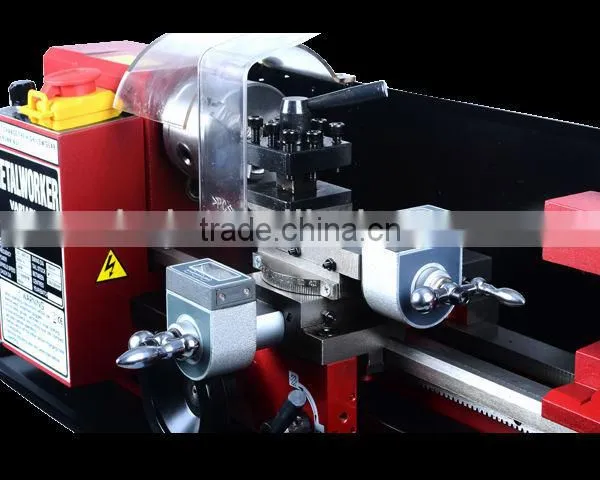

4.Four position turret post
5.High accuracy
Specification:
Model |
C2 (MODEL 300) |
Swing over bed |
180mm |
Swing over saddle |
110mm |
Distance between centers |
300mm |
Hole through spindle |
20mm |
Cross slide travel |
65mm |
Spindle taper |
MT3 |
Tailstock taper |
MT2 |
Spindle speed Low range |
100-1100rpm±10% |
High range |
100-2500rpm±10% |
Motor output power |
250W |
Range of threads Metric version |
0.4-2.0mm (10 thread pitches) |
Imperial version |
12-52 TPI (8 thread pitches) |
Overall dimension (LxWxH) |
700 x 300 x 300mm |
Packing size (LxWxH) |
790 x 360 x 390mm |
Weight(Net/Gross) |
37/40kg |
Standard accessory:
-80mm 3-jaw Chuck
-MT2 Center
-Change gear set
-Wrench set
-Oil can

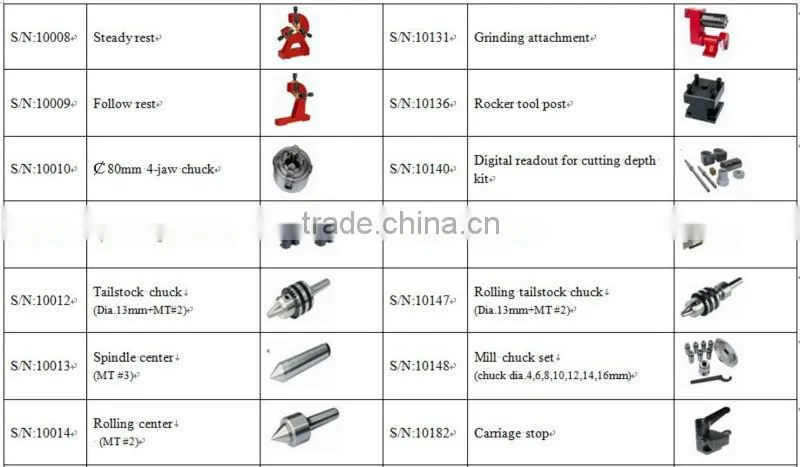

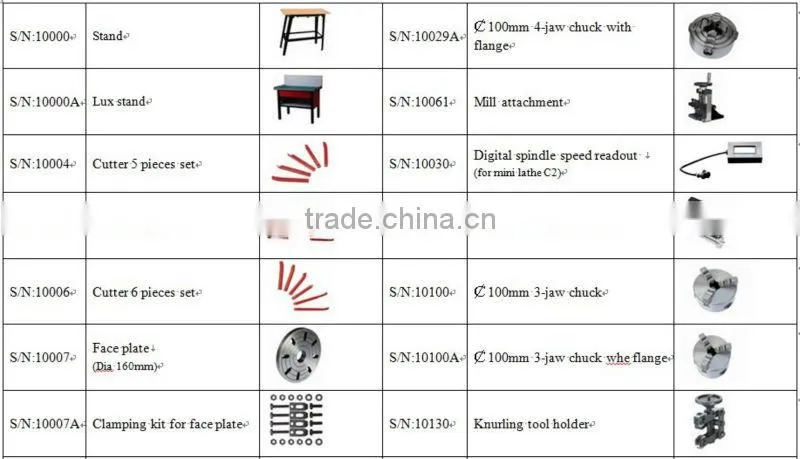

Optional accessory:
