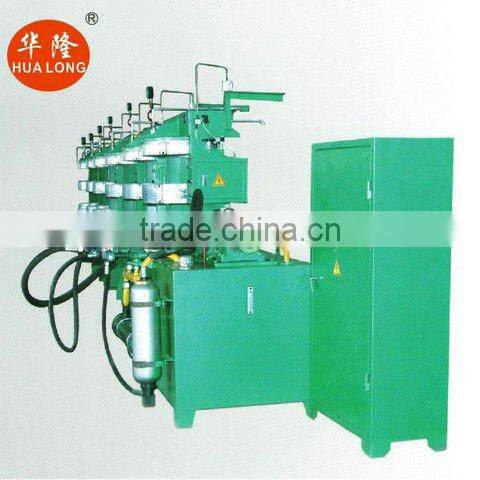

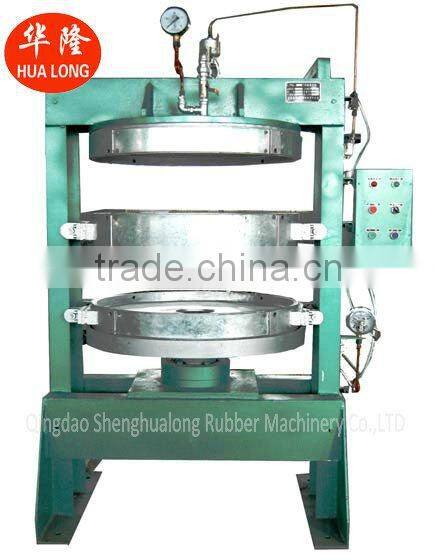

Used Tire Vulcanizing Machine Machine Tire Machine

Specifications

The overall structure

(l) the body for fixed frame, compact structure, rigid good, installation convenient transportation.

(2) when combining a model on vertical movement up and down to die parts only about before, depend on the guide roller and roll. With eccentric wheel cover, to moderate accuracy can adjust. Between rollers and guide basically no gap and can keep the high accuracy and to repeat precision.

(3) although the hydraulic vulcanizing machine is double cavity, but from stress perspective, just two single-mode vulcanizing press linked. Fits the mold force rely on hydraulic cylinder force in mould centre with two side frame and acquired the elastic spread symmetrical, mould strength evenly circumference direction 5. In the whole operation process can always keep sulfide workstation axis vertical, no horns turned theory of sport.

(4) due to close mold force decided to shut the mould hydraulic oil cylinder, not affected by environmental temperature or working temperature effect, can keep constant close mold force.

(5) movement moves its sliding parts surface or roll surface no law to load, wastage, can keep the long operation precision.

(6) due to improved mechanical structure and thermal insulation layer of radiant heat loss than mechanical design, vulcanizing machine reduce 30 ~ 50%.

(7) with switching mode simplify, combining a model action reduced the time, improve the 30% machine productivity.

(8) because no upper die sports, to keep the flip adjustabie mode of precision and prolong the service life of advantage.

(9) due to the elimination of the whole worm gear reducer, gear, gear and size of crank connecting moving parts and large parts, such as reducing maintenance workload.

(10) due to the weight, and the machine when combining a model gravity axis in the offset, and not based processing machine can greatly simplified.

(11) machine movement precision is high.

Tyre vulcanizing workshop
