Specifications

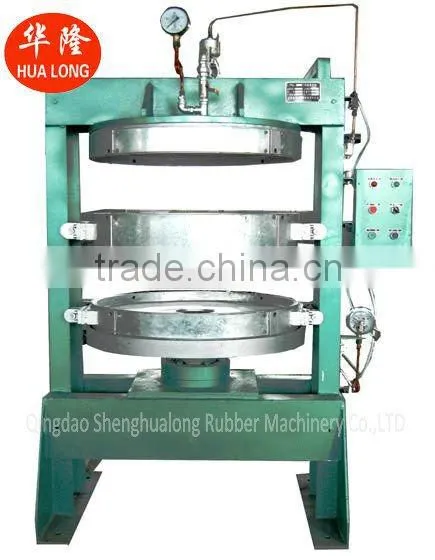

We manufacture types of plate vulcanizing machine, and can customize according to the customer.tire vulcanizing machine
The overall structure
(l) the body for fixed frame, compact structure, rigid good, installation convenient transportation.
(2) when combining a model on vertical movement up and down to die parts only about before, depend on the guide roller and roll. With eccentric wheel cover, to moderate accuracy can adjust. Between rollers and guide basically no gap and can keep the high accuracy and to repeat precision.
(3) although the hydraulic vulcanizing machine is double cavity, but from stress perspective, just two single-mode vulcanizing press linked. Fits the mold force rely on hydraulic cylinder force in mould centre with two side frame and acquired the elastic spread symmetrical, mould strength evenly circumference direction 5. In the whole operation process can always keep sulfide workstation axis vertical, no horns turned theory of sport.
(4) due to close mold force decided to shut the mould hydraulic oil cylinder, not affected by environmental temperature or working temperature effect, can keep constant close mold force.
(5) movement moves its sliding parts surface or roll surface no law to load, wastage, can keep the long operation precision.
(6) due to improved mechanical structure and thermal insulation layer of radiant heat loss than mechanical design, vulcanizing machine reduce 30 ~ 50%.
(7) with switching mode simplify, combining a model action reduced the time, improve the 30% machine productivity.
(8) because no upper die sports, to keep the flip adjustabie mode of precision and prolong the service life of advantage.
(9) due to the elimination of the whole worm gear reducer, gear, gear and size of crank connecting moving parts and large parts, such as reducing maintenance workload.
(10) due to the weight, and the machine when combining a model gravity axis in the offset, and not based processing machine can greatly simplified.
(11) machine movement precision is high.
Type |

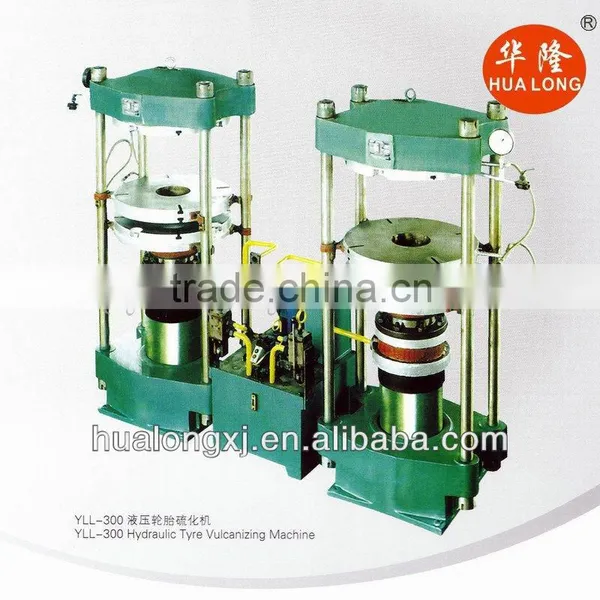

YLL-300 |
YLL-600 |
YLL-1000 |
YLL-1200 |
YDLS-100T |
Working layer number |
3 |
3 |
2 |
2 |
1 |
Outside diameter of plate(mm) |
560 |
800 |
830 |
950 |
|
Total pressure(KN) |
300 |
600 |
1000 |
1200 |
1000 |
Plunger diameter(mm) |
180 |
250 |
300 |
320 |
280 |
High pressure(Mpa) |
12 |
13 |
14 |
14 |
14 |
Low pressure(Mpa) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Pressure in bladder(Mpa) |
1.5 |
1.5 |
2.1 |
2.1 |
2.1 |
Steam working pressure(Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Size(l×w×h)mm |
760×560×2400 |
1030×800×2750 |
1070×830×3100 |
1150×950×3220 |
1000×800×2180 |
Type |
YLL-1400 |
YLL-1600 |
YLL-2000 |
YLL-2600 |
YLL-3000 |
Working layer number |
2 |
2 |
2 |
2 |
2 |
Outside diameter of plate(mm) |
1050 |
1200 |
1320 |
1400 |
1460 |
Total pressure(KN) |
1400 |
1600 |
2000 |
2600 |
3000 |
Plunger diameter(mm) |
360 |
380 |
450 |
500 |
530 |
High pressure(Mpa) |
14 |
14 |
13 |
13 |
14 |
Low pressure(Mpa) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Pressure in bladder(Mpa) |
2.1 |
2.1 |
2.1 |
2.1 |
2.1 |
Steam working pressure(Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Size(l×w×h)mm |
1270×1050×3200 |
1340×1200×3590 |
1610×1320×3900 |
1680×1400×4120 |
1780×1460×4250 |
Tyre vulcanizing workshop
Processing equipment
rubber technology exhibition
Company Info
Qingdao Shenghualong Rubber Machinery Co., Ltd is the biggest and best rubber machinery factory in Qingdao,China. As one of main manufacturers engaging on manufacturing rubber machinery in Qingdao Area, taking "Product quality first and client's credit standing uppermost" as corporate faith, the company strictly carries out inner management, wins markets depending on high-quality products and satisfies client's demands with lower price, excellent after-sale service and full varieties. Therefore, it has been appraised as "Qingdao Municipal Advanced Unit on Both Material & Spiritual Civilizations Constructing" for successive years and "Contract-stressing and Promise-keeping Unit" by Qingdao city for successive thirty years.
The company adopting advanced manufacturing technics and detection instruments, manufacture waste tyre recycling machienry rubber powder production line, reclaimed rubber machinery, tyre machinery, rubber vulcanizing machine, rubber extruder, rubber cooling line, rubber refining machinery, rubber strainer etc. Products are exported to India, Russia, the united Arab emirates, Iran, Egypt, the United States, Mexico, Brazil, Turkey, Indonesia, Malaysia, etc. All over the world.
