tire machine inner tyre vulcanizing machineWe are professional manufacturer, the rubber machinery.
tire machine inner tyre vulcanizing machine
We manufacture various types and styles and specification of inner tire vulcanizing machine. If you are a tire manufacturer, please contact us, we will provide the most cost-effective equipment.
Inner tire vulcanizing machine mainly with inner tire for sulfide. Inner tire vulcanizing machin with plate frame structure, adopt crank, the slider, connecting rod, and thus has compound institutions compact in structure, low failure rate and safe and reliable characteristic; Electrical adopting PLC control, maintenance, repair and change process convenient. Vulcanization time and vulcanization end time users can set automatically.
|

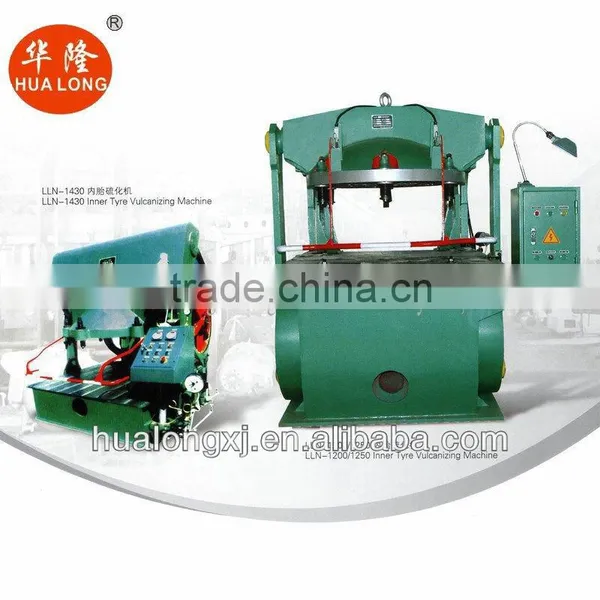

Type
Technical parameter |
LLN-1200 |
LLN-1250 |
LLN-1430 |
Total pressure(MN) |
0.5 |
0.55 |
0.85 |
Max Diameter of Vulcanized Model |
1180 |
1250 |
1300 |
Max Height of Vulcanized Model |
360 |
420 |
450 |
Motor power/revolution |
5.5kw/960rpm |
5.5kw/960rpm |
5.5kw/960rpm |
Steam Pressure(Mpa) |
0.7 |
0.7 |
0.7 |
Air Pressure (Mpa) |
0.6 |
0.6 |
0.6 |
Inflating pressure of inner tube(Mpa) |
0.7 |
0.7 |
0.7 |
Period of start-up and close model(s) |
5 |
5.7 |
9.65 |
Size(length×width×height)mm |
1660×1900×1650 |
1770×2200×1850 |
2710×2210×2060 |

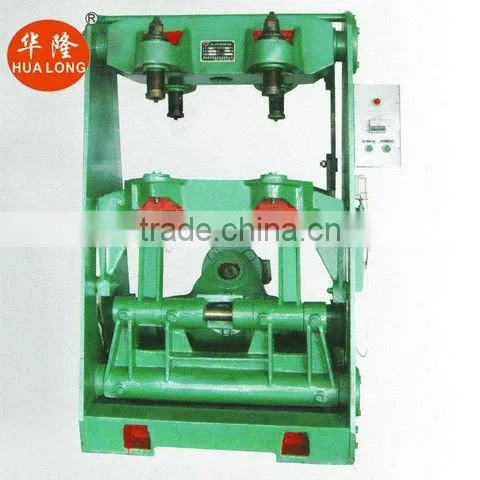

Electric inner tire vulcanizing machine
DL-25T
Name |
Technical parameter |
Total pressure(KN) |
250 |
Die Open Angle |
45 |
Pressure of Air Chamber(Mpa) |
1.5 |
Steam working pressure(Mpa) |
0.7 |
Motor power(KW) |
3 |
Size(lengt×width×height)mm |
1150×1040×1520 |

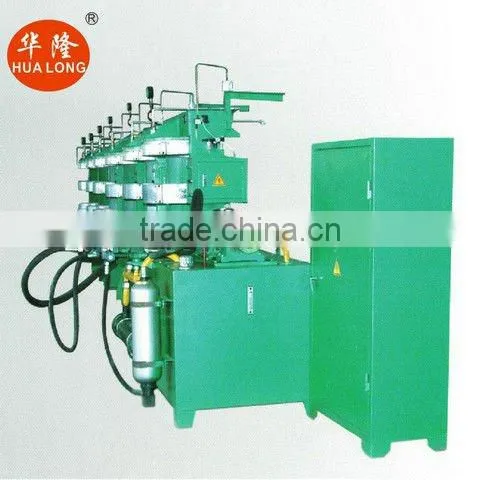

Hydraulic double inner tire vulcanizing machine
YSNLJ-20T
Name |
Technical parameter |
T Die pressure |
20 |
Die open distance(mm) |
295 |
Working layer numbers |
2 |
Die of time(s) |
≤4.5 |
Hot plate working diameter(mm) |
735 |
Steam pressure Mpa |
0.6-0.8 |
Hydraulic working pressure Mpa |
15.4 |
Mainframe size(mm) |
1280×900×1800 |
Hydraulic pump size(mm) |
1500×1050×1160 |
