Specifications
1.the type of this tyre machine is column2.it is used for rubber tyres
3.we can sure the quality.

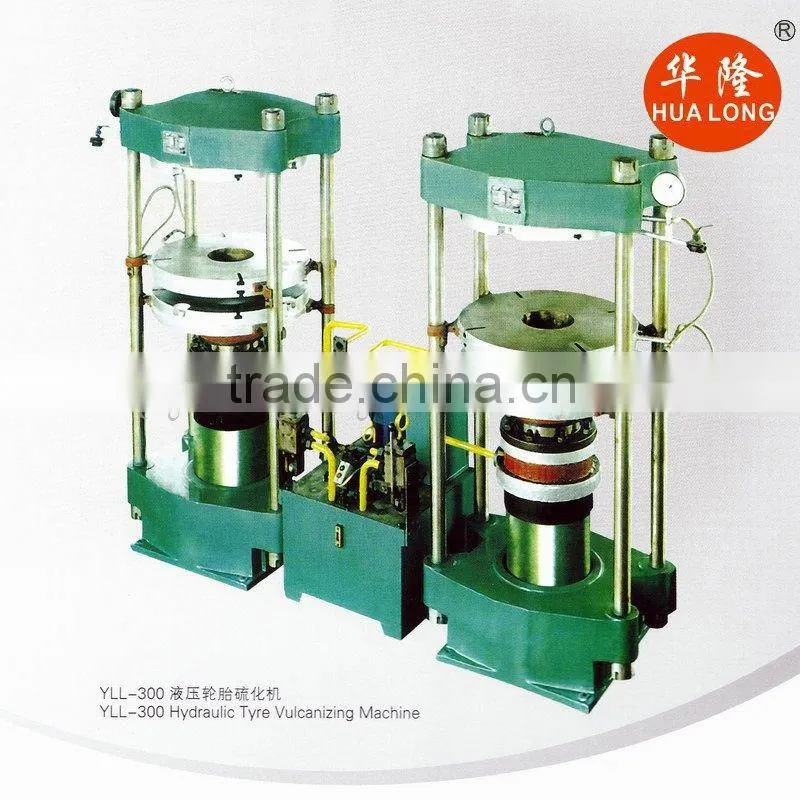

this rubber machine is mainly used for vulcanization of all steel heavy-duty tires.it is skillful manufacture.
The curing press mainly works for the vulcanization of all-steel heavy-duty tires. And also the press can work for semi-radial tires or nylon bias tires with one set of additional post cure inflator. The machine is B-type side link. Which consists of main machinecenteal mechanism, mechanic claw, steam dome, segmented mould controler, tyre stripping machine, unloader, cooling roll way, driving water piping, steam piping, force measure device, lubricating system, electrical conteol system, compressed air piping, safety device, top link device etc.
Covering more than 50,000 square meters, including 32,000 square meters building area, our company now has capital assets of USD12,500,000, modernized standard workshop, and manufacturing and checkout equipment.
TYPE |
YLL-300 |
YLL-600 |
YLL-1000 |
YLL-1200 |
YLL-1400 |
Working layer number |
3 |
3 |
2 |
2 |
2 |
Outside diameter of plate (mm) |
560 |
800 |
830 |
950 |
1050 |
Total pressure (KN) |
300 |
600 |
1000 |
1200 |
1400 |
Plunger diameter (mm) |
180 |
250 |
300 |
320 |
280 |
High pressure (Mpa) |
12 |
13 |
14 |
14 |
14 |
Low pressure (Mpa) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Pressure in bladder (Mpa) |
1.5 |
1.5 |
2.1 |
2.1 |
2.1 |
Steam working pressure (Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Size L*W*H |
760*560*2400 |
1030*800*2750 |
1070*830*3100 |
1150*950*3220 |
1270*1050*3200 |
TYPE |
YLL-1600 |
YLL-2000 |
YLL-2600 |
YLL-3000 |
Working layer number |
2 |
2 |
2 |
2 |
Outside diameter of plate (mm) |
1200 |
1320 |
1400 |
1460 |
Total pressure (KN) |
1600 |
2000 |
2600 |
3000 |
Plunger diameter (mm) |
380 |
450 |
500 |
530 |
High pressure (Mpa) |
14 |
13 |
13 |
14 |
Low pressure (Mpa) |
1.5 |
1.5 |
1.5 |
1.5 |
Pressure in bladder (Mpa) |
2.1 |
2.1 |
2.1 |
2.1 |
Steam working pressure (Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Size L*W*H |
1340*1200*3590 |
1610*1320*3900 |
1680*1400*4120 |
1780*1460*4250 |
