Home > Products > Printing machine > Manufacture Flexographic printing machine Quality Choice
Manufacture Flexographic printing machine Quality Choice
- 20 Set / Sets per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A
Product Details
Condition: | New | Plate Type: | Letterpress | Place of Origin: | Zhejiang, China |
Brand Name: | Future | Model Number: | FQ - PT | Usage: | Bill Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer |
Automatic Grade: | Automatic | Voltage: | 380 V | Gross Power: | 18 - 20 Kw |
Dimensions(L*W*H): | 4.8 * 1.8 * 2.2 | Weight: | 5000 kg | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

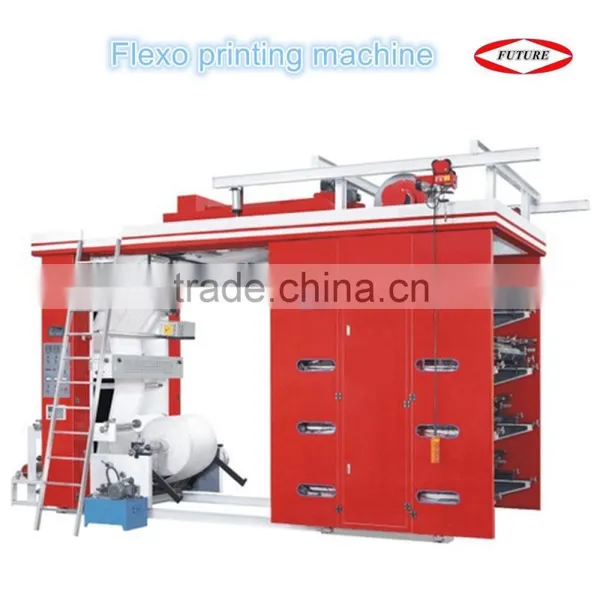

Manufacture Flexographic printing machine
Main Characteristic:
1. The whole machine adopts microcomputer control system run twice as fast, spindle gears,belt transfer kinetic energy , the printed product after high precision, low mechanical noise operation, fast, slow wear, simple operation, soft start, high accurate.2. The use of textured roller pass ink, ink evenly. Printed products distinct layering, three-dimensional sense.
2. The use of textured roller pass ink, ink evenly. Printed products distinct layering, three-dimensional sense.
3. With the precise counter can be set to printing the number or length,automatic shut down when without the material.
4. The pneumatic printing rollers, automatic mixing ink after lifting, ensure print ink roller wet.
5. The use of closed-loop drying device, pneumatic top oven, wear material becomes more convenient and safe. Three heating device: top of the loop drying, replica drying system with high-speed operation, according to the different printing products to adjust the temperature with fans to achieve high-speed printing while drying.
6. The Host equipped with acceleration and deceleration device, stable operation, applicable to different printing speeds.
7. The roller base and shelves equipped with jog and stop buttons, easy and safety to operate the machine.
8. The pneumatic roller traction, traction material easy and convenient.
9. The machine rollers balance test done,chrome-plated steel roller.
10.Closed type calibration device, vertical alignment, gear adjustment device, calibration, operation more safe and simple.
11.EPC correct simulation systems, quickly correcting the position of the material than the ordinary correction, faster and tidy.
Scope of application:
This type of printing machine suitable for nonwoven,fabric,clothes and so on material.
Device technical parameter | ||||||
Type | Printing color | Printing width (mm) | Printing length (mm) | The speed (m/min) | Thickness of plate (mm) | The dimension of machine L*W*H (m) |
FQ-PT-2600 | 2 | 560 | 300-1200 | 5-100 | 2.28 | 2.3 * 1.6 * 2.2 |
FQ-PT-2800 | 760 | 2.3 * 1.8 * 2.2 | ||||
FQ-PT-21000 | 960 | 2.3 * 2.0 * 2.2 | ||||
FQ-PT-21200 | 1160 | 2.3 * 2.2 * 2.2 | ||||
FQ-PT-4600 | 4 | 560 | 4.8 * 1.6 * 2.2 | |||
FQ-PT-4800 | 760 | 4.8 * 1.8 * 2.2 | ||||
FQ-PT-41000 | 960 | 4.8 * 2.0 * 2.2 | ||||
FQ-PT-41200 | 1160 | 4.8 * 2.2 * 2.2 | ||||
FQ-PT-6600 | 6 | 560 | 4.8 * 1.6 * 2.6 | |||
FQ-PT-6800 | 760 | 4.8 * 1.8 * 2.6 | ||||
FQ-PT-61000 | 960 | 4.8 * 2.0 * 2.6 | ||||
FQ-PT-61200 | 1160 | 4.8 * 2.2 * 2.6 | ||||
FQ-PT-8600 | 8 | 560 | 5.5 * 1.6 * 3.0 | |||
FQ-PT-8800 | 760 | 5.5 * 1.8 * 3.0 | ||||
FQ-PT-81000 | 960 | 5.5 * 2.0 * 3.0 | ||||
FQ-PT-81200 | 1160 | 5.5 * 2.2 * 3.0 |
Hangzhou Future Machinery & Technology Co., Ltd.
We are profession manufacturer filter production line,bag-making production line,polyurethane machine and cross cutting machine.We also custom the assembly production line and other machines for our customers. We welcome your company visit our factory view the machines quality.
