Help CenterFlexography Printing Press
Related Products
Specifications
1: high accuracy2: CE certification
3: good quality
Application:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producting paper packing bag fro food, supermarket handbag, vest bag and clothes.
PERFORMANCE AND FEATURES:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control,magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft.
| TYPE | YT-4600 | YT-4800 | YT-41000 |
| Max.effective printing width | 560MM | 760MM | 960MM |
| Max. web width | 600MM | 800mm | |
| Max.printing speed | 50M/MIN | 50m/min |
|
| Max. Mechanical speed | 60m/min | 60m/min |
|
| Max. diameter of roll material | φ450mm | φ450mm | φ450mm |
| internal diameter of roll core | φ 76mm | φ 76mm | φ 76mm |
| range of repeat printing length | 191-914mm | 191-914mm | 191-914mm |
| accuracy of registration | ±0.5mm | ±0.5mm | ±0.5mm |
| plate thickness( both sie adhesive tape included | 2.38mm | 2.38mm | 2.38mm |
| Heating power | 7kw | 10.5kw | 14kw |
| Total power | 11.5kw | 15kw | 18.5kw |
| weight of machine | 3000kg | 3500kg | 4000kg |
| overall dimension | 4300*1700*2500mm | 4300*1900*2500mm | 4300*2100*2500mm |

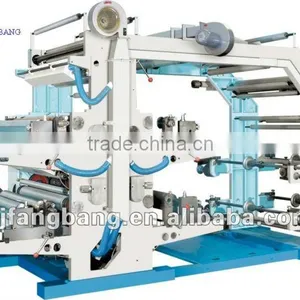

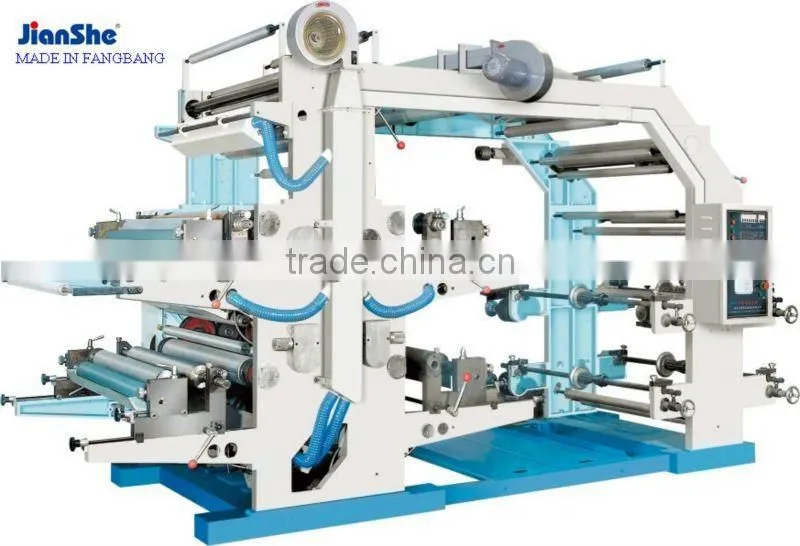

MACHINE PHOTO:
MACHINE DETAILS:
PRINTING PRODUCTS:
