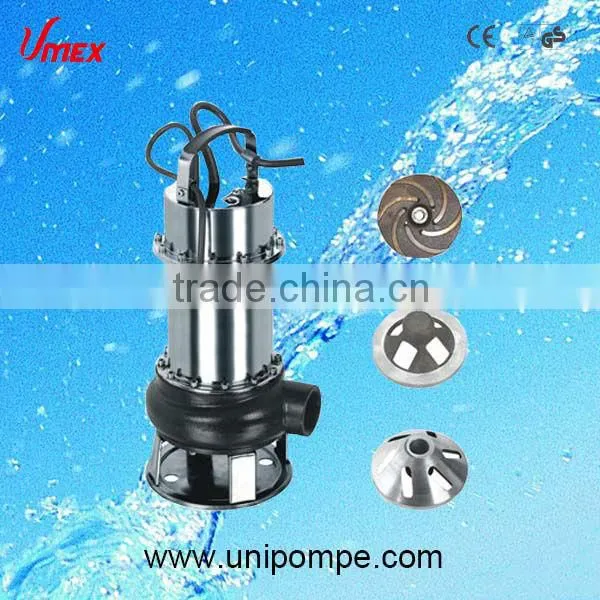

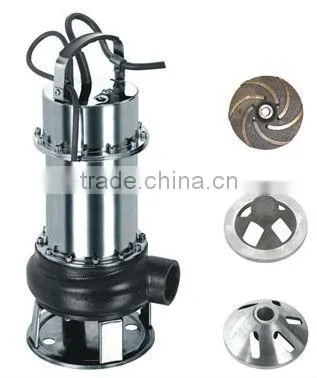

Help CenterWQG Submersible Sewage Stainless Steel Pump
Related Products
-
KBS New Type Submersible Sewage Pump ,cast Iron Sewage PumpUS$ 20 - 50MOQ: 100 Pieces -
2013 KBZ Submersible Sewage Pump , Cast Iron Sewage PumpUS$ 30 - 100MOQ: 50 Pieces
-
V(WQ) New Model Submersible Sewage PumpUS$ 50 - 150MOQ: 100 Pieces
-
WQ Series Centrifugal Submersible Sewage PumpUS$ 50 - 300MOQ: 50 Pieces
-
2013 Year New Type VN1500 Submersible Sewage Pump,Stainless Steel PumpUS$ 50 - 200MOQ: 100 Pieces
Specifications
complete stainless steel structuresingle vane impeller
max. particles 40-50mm
WQG SERIES STAINLESS STEEL SUBMERSIBLE SEWAGE PUMPS
RANGE OF PERFORMANCE
8Flow rate: up to 234 L/min (14 m3/h)
8Head: up to 15 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 50mm
WORKING PRINCIPLE
8This SINGLE VANE pump is designed fo automatic use (single phase). The principle is pump with a single vane impeller, which is mounted at the end of the drive shaft and enclosed in a large ring chamber, formed by the pump body and the base. The suction opening is in direct with th liquid to be pumped. The rotating impeller transmits kinetic energy to the liquid, which is centrifuged in the ring chamber, where part of the kinetic energy is transformed into pressure engergy. The particular shape of the impeller makes the optimized efficiency.
MAIN FEATURES
8This series of sewage pumps can be made of standard AISI SS 304 or 316L according to its usage,which can be made equipped with different cutting systems to cut long fiber, mince so that it can't be blocked easily. It's suitable for discharge of sewage and domestic waste water etc.
STRUCTURAL CHARACTERISTIC
8Pump body : Stainless steel
8Impeller : Stainless steel single vane
8Motor sleeve: Stainless Steel
8Mechanicalseal :double SiC/SiC
8Shaft : SS420
8Bearing: C&U or China local or NSK etc.
8Insulationclass : F
8Protection class : IP 68
8With float switch (or without)
8With thermal overload protector in single phase motor.
WARRANTY: 1 YEAR (according to our general sales conditions)
Model |
Power |
Max.Flow |
Max.Head |
Outlet |
Cable |
G.W. |
Packing Size |
20"QUANTITY |
|
KW |
HP |
(m3/h) |
(m) |
mm |
m |
Kg |
mm |
pcs |
|
WQG5-10-2.2(F) |
2.2 |
3 |
14 |
15 |
50/65 |
10 |
34 |
225*265*550 |
529 |
8380V/50(60Hz), 220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
