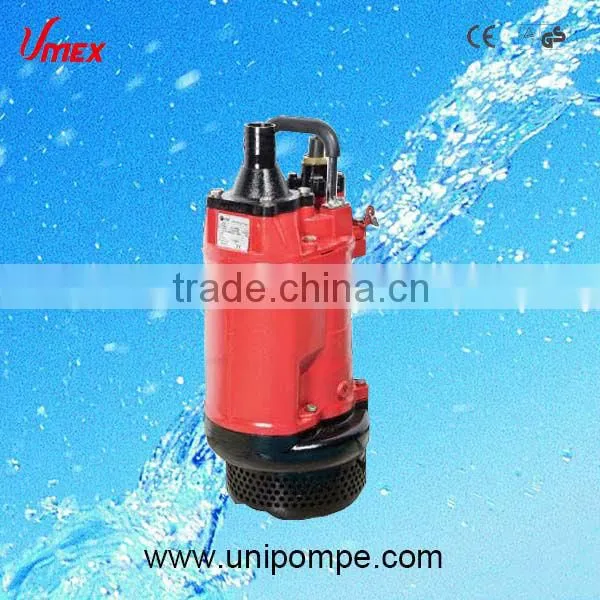

Help Center2013 KBZ Submersible Sewage Pump , Cast Iron Sewage Pump
Related Products
-
V(WQ) New Model Submersible Sewage PumpUS$ 50 - 150MOQ: 100 Pieces -
WQ Series Centrifugal Submersible Sewage PumpUS$ 50 - 300MOQ: 50 Pieces
-
2013 Year New Type VN1500 Submersible Sewage Pump,Stainless Steel PumpUS$ 50 - 200MOQ: 100 Pieces
-
SPA Centrifugal Submersible Water Clean PumpUS$ 50 - 150MOQ: 50 Pieces
-
Hot-sale Submersible Sewage Stainless Steel PumpUS$ 50 - 100MOQ: 100 Pieces
Specifications
Submersible sewage pump1. Open impeller, double seal
2. Cast iron pump, stainless steel motor casing
3. Water depth 5m
KBZ SERIES SUBMERSIBLE SEWAGE PUMP
RANGE OF PERFORMANCE
8Flow rate: up to 156 m3/h
8Head: up to 56 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 10-35mm
MAIN FEATURES
8The body of motor and pumps is made of rigid cast iron for long-lasting durability.
8Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure(0.5Mpa).
8Semi-open impeller made of high chrome alloy match with wear plate(ductile iron) achieves superior durability.
8Effective motor cooling due to discharge channel cast as part of the motor housing. Space economy by a top outlet.
8Discharge 50mm(2") to 150mm (6"), motor 1.5Kw (2HP) to 15Kw(20HP).
8Hermetically sealed motor eqipped bulid-in thermal protection
MOTOR
8Two-pole induction motor (n=2850rpm)
8Power:1.5Kw to 11Kw
8Voltage:Three phase 380V±10%,50Hz,60Hz
8Insulation class:F
8Protection class:IP68
8Cable Length:8m

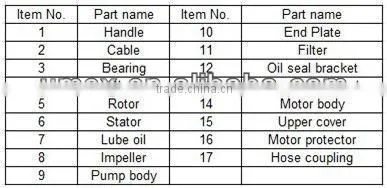

STRUCURAL CHARACTERISTIC
8Cast iron pump body
8Stainless steel shaft
8Stainless steel mechancial seal
8Sic to Sic/graphite to ceramic
8Nodular cast iron semi-open impeller(or high chrome alloy)
WARRANTY: 1 YEAR (according to our general sales conditions)
Model |
Outlet |
Motor power |
Voltage |
Max head |
Max capacity |
Impeller passage |
N.W |
G.W |
Dimension |
|
mm |
Kw |
HP |
m |
m3/h |
8.5 |
Kg |
Kg |
mm |
||
KBZ215 |
50 |
1.5 |
2 |
380V/50Hz |
22 |
27 |
8.5 |
34.5 |
37.5 |
590*280*250 |
KBZ222 |
50 |
2.2 |
3 |
26 |
27 |
8.5 |
36 |
39 |
590*280*250 |
|
KBZ237 |
50 |
3.7 |
5 |
34 |
29 |
8.5 |
60 |
65 |
680*320*280 |
|
KBZ315 |
80 |
1.5 |
2 |
14.5 |
40 |
8.5 |
34.5 |
37 |
590*280*250 |
|
KBZ322 |
80 |
2.2 |
3 |
21 |
50 |
8.5 |
36 |
39 |
590*280*250 |
|
KBZ337 |
80 |
3.7 |
5 |
29 |
55 |
8.5 |
60 |
65 |
680*320*280 |
|
KBZ355 |
80 |
5.5 |
7.5 |
32 |
70 |
8.5 |
77 |
84 |
730*350*350 |
|
KBZ437 |
100 |
3.7 |
5 |
18 |
90 |
8.5 |
61 |
66 |
680*320*280 |
|
KBZ455 |
100 |
5.5 |
7.5 |
23 |
105 |
8.5 |
78 |
85 |
730*350*350 |
|
KBZ475 |
100 |
7.5 |
10 |
40 |
84 |
11.5 |
105 |
114 |
810*370*400 |
|
KBZ4110 |
100 |
11 |
15 |
48.5 |
86.4 |
11.5 |
130 |
140 |
860*420*450 |
|
KBZ4150 |
100 |
15 |
20 |
56 |
86.4 |
11.5 |
142 |
153 |
890*420*450 |
|
KBZ675 |
150 |
7.5 |
10 |
31 |
124.8 |
19.5 |
106 |
114 |
840*370*400 |
|
KBZ6110 |
150 |
11 |
15 |
32 |
147 |
19.5 |
133 |
143 |
860*420*450 |
|
KBZ6150 |
150 |
15 |
20 |
40 |
156 |
19.5 |
145 |
156 |
890*420*450 |
|
