Specifications
Submersible sewage pumphigh quality cheap price
High chrome impeller
sold to more than 40 countries

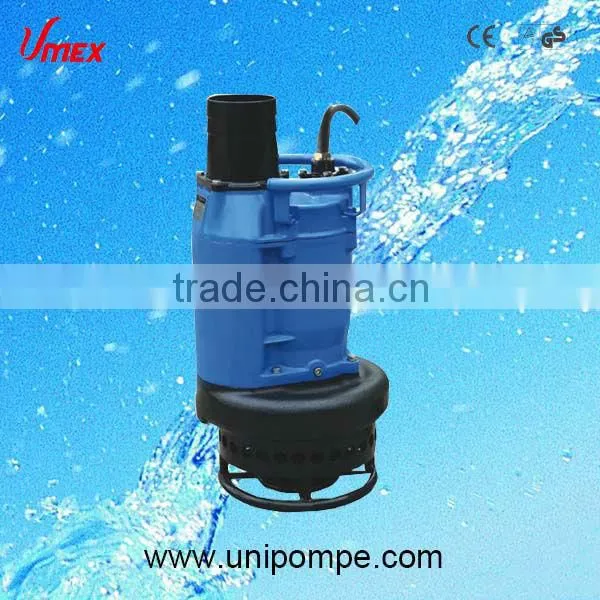

KBS SERIES SUBMERSIBLE SEWAGE PUMP
RANGE OF PERFORMANCE
8Flow rate up to 47.5 L/min (2.85 m3/h)
8Head up to 22 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximumfluid temperature 40°C
8PHvalue in water :4-10
8Maximum Passage for suspended solids: 10-35mm
MAIN FEATURES
8Submersible slurry pumps with a 4-pole motor for an increased lifetime and greater convenience.
8KBS-based extra powered submeisible slurry pumps with agitator.
8Slim design with a top discharge enabling installation in smaller casingse.
8For bentonite mixed water in foundation works or muddy water in civil engineering works.
MOTOR
8Two-pole induction motor (n=2850rpm)
8Power:4Kw to 9Kw
8Voltage:Three phase 380V±10%,50Hz,60Hz
8Insulation class:F
8Protection class:IP68
8Cable Length:8m

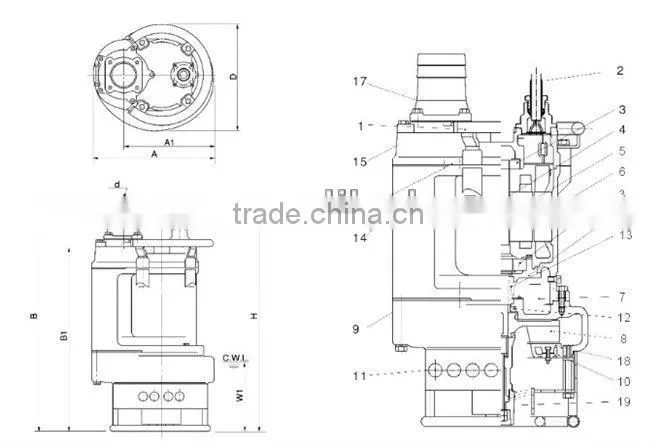

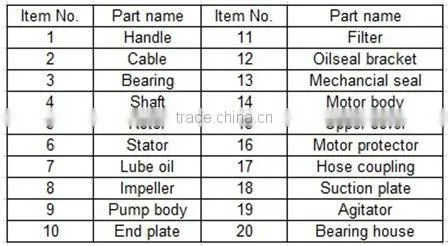

STRUCURAL CHARACTERISTIC
8Cast iron pump body
8Stainless steel shaft
8Stainless steel mechancial seal
8Sic to Sic/graphite to ceramic
8Nodular cast iron semi-open impeller(or high chrome alloy)

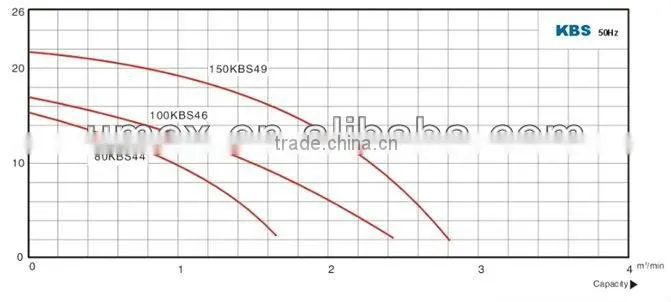

Performance curves
WARRANTY: 1 YEAR (according to our general sales conditions)
Model |
Outlet |
Motor power |
Voltage |
Max head |
Max capacity |
Impeller passage |
N.W |
G.W |
Dimension |
|
mm |
Kw |
HP |
m |
m3/min |
mm |
Kg |
Kg |
mm |
||
KBS34 |
80 |
4 |
5.5 |
380V/50Hz |
14.8 |
1.65 |
30 |
105 |
113 |
390*370*940 |
KBS46 |
100 |
6 |
8 |
16.9 |
2.50 |
30 |
145 |
156 |
420*480*970 |
|
KBS69 |
150 |
9 |
12 |
21.5 |
2.85 |
30 |
170 |
184 |
480*480*1030 |
|
