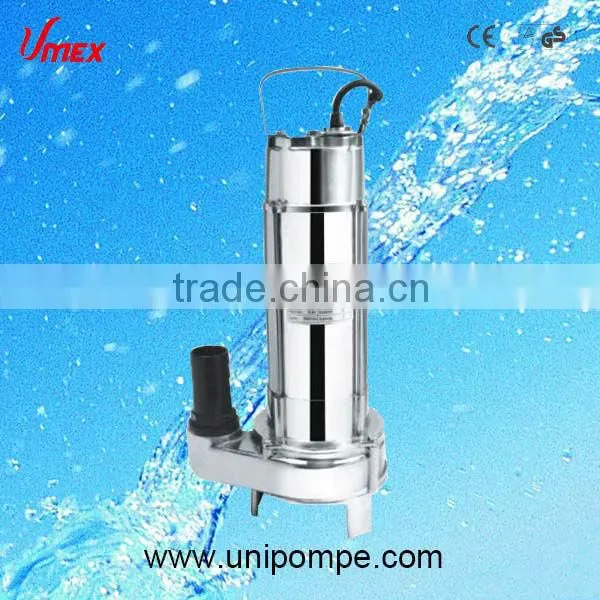

Help Center2013 Year New Type VN1500 Submersible Sewage Pump,Stainless Steel Pump
Related Products
-
SPA Centrifugal Submersible Water Clean PumpUS$ 50 - 150MOQ: 50 Pieces -
Hot-sale Submersible Sewage Stainless Steel PumpUS$ 50 - 100MOQ: 100 Pieces
-
2013 Year New Type 5SPA Submersible Clean Water Pump, Multistage Submersible PumpUS$ 50 - 200MOQ: 100 Pieces
-
New Style Stainless Steel Submersible Clean Water PumpUS$ 50 - 100MOQ: 100 Pieces
-
2013 New Type Clean Water Stainless Steel Submersible PumpUS$ 50 - 100MOQ: 100 Pieces
Specifications
Submersible sewage pumpComplete stainless steel structure
power 1.5kw, 2.2kw
capacity 42m3/h
VN(WQ) MODEL OF STAINLESS STEEL DRAINAGE SUBMERSIBLE SEWAGE PUMP

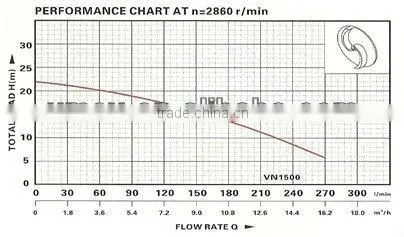

RANGE OF PERFORMANCE
8Flow rate: up to 700 L/min (42 m3/h)
8Head: up to 18.5 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 15-20mm

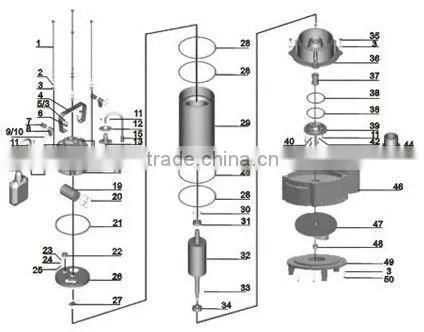

N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
1 |
Bolt |
16 |
Bolt |
31 |
Bearing |
46 |
Pump body |
2 |
Streching washer |
17 |
"O" ring |
32 |
Rotor |
47 |
Impeller |
3 |
Washer |
18 |
Capacitor cover |
33 |
Key |
48 |
Nut |
4 |
Handle |
19 |
Capacitor |
34 |
Bearing |
49 |
Pump cover |
5 |
Bolt |
20 |
"O" ring |
35 |
Screw |
50 |
Screw |
6 |
Nut |
21 |
Rubber washer |
36 |
Connection part |
51 |
|
7 |
Protector |
22 |
Line protector |
37 |
Mechanical seal |
52 |
|
8 |
Cable presser |
23 |
Screw |
38 |
"O" ring |
53 |
|
9 |
Screw |
24 |
Streching washer |
39 |
Oil chamber cover |
54 |
|
10 |
Washer |
25 |
Washer |
40 |
"O" ring |
55 |
|
11 |
Screw |
26 |
Motor cover |
41 |
Screw |
56 |
|
12 |
Flange |
27 |
Thermal protector |
42 |
Washer |
57 |
|
13 |
Cable protector |
28 |
"O" ring |
43 |
Oil seal |
58 |
|
14 |
Float switch |
29 |
Stator |
44 |
Out-let connector |
59 |
|
15 |
Cable |
30 |
Undulated washer |
45 |
"O" ring |
60 |
|
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET |
MAX.DIA |
G.W |
PACKING DIMENSION |
20‘ QUANTITY
|
(w) |
(m) |
(l/min) |
(mm) |
(mm) |
(K.g) |
(cm) |
pcs |
|
VN1500 |
1500 |
18.5 |
450 |
50 |
20 |
28 |
59X35.5X25 |
630 |
VN2200 |
2200 |
17 |
700 |
75 |
20 |
34 |
59X35.5X25 |
630 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
