Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > V(WQ) New Model Submersible Sewage Pump

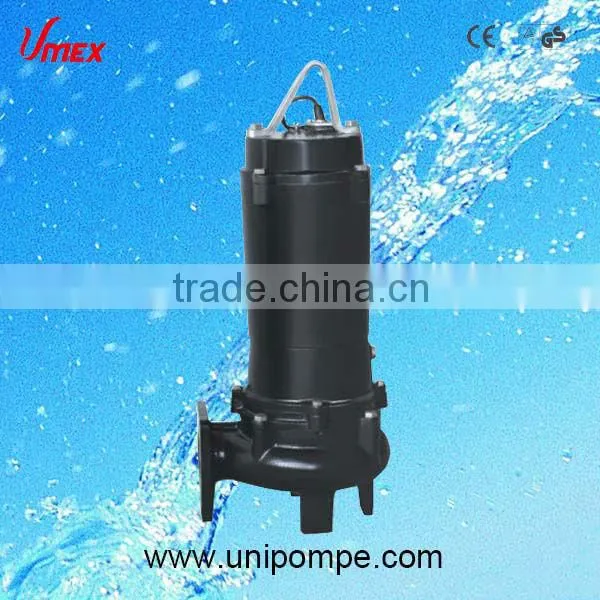

V(WQ) New Model Submersible Sewage Pump

Name: V(WQ) New Model Submersible Sewage Pump
Brand: BALLENA,UNIPOMPE
SKU: 113797887

V(WQ) New Model Submersible Sewage Pump thumbnail-1

V(WQ) New Model Submersible Sewage Pump photo-1

US$ 50 - 150 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

BALLENA,UNIPOMPE

Model Number:

V3000

Contact Supplier Request Quote Chat Now

Umex (Ningbo) Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name BALLENA,UNIPOMPE

Model Number V3000

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other

Pressure High Pressure

Application Sewage

Specifications

submersible sewage pump
high quality competitive price
bigger flow channel
max. flow 54 m3/h

V MODEL SUBMERSIBLE SEWAGE PUMP

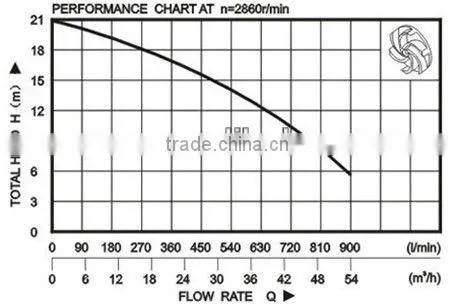

RANGE OF PERFORMANCE
8Flow rate: up to 900 L/min (54 m3/h)
8Head: up to 21 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 30mm

N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION
1	Screw	13	"O" ring	25	Washer	37	Screw
2	Flange	14	Cover	26	Connection part	38	Pump body
3	Cable protector	15	Undulated washer	27	"O" ring	39	"O" ring
4	Bolt	16	Stator	28	Rubber washer	40	Bolt
5	Handle	17	"O" ring	29	Bolt	41
6	Bolt	18	Bearing	30	Mechanical seal	42
7	Bolt	19	Rotor	31	Bolt	43
8	Cable presser	20	Key	32	Oil chamber cover	44
9	Cable	21	Bolt	33	Oil seal	45
10	Capacitor cover	22	Washer	34	Impeller	46
11	Rubber washer	23	Bearing	35	Shaft sleeve	47
12	Line protector	24	Bolt	36	Spring washer	48

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL	POWER	MAX.HEAD	MAX.FLOW	OUTLET	Voltage	Max.Diameter of	G.W	PACKING DIMENSION	20"QUANTITY
MODEL	(Kw)	(m)	(L/min)	(mm)	(V/Hz)	(mm)	(K.g)	(cm)	pcs
V3000	3	21	900	75	380/50	30	50	70X36X27	420
