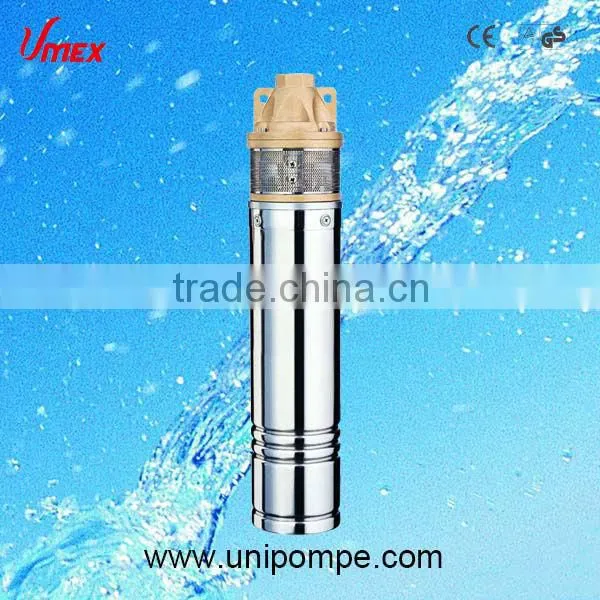

4SKM Deep well Submersible Pump with peripheral brass impeller
TECHNICAL DATA:
-Pump:
8Qmax: 3.5 (m3/h)
8Capacity from 1 to 2 (m3/h)
8Total head from 140 to 20 (m)
-MOTOR:
8Rewindable oil-filled motor.
8Power: 1 to 2 HP (1 phase/3 phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : 93mm
8Highest temperature of liquid : 35 °C
8International standard: IEC 60335-1 IEC 60335-2-41.
-Application:
8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.
-Operating conditions:
8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''.
8Maximum immersion depth: 80m.
-Materials:
8Pump casing: AISI 304 stainless steel
8Impeller: brass
8Suction support: brass
8Oil chamber: cast iron
8Inlet and Outlet: brass
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.

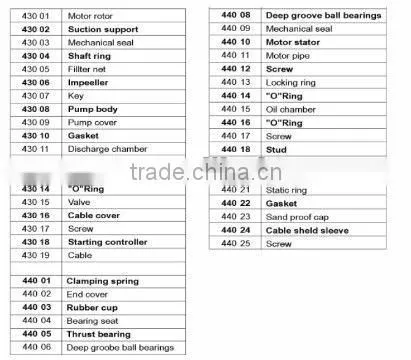

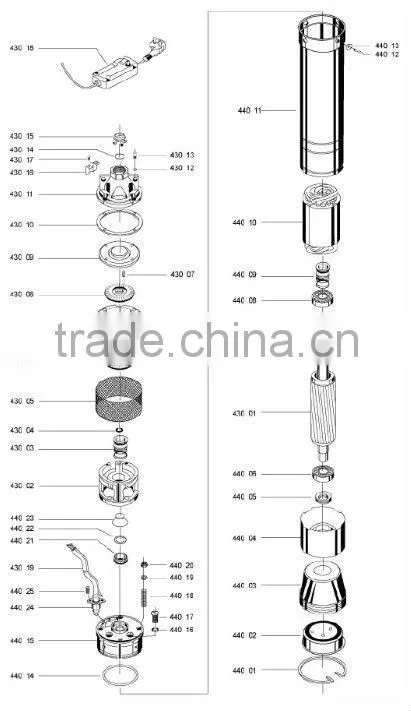

Drawing and Parts List
WARRANTY: 1 YEAR (according to our general sales conditions
Performance table:
MODEL |
Impellers |
Motor Power |
Capacity and head |
Controller |
DIMENSION |
||||||||||
220-240V~50HZ |
380-415V~50HZ |
(Kw) |
(Hp) |
L/min |
0 |
0.5 |
1 |
1.5 |
2 |
2.5 |
Current max. |
Capacitor max. |
Length |
Weight |
|
1 Phase |
3 Phase |
m3/h |
0 |
8..3 |
16.6 |
24.9 |
33.2 |
41.5 |
A |
(uF) |
mm |
kg |
|||
lmp.g.m |
0 |
1.8 |
3.6 |
5.4 |
7.2 |
9 |
|
|
|
|
|||||
4SKM100 |
4SK100 |
1 |
0.75 |
1 |
Head(m) |
61 |
54 |
45 |
36 |
28 |
20 |
6 |
30 |
485 |
15.5 |
4SKM150 |
4SK150 |
2 |
1.1 |
1.5 |
99 |
83 |
68 |
54 |
38 |
22 |
10 |
40 |
552 |
16.5 |
|
4SKM200 |
4SK200 |
2 |
1.5 |
2 |
140 |
130 |
120 |
100 |
90 |
70 |
13 |
70 |
606 |
17.5 |
|
8Three-phase 220/380V-50Hz (60hz), single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz are available on request.
PRODUCTION PROCESS SCHEME:
