Specifications
Water-filled canned motor submersible motorStainless steel splined shaft.
Stator-shield encapsulation system
Brass bar rotor

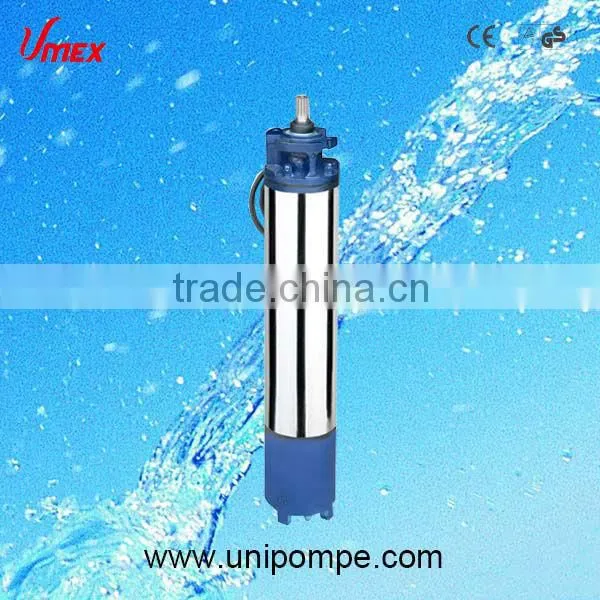

6" (6STC) ENCAPSULATED WATER-FILLED SUBMERSIBLE MOTOR
APPLICATIONS
1.These motors are built for dependable operation in 4” diameter or larger water wells.
BASIC FEATURES
1.Double flanged NEMA mounting design.

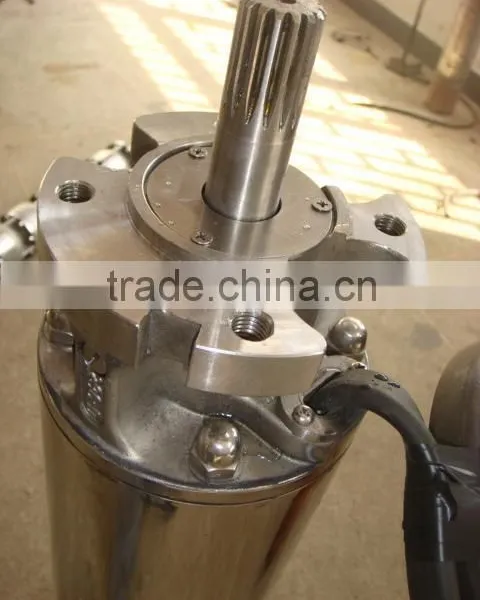

2.Stainless steel splined shaft.
3.Stator-shield encapsulation system
4.Water lubricated thrust bearing
5.External sand slinger on shaft.
6.Pressure-equalizing diaphragm.
7.Mechanical face seal at shaft exit.
8.Brass bar rotor
9.Field replaceable lead assembly.
10.Control boxes available for single-phase motors
11.Full 3450 rpm 60HZ design point.
12.Insulation class F& IP68
SPECIAL FEATURES
1.Flow inducer sleeve not required in water up to 86 °F (30 °C) for motors through 2 hp
2.Duty rating continuous at 0.25 ft/sec flow past motor
Materials
1.Motor Casing: 304 SS
2.Top End Bell & Thrust Housing : Epoxy Coated Gray Iron (or SS 316).
3.Stator Shell: 301 SS
4.Stator Ends:Carbon Steel (or SS 316).
5.Shaft Extension: 300 Series SS.
6.Fasteners: 300 Series SS.
7.Bushing: Bronze.
8.Shaft Mechanicl Seal: Carbon Ceramic.
9.Diaphragm: Nitrile Rubber .
10.Diaphragm Plate: 304 SS
11.Diaphragm Spring : 304 SS.
12.Diaphragm Cover : Gray Iron
13.Shaft Slinger: Nitrile Rubber
14.Lead Wire (or Cable) : XLPE
15.Lead Potting: Epoxy
16.Filter: Delrin & Polyester

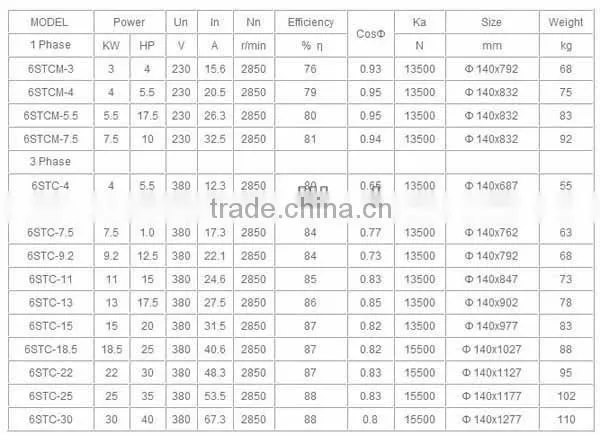

PERFORMANCE TABLE:
