Specifications
4SP multistage Submerged pump1. stainless steel impeller
2. ANIS 304 inlet/outlet
3. capacity 4~20 m3/h

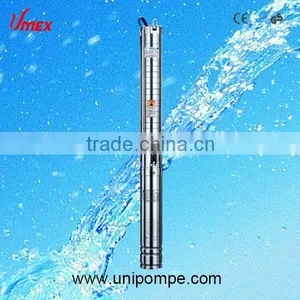

4" (4SP) MULTISTAGE SUBMERGED PUMP WITH PERIPHERAL IMPELLER
-Typical applications:
8Water supply system
8Booster
8Garden and fram irrigation
8Lowering underground water level
8Various industrial applications
-Working conditions:
8Dilute and clean non-corrosive liquid which dose not contain solid grains or fibers.
8The pump shoule be running under the performance range of the thick curves to
prevent the motor from overheating due to lower capacity or overloading due to high capacity.
-MOTOR:
8Rewindable oil-filled moter.
8Qmax : 4 (m3/h)-4SP2/ 6 (m3/h)-4SP3
8Qmax : 6.8 (m3/h)-4SP5/ 14.5 (m3/h)-4SP8/ 20 (m3/h)-4SP14
8Adopted the NEMA standard.
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : 95mm
8Highest temperature of liquid : 35 °C
8International standard: IEC 60335-1 IEC 60335-2-41.
-Application:
8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.
-Operating conditions:
8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''.
-Materials:
8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet: brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.

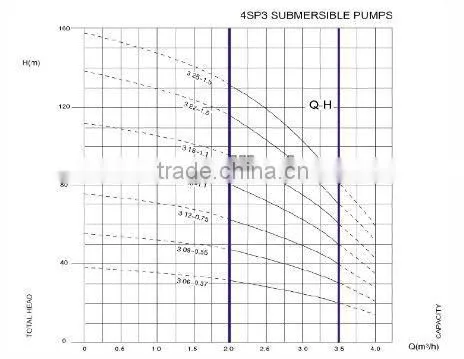

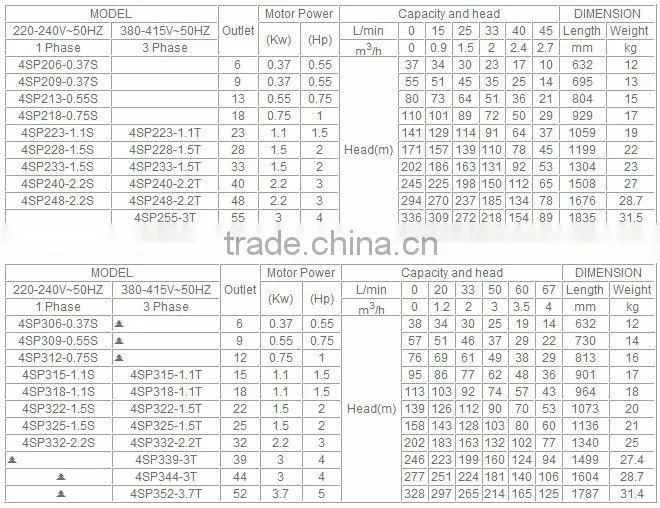

Performance table:
Performance table:
WARRANTY: 1 YEAR (according to our general sales conditions)
8Three-phase 220/380V-50Hz (60hz), single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz are available on request.

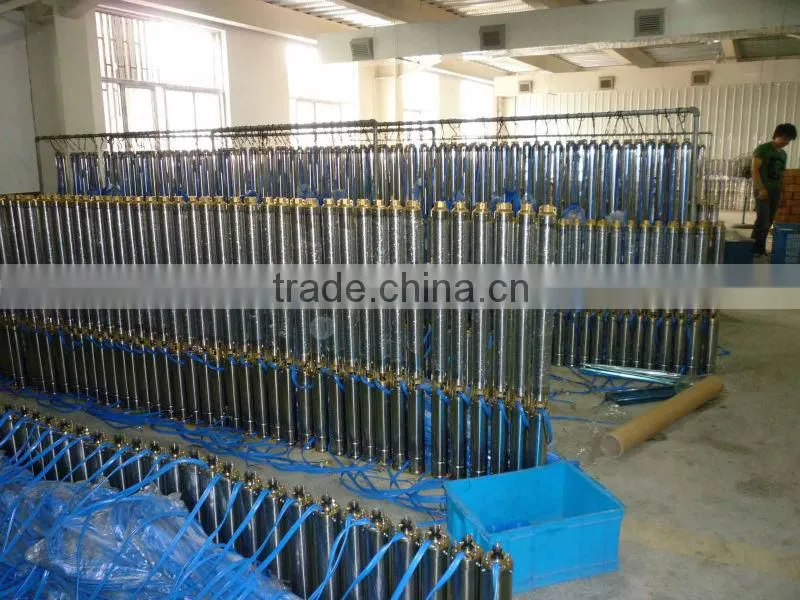

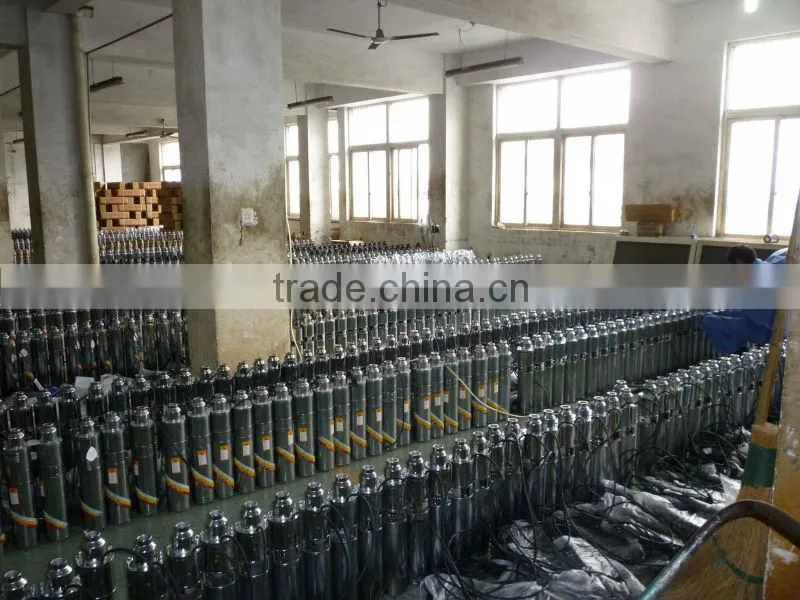

PRODUCTION PROCESS SCHEME

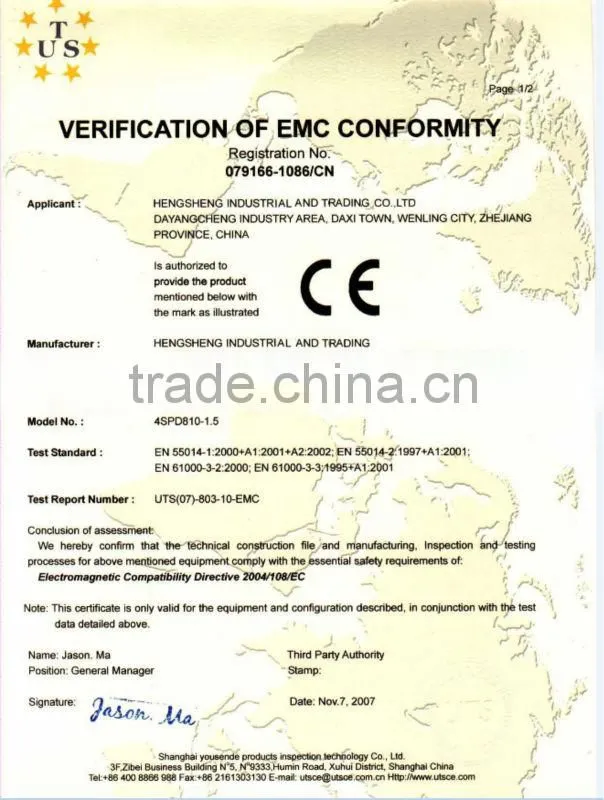

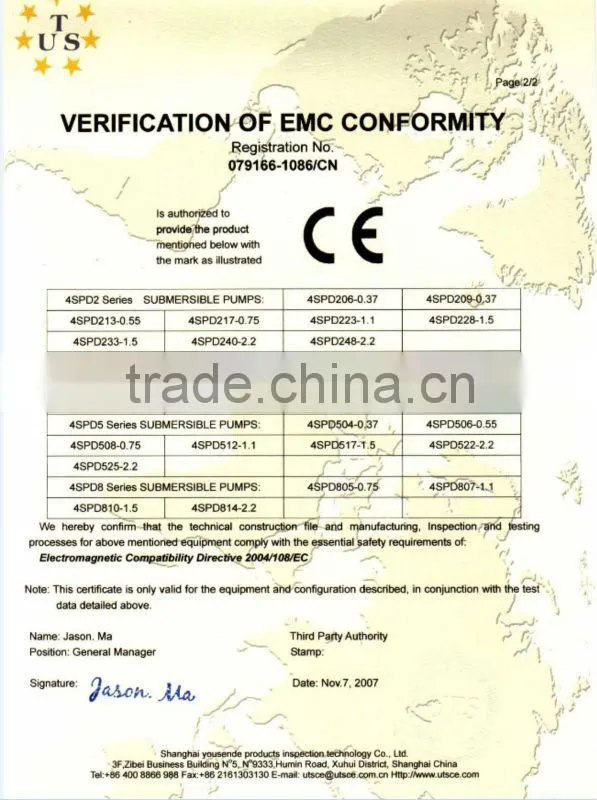

CERTIFICATE
