4" Franklin Submersible Motor Water Filled Encapsulated Motor Quality Choice

4" Franklin Submersible Motor Water Filled Encapsulated Motor Quality Choice thumbnail-1
4" Franklin Submersible Motor Water Filled Encapsulated Motor Quality Choice thumbnail-2

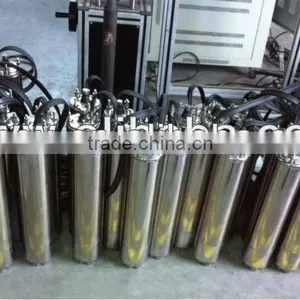

4" Franklin Submersible Motor Water Filled Encapsulated Motor Quality Choice thumbnail-3
4" Franklin Submersible Motor Water Filled Encapsulated Motor Quality Choice photo-1

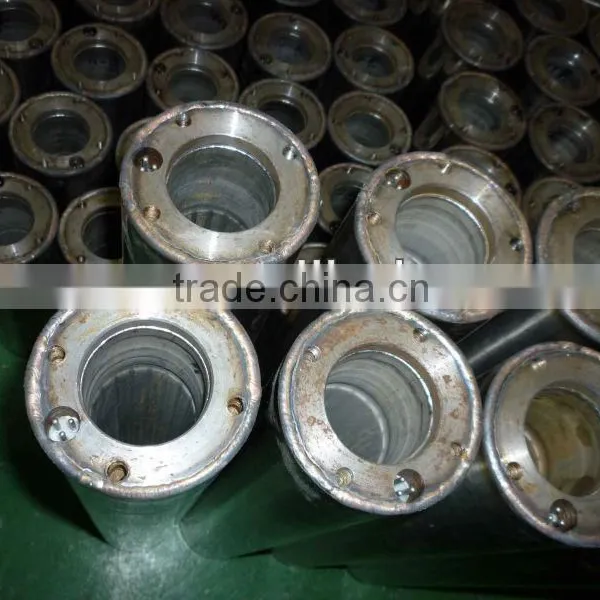

4" Franklin Submersible Motor Water Filled Encapsulated Motor Quality Choice photo-2

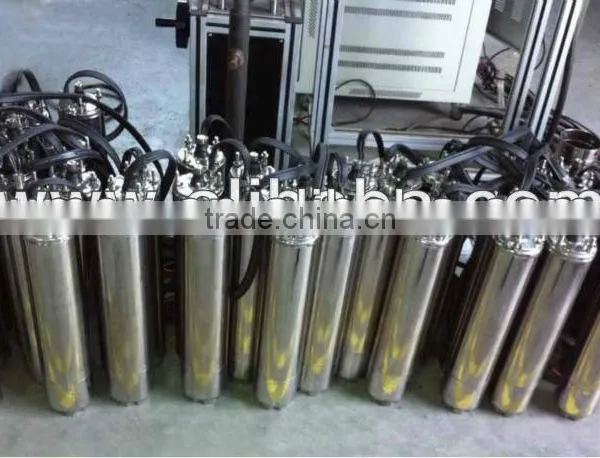

4" Franklin Submersible Motor Water Filled Encapsulated Motor Quality Choice photo-3
US$ 100 - 300 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
UNIPOMPE
Model Number:
4STC
Contact Supplier Request Quote Chat Now
Umex (Ningbo) Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name UNIPOMPE
Model Number 4STC
Theory Centrifugal Pump
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electric
Pressure High Pressure
Application Submersible

Specifications

4 inch Submersible motor
1. Encapsulated submersible motor
2. water lubrication
3. NEMA standard.

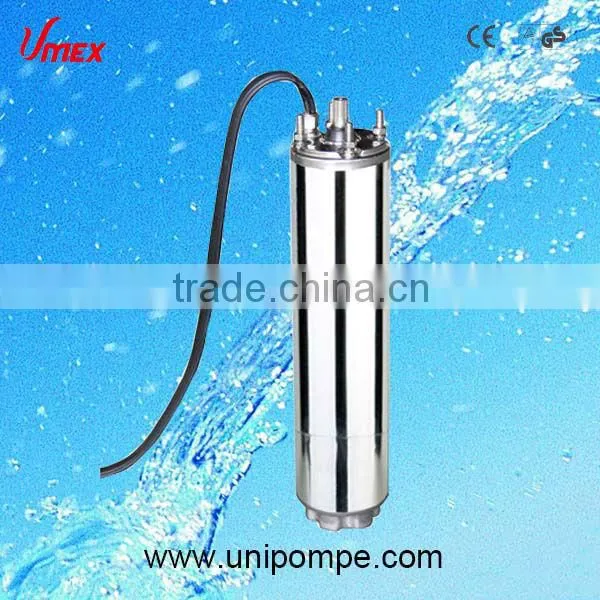

4" (4STCM) FRANKLIN ENCAPSULATED SUBMERSIBLE MOTOR




APPLICATIONS

These motors are built for dependable operation in 4” diameter or larger water wells.

BASIC FEATURES



1.Corrosion-resistant stainless steel exterior.
2.Stainless steel splined shaft.
3.Hermetically-sealed windings.
4.Stator-shield resin system.
5.Filter check valve.

6.Water lubrication.
7.Thrust bearing.
8.Pressure-equalizing diaphragm.
9.Sand fighting slinger.
10.Built-in lightning arrestors (single-phase)
11.New lead assembly.
12.Control boxes available for single-phase motors
13.Industry standard NEMA mounting dimensions

SPECIAL FEATURES


1.Flow inducer sleeve not required in water up to 86 °F (30 °C) for motors through 2 hp
2.Duty rating continuous at 0.25 ft/sec flow past motor



4" Franklin Submersible Motor water filled encapsulated motor4" Franklin Submersible Motor water filled encapsulated motor4" Franklin Submersible Motor water filled encapsulated motor





WARRANTY: 1 YEAR (according to our general sales conditions)





MODEL
Power
Un
In
Nn
Efficiency
CosΦ
Ka
Size
Weight

1 Phase
KW
HP
V
A
r/min
 %  η
N
mm
kg
4STCM-0.37
0.37
0.5
230
3.5
2850
53
0.98
3000
Φ 94x365
11
4STCM-0.55
0.55
0.75
230
4.7
2850
55
0.95
3000
Φ 94x405
12
4STCM-0.75
0.75
1.0
230
6.5
2850
57
0.95
3000
Φ 94x428
13
4STCM-1.1
1.1
1.5
230
8.4
2850
60
0.96
3000
Φ 94x475
15
4STCM-1.5
1.5
2.0
230
11.2
2850
65
0.96
3000
Φ 94x505
17
4STCM-2.2
2.2
3.0
230
14.8
2850
68
0.96
3000
Φ 94x540
19
