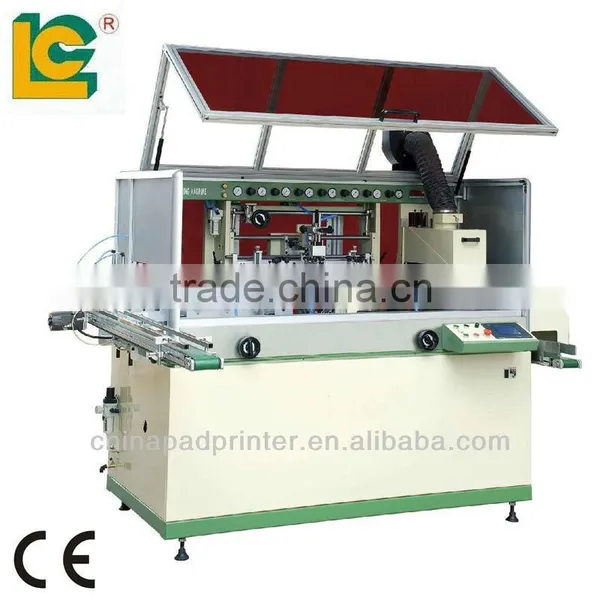

Full Automatic UV Printing Machine LCB-120UV-1

Product name

Full  Automatic One Colour Cylinder Screen Printer LCB-120UV-1

Model No

LCB-120UV-1

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Advantage

1.Full automatically printing suitable to print on various shades of cylindrical, elliptical and falt workpieces;

2.Coupled with auto workpiece feeding and loading system;

3.Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion;
4.The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing;
5.Electric sensor creates "no workpiece no printing" that leads to intelllgent monitor and smart control;
6.High quality UV curing system adopted to ensure fast ink drying and color registration;
7.High printing speed that up to 4000pcs/hr will bring you with high productivity;
8.Conveniently and easily fixture adjustment and change that save your valuable time;
9.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system.

Parameter

1 Model No:LCB-120UV-1
2.Printing colors:1 color
3.Product appearance:Round bottle /  oblate bottle
4.Operation:Full Auto
5.min printing diameter:round bottle: 20 mm
6.max printing diameter:round bottle :100 mm
7.min printing radius:oblate bottle :25 mm
8.max printing radius:oblate bottle :260 mm
9.oblate bottle width:20-100 mm
10.oblate bottle thickness:20-80 mm
11.Max Printing speed:4000-5000Pcs/Hr
12.Power:380V
13.Weight:1050(kg)
14.Dimensions:L:1900×W:1000×H:1500(mm)

Usage

As it is made up of several individual units to form a printing chain, it can be used for the purpose of one-color printing.

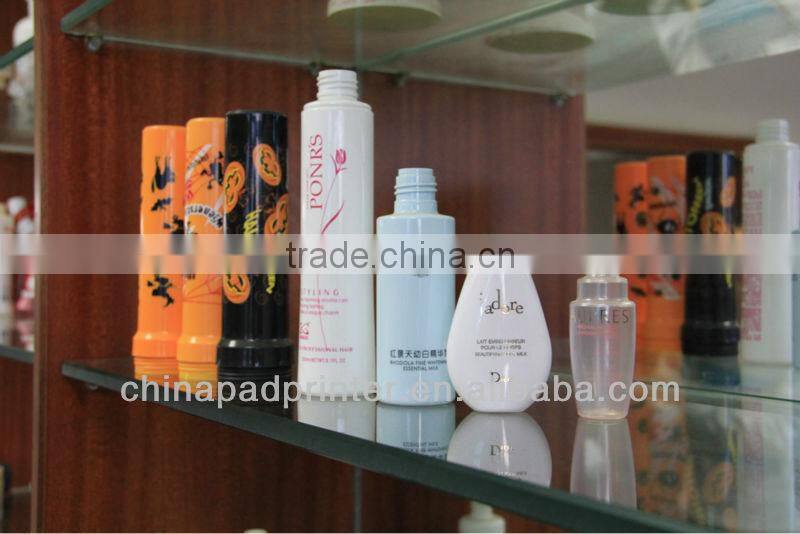

The materials to be printed can be plastic, glass, ceramics, metal, etc

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)
