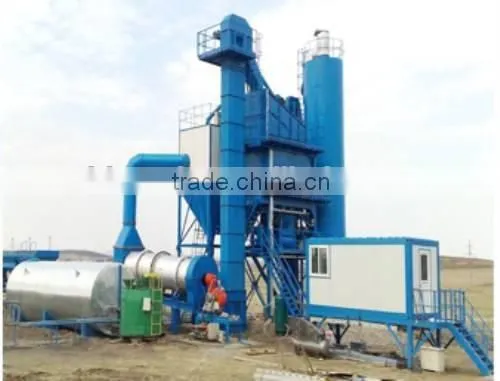

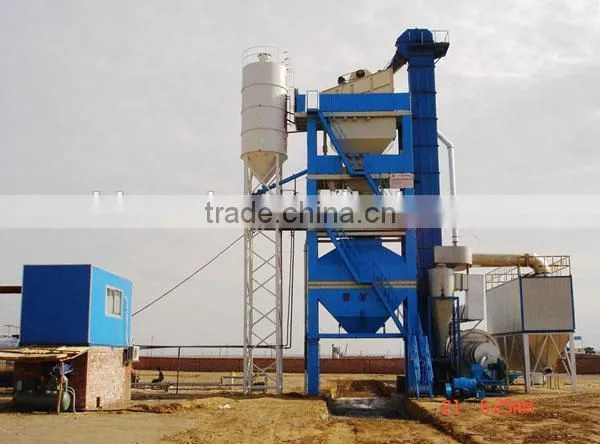

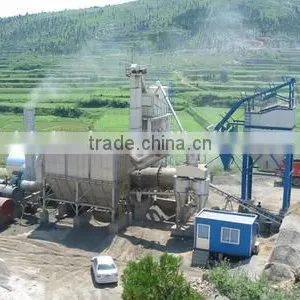

50T/h Hot Asphalt Mixing Plant, Asphalt Hot Mix Plant

Name: 50T/h Hot Asphalt Mixing Plant, Asphalt Hot Mix Plant
Brand: Xinxing
SKU: 113471731

US$ 52,000 - 60,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Xinxing

Qingdao Xinxing Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Xinxing

Model Number XX50A

Voltage 380V

Certification CE&ISO9001

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Conform to CE;
Full container design;
Module removable;
Environmental protection;
World class control system.

Components of the XX50A

1. Cold aggregate feeding system
1.1 Cold aggregate bin	6pcs
1.2 Collecting belt conveyor	6sets
1.3 Horizontal belt conveyor	1set
1.4 Primary screen	1set
1.5 Inclined belt conveyor	1set
1.6 Alarm function for no aggregates	1set
2. Drying drum heating system
2.1Drying drum	1set
2.2Main burner ( fuel: diesel oil)	1set
3. Main tower
3.1 Hot elevator	1set
3.2 Filler elevator	1set
3.3 Vibrating screen (6 kinds of aggregates)	1set
3.4 Hot bin	1set
3.5 Weighing system (aggregate, bitumen, filler)	1set
3.6 Mixer	1pc
4. Hot mix storage silo (under mixer, 120t)	1set
5. Dust cleaning system
5.1 Primary dust filter - gravity	1set
5.2 Bag filter	1set
5.3 Pipeline system	1set
5.4 exhauster	1pc
5.5 Chimney	1pc
6. Filler feeding system
6.1 New filler silo (50m3)	1pc
6.2 Dust filler silo (30m3)	1pc
6.2 Impeller conveyor	1pc
6.3 Screw conveyor	2pcs
6.4 Dust processing device	1set
7. Pneumatic system	1set
7.1 air compressor	2pcs
7.2 pipelines & accessories	1set
8. Control system
8.1 Computer control system	1set
8.2 Monitoring system	1set
8.3 Power distribution cabinet, cables	1set
8.4 Control room (with air conditioner)	1pc
9. Bitumen heating and storage system
9.1 Bitumen tank (horizontal, 40t each)	3pcs
9.2 Bitumen pump	2pcs
9.3 Fuel tank (30t)	1pc
9.4 Hot oil boiler	1pc
9.5 Small burner for hot oil boiler (fuel: diesel oil)	1set
9.6 Pipelines	1set
