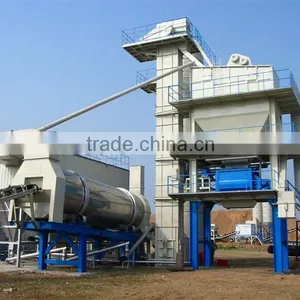

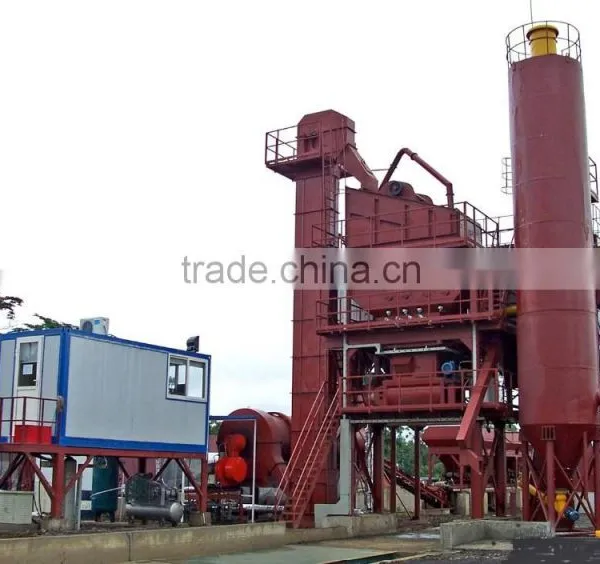

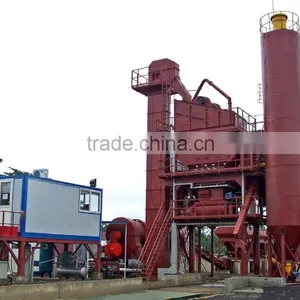

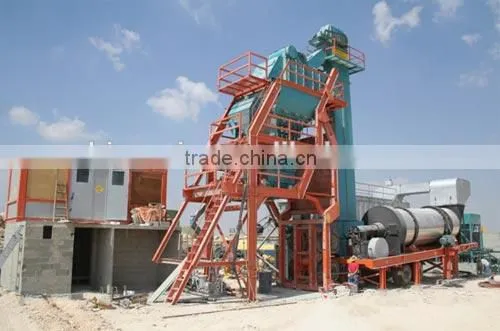

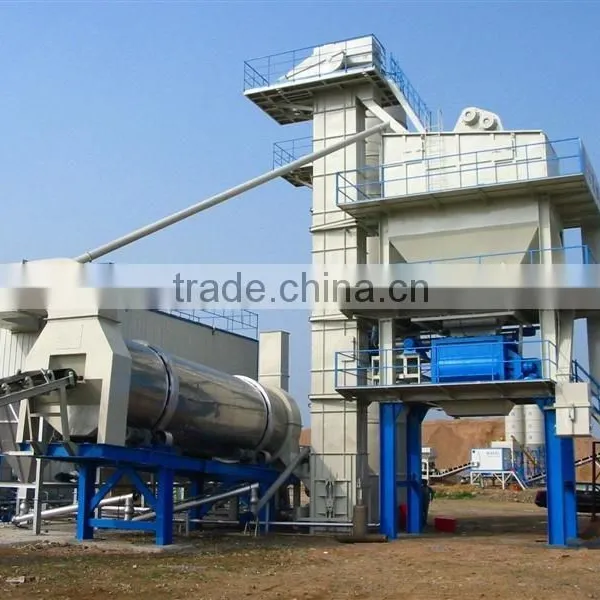

XX80A asphalt mixing plants is the international advanced product that is designed with the mature techniques of the British company of PARKER and the German company BENNINGHOVEN to satisfy the market demand. The features of this product are modular structure, easy to be transported and installed, compact structure, small floor space, high performance price ratio etc. It is not more than 25 days from start of installation to the formal production. The advanced auto control and monitor systems ensure the high reliability of the product. The modular structure complies with the Chinese Specification of Highway Transportation and the Chinese Specification of Railway Transportation transported quickly.
The product is very suitable for the maintenance of high grade road, the construction and maintenance of town road and rural road etc.
Production capacity(t/h): 60-80
Mixer capacity(kg): 1000
Aggregate(4 kinds of materials are accumulated): ±0.3%
Fine material(2 kinds of materials are accumulated): ±0.3%
Bitumen: ±0.1%
Temperature control accuracy(.C): ≤±5
Dust collection efficiency(mg/Nm3): ≤50
Total Power(kW): 270
Batch hopper: Length×Width(m): 3.2×2.5
Hopper capacity(m3): 7.3
Belt conveyor: Width(mm): 500
Power(kW): 5.5
Drier: Diameter×Length(m): 1.5×6.5
Power(kW): 22
Vibrating screen: Length×Width(m): 4×1.56
Power(kW): 2×5.5
Scale: Aggregate(kg): 1000
Fine material(kg): 200
Bitumen(kg): 150
Mixer: Capacity(kg): 1000
Power(kW): 30
