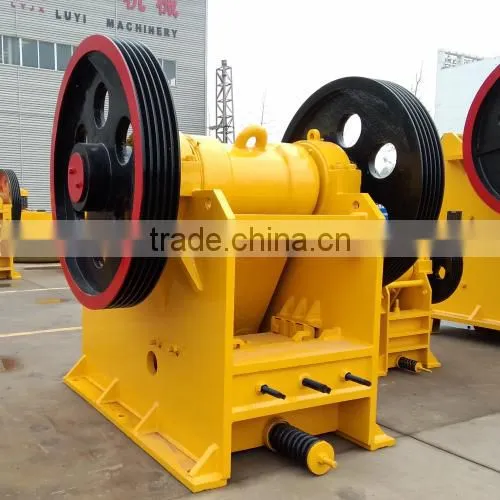

Jaw Crusher
1 Description

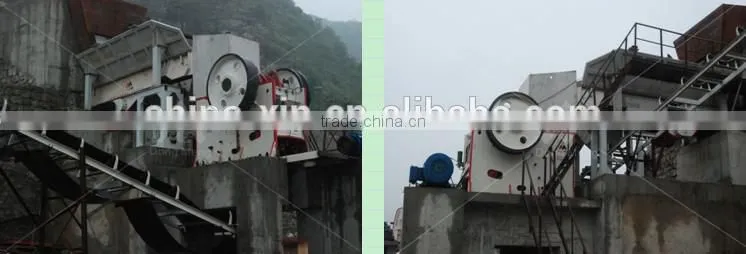

This series of crushers can be used in metallurgical industry, mining industry, chemical industry, building material, highway, railway, water industry and etc. They can be used to crush all kinds of mine and other massive materials into the granule, for the secondary crushing and the fine crushing. The highest anti-pressure strength of crushed material is 320/Mpa. The size of crushed material should conform to the stipulation in the table of Specification. Too sticky material will affect the capacity of the machine.
2 Working Principle
Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done. When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room. With the motor continuously rotating and the material periodically crushed and discharged by the crusher, the mass production can be realized.
Advantages
1. High-efficiency, higher output but lower energy consumption, 30% power saving and 20% output increasing compared with
similar product
2. Perfect protection system, all quick-wear areas are equipped with guard plates.
3. NN type automatic air circulation system, less emissions pollution through interior air circulation system, zero energy consumption.
4.immune to moisture content ,the moisture content is raw moisture can reach 8%.
5. the upper roof can be lifted by hydraulic system sand cutting machine
6.lubrication oil station is adopted to lubricate the major bearing in circulation to ensure constant supply.
