Specifications
used ball mill sale1. Large capacity
2. Low consumption .
3. Easy maintenance .
4. Capacity(t/h): 3-7

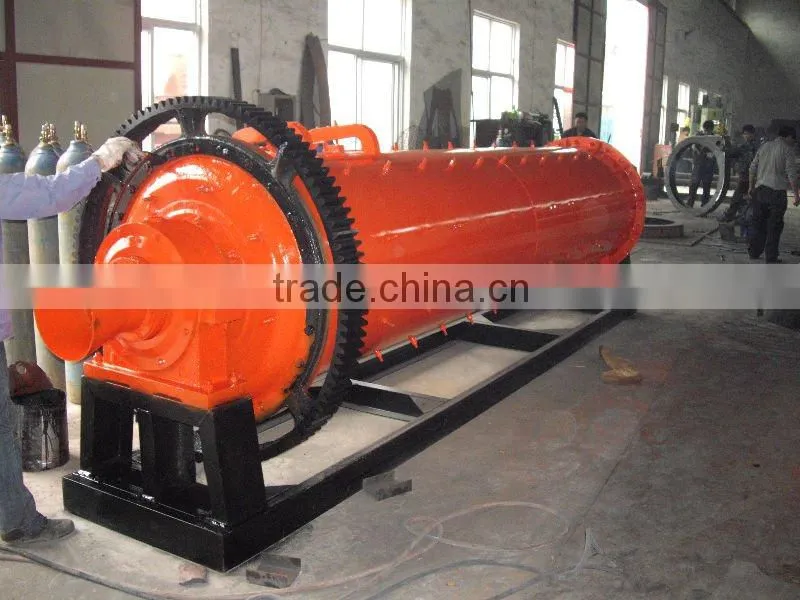

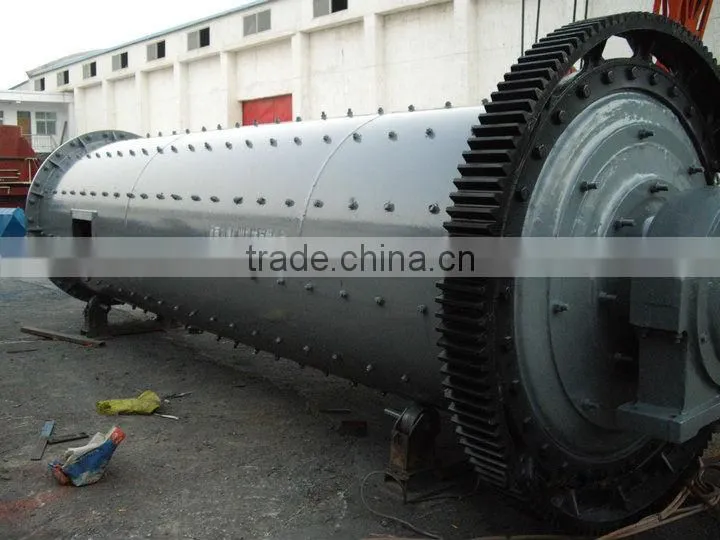

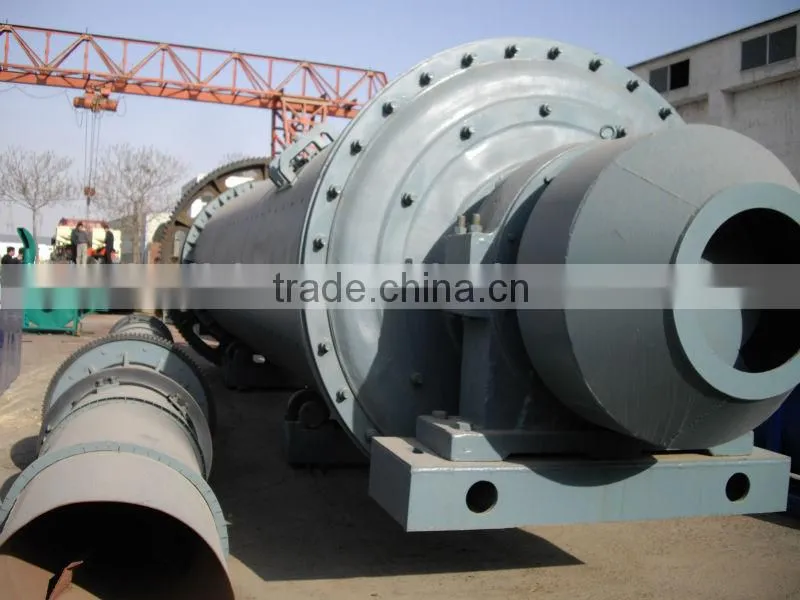

Used Ball Mill Sale
♣ Used Ball Mill Sale's Applications :
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
♣ Used Ball Mill Sale's Features :
1) Ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine.
3) Ball mill also is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to different expelling mine .
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
♣ Used Ball Mill Sale's Working Principle :

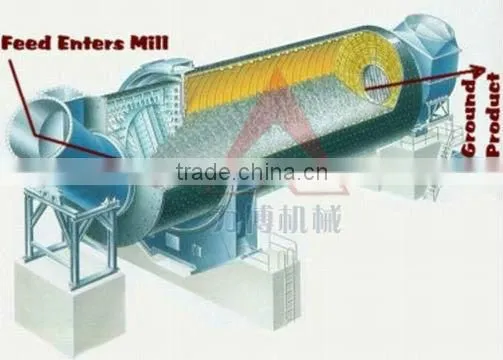

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
♣ Used Ball Mill Sale's Technical Parameters :
| certification and type | rotational speed(r/min) | put the ball to heavy(t) | material-in size(mm) | material-out size(mm) | yield(t/h) | motor power(kw) | weight(t) |
| Φ900*1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Φ900*3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
| Φ1200*2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 11.5 |
| Φ1200*4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Φ1500*3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2.0-5.0 | 90 | 17 |

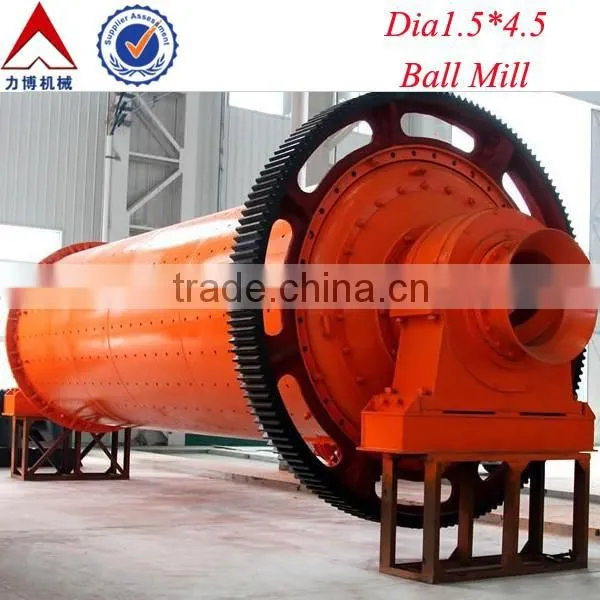

| Φ1500*4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3.0-7.0 | 110 | 21 |
| Φ1500*5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
| Φ1830*3000 | 24 | 18 | ≤25 | 0.074-0.4 | 4.0-10 | 180 | 28 |
| Φ1830*7000 | 24 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Φ2200*5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10.0-22 | 370 | 48.5 |
| Φ2200*6500 | 21 | 31 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Φ2200*7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-29 | 380 | 56 |
| Φ2400*4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Φ2700*3600 | 20.6 | 39 | ≤25 | 0.074-0.4 | 12-70 | 400 | 91.3 |
| Φ2700*4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
| Φ2700*4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Φ3200*4500 | 18 | 65 | ≤25 | 0.074-0.4 | according to process conditions | 800 | 137 |

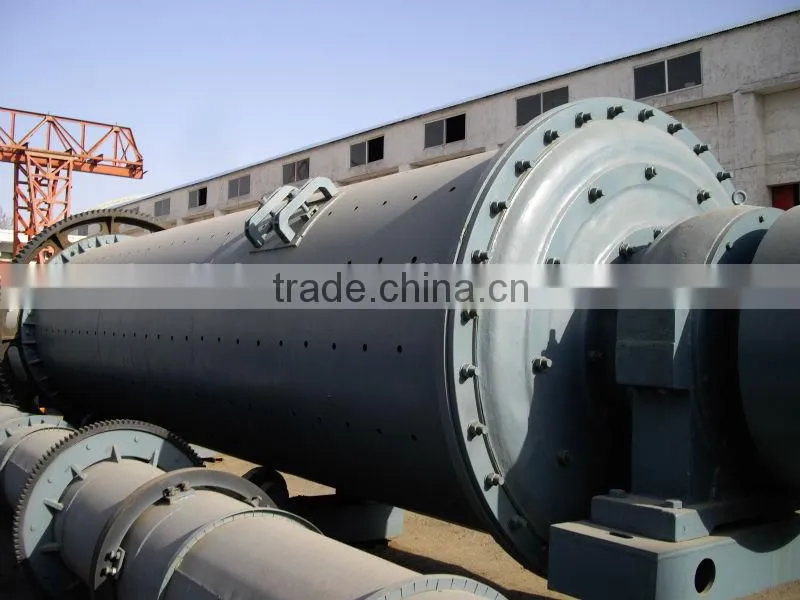

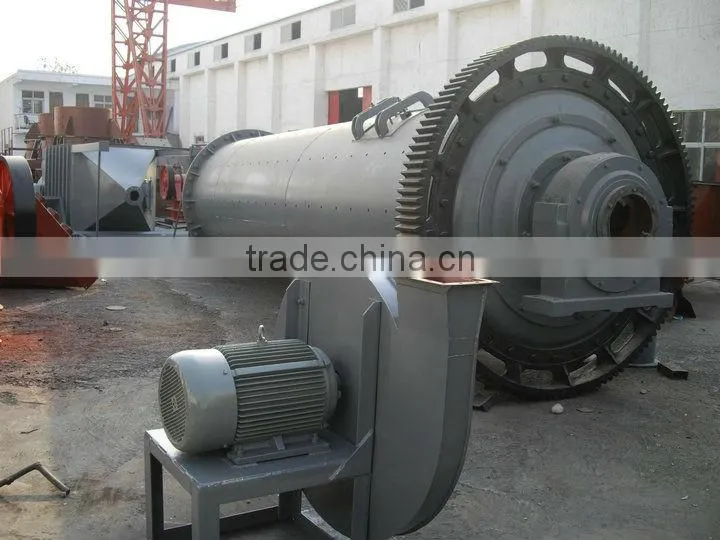

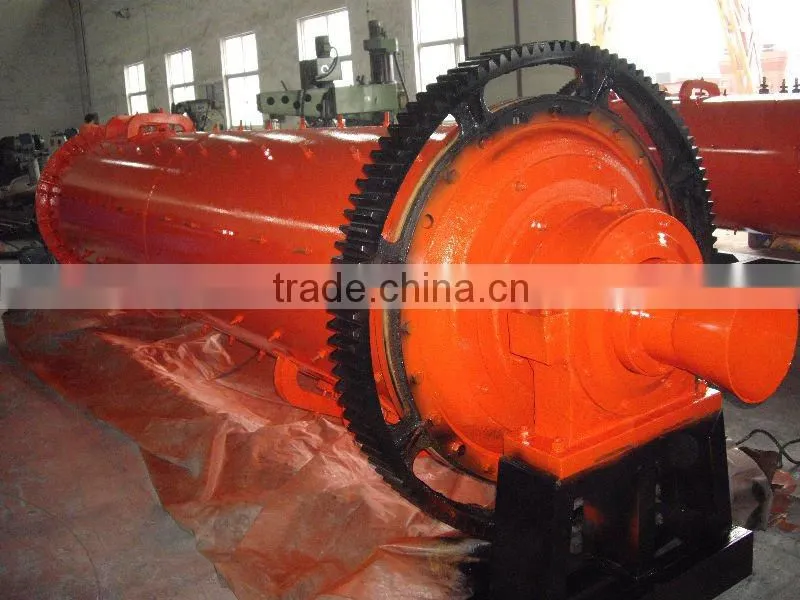

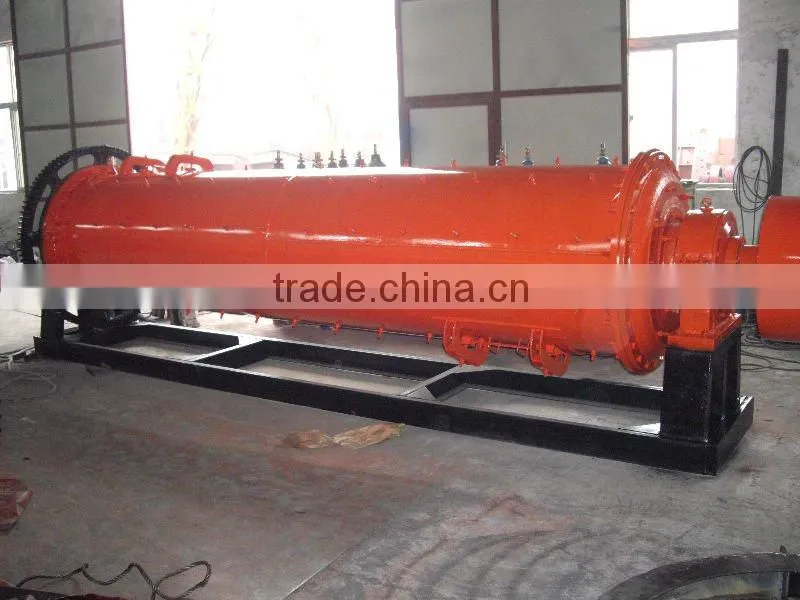

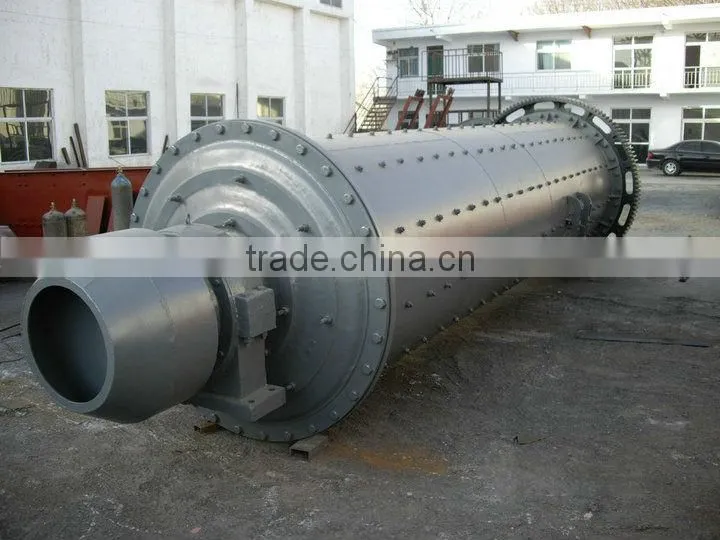

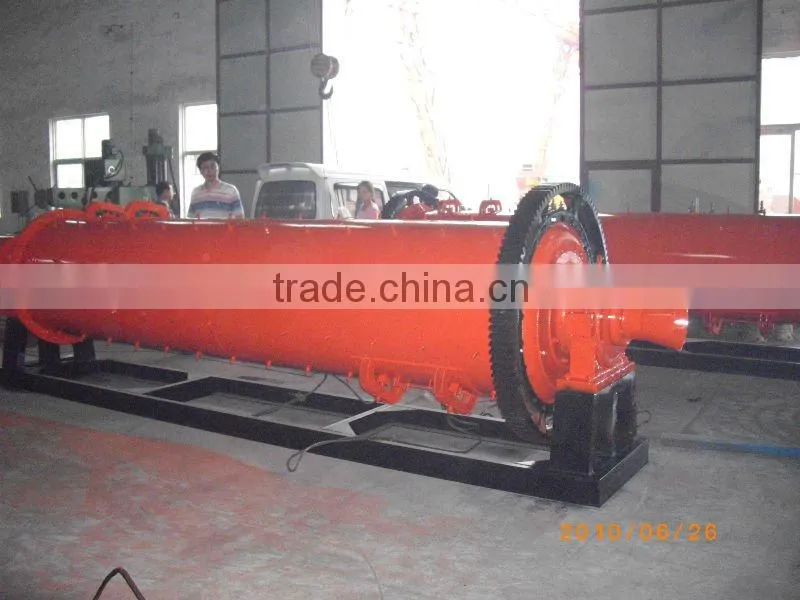

♣ The Ball Mill's Finished Product :

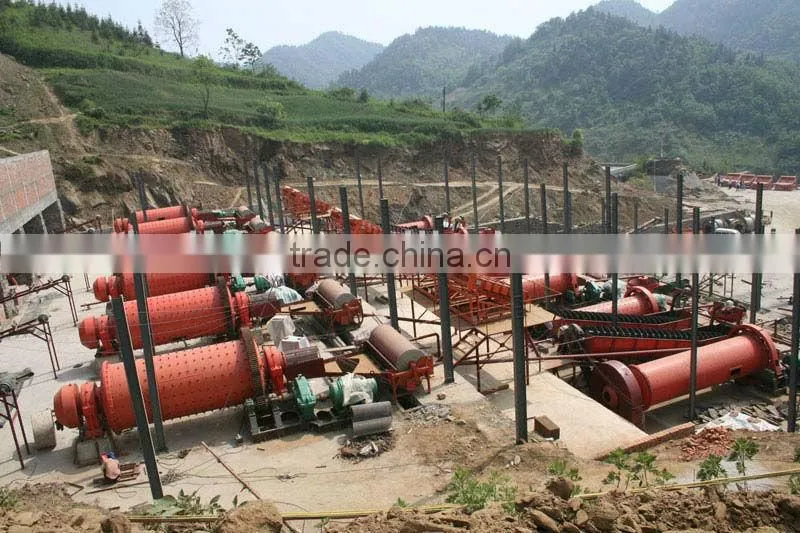

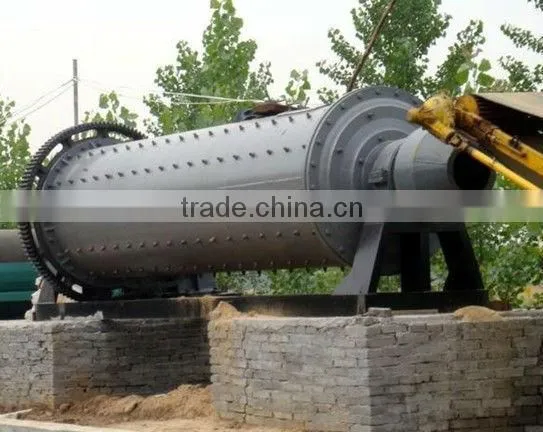

♣ The Ball Mill's Installation Scene :
If you are interested in our product , please contact me , welcome to visit our factory !
Name : Manli Wang .
Mobile : 86+ 13837135242 .
Skype : isabel199063 .
QQ : 1655705453 .
