Specifications
1.Mining grining small ball mill for sale .2.Convenient maintenance.
3.Reliable performance .
4.Yield (t/h): 12-90.
Mining grining small ball mill for sale Specifications:
♣ The application and usage of small ball mill :
This machine can be used in concret, fireproof material, chemical engineering, nonferrous metal and black metal, other departments, to smash all kinds of ores and materials.
♣ The features of small ball mill :
a) The ball mill is an efficient tool for grinding many materials into fine powder.
b) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
c) Ball mill is widely used in building material, and chemical industry.
d) There are two ways of grinding: the dry way and the wet way.
e) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
♣ The working principle of small ball mill :
The Ball mill can be divided into lattice type and overflow type according to different beneficiation methods, and this machine is two lattice-type ball mill. The materials from the feeding fittings enter evenly to the first bin of the milling machine via the feeding hollow axis when it works. There is a ladder-like or ripple-like scaleboard in the first bin, and different specification steel balls are installed in the bin. When the cylinder rotates and produces centrifugal force, the force carries steel balls into a certain height and then makes them fall to strike and grind the materials. After coarse grinding in the first bin, the material then enters into the second bin via a single layer partition board. There is a scaleboard and steel boards in the second bin, so the materials are further ground. In the end, the powder is discharged by output material board.
♣ The main parameters of small ball mill :
| Certification and type | Rotational speed (r/min) | Put the ball to heavy (t) | Material-in size (mm) | Material- out size (mm) | Yield (t/h) | Motor power (kw) | Weight (t) |
| Ø900*1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Ø 900*3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
| Ø 1200*2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 11.5 |
| Ø 1200*4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø 1500*3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2-5 | 90 | 17 |
| Ø 1500*4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3-7 | 110 | 21 |
| Ø 1500*5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
| Ø 1830*3000 | 24 | 18 | ≤25 | 0.074-0.4 | 4-10 | 180 | 28 |
| Ø 1830*7000 | 24 | 25 | ≤ 25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Ø 2200*5500 | 21 | 30 | ≤ 25 | 0.074-0.4 | 10-22 | 370 | 48.5 |
| Ø 2200*6500 | 21 | 31 | ≤ 25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ø 2200*7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-29 | 380 | 56 |
| Ø 2400*4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Ø 2700*3600 | 20.6 | 39 | ≤ 25 | 0.074-0.4 | 12-70 | 400 | 91.3 |
| Ø 2700*4000 | 20.7 | 40 | ≤ 25 | 0.074-0.4 | 12-80 | 400 | 94 |
| Ø 2700*4500 | 20.7 | 48 | ≤ 25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Ø 3200*4500 | 18 | 65 | ≤ 25 | 0.074-0.4 | Technical process conditions |
800 | 137 |

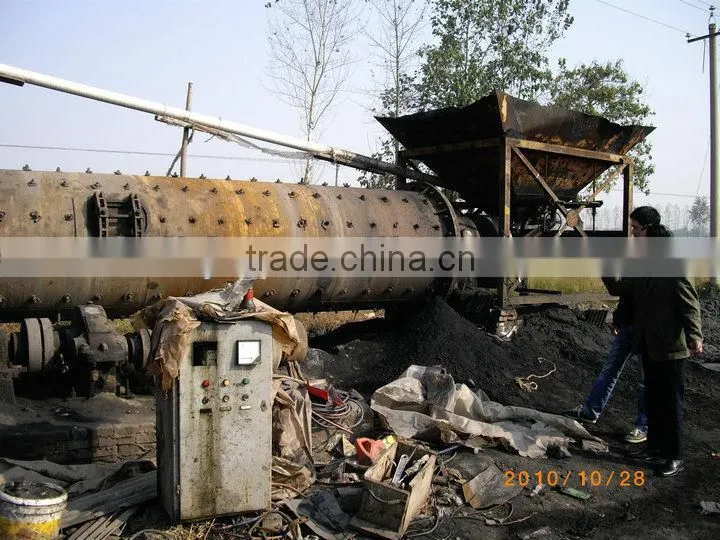

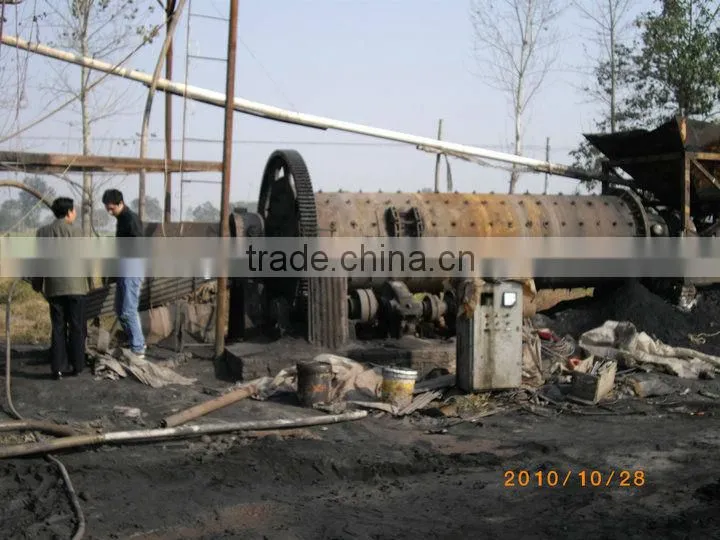

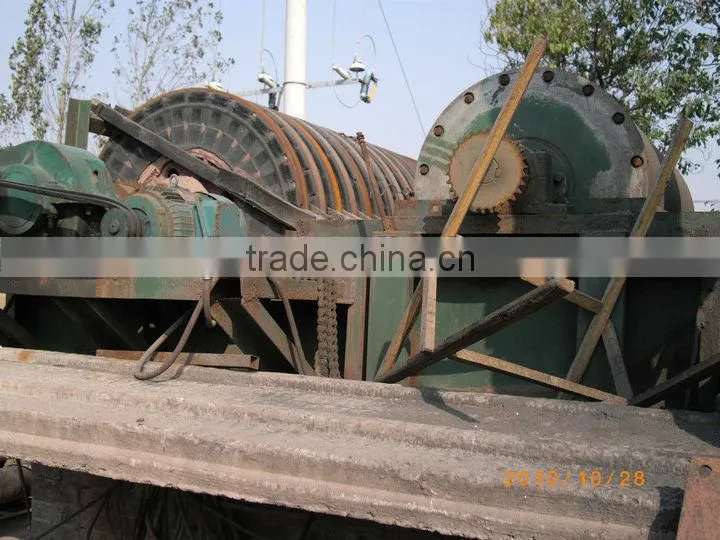

♣ The small ball mill production site :
