Specifications
1.Easy operation.2.Convenient maintenance .
3.Material-out size(mm): 0.075-0.89.
4.Yield(t/h): 1.1-3.5.

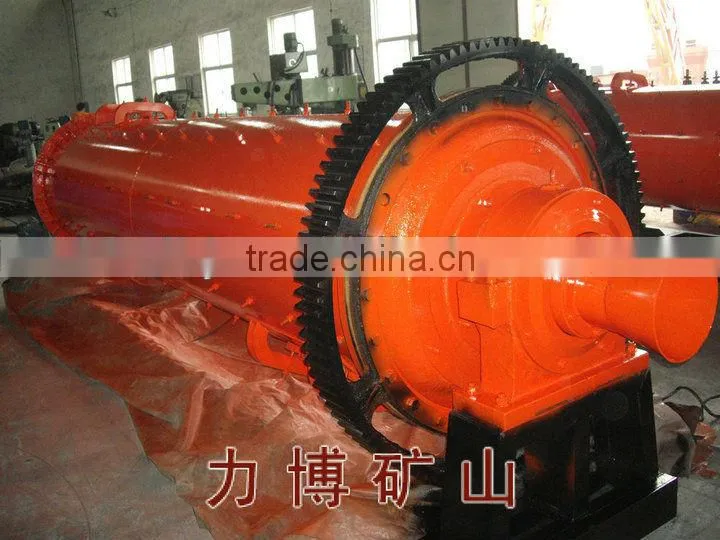

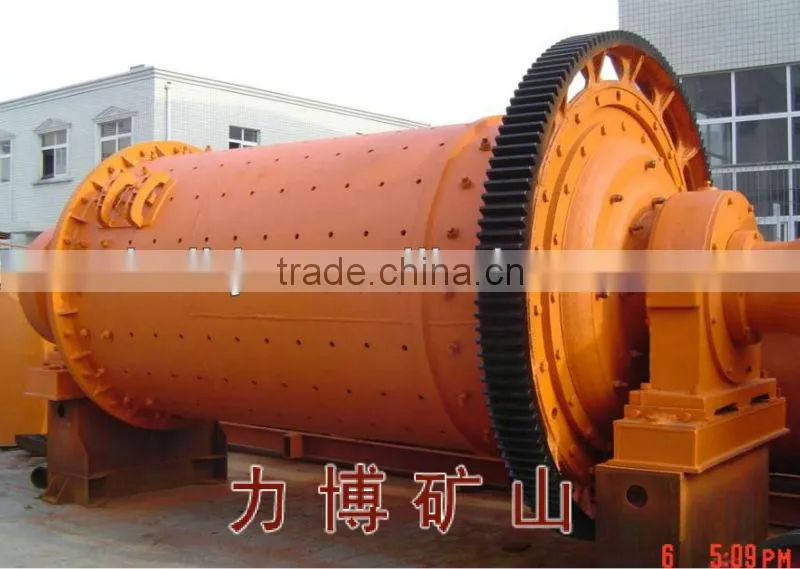

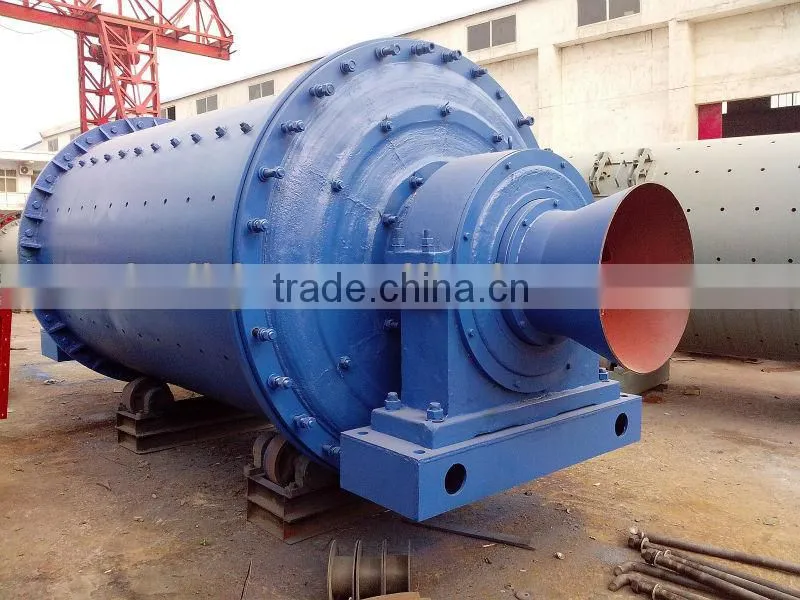

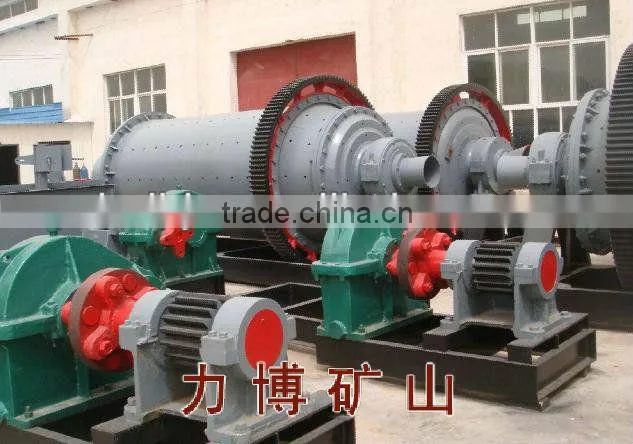

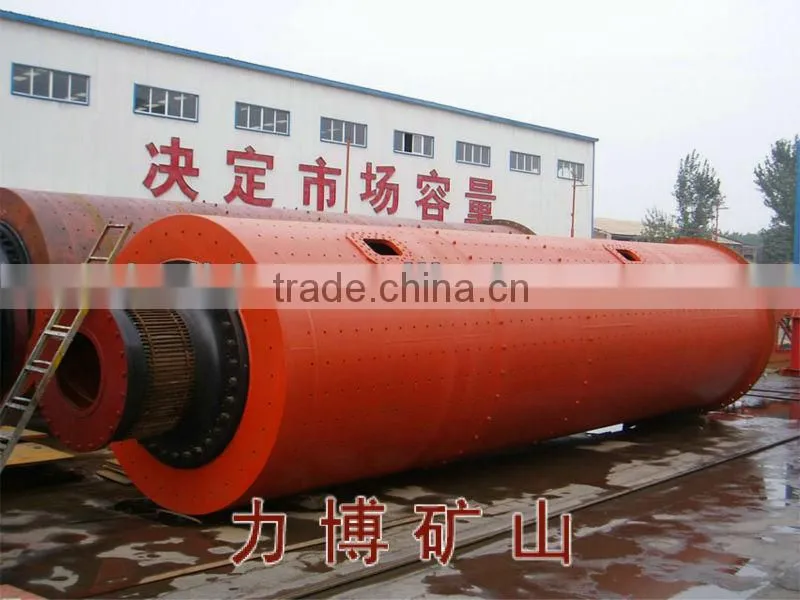

High capacity good performance Dia900*3000 ball grinding mill
♥ The usage and application of ball grinding mill :
The ball mill is widely used in the fields of building materials, mineral processing, chemical industry, electricity, etc, it can grind ores or other materials with certain granularity into fine powder.
♥ The features of ball grinding mill :
1). Energy saving 10% ~ 20%.
2). Increase production 10%~20%.
3). good quality welding jointing and sealing
4). Large application range, simple structure and convenient maintenance;
5). Large capacity and continuous work are very obvious;
6). Barrel lining and grinding media can apply various abrasive materials;
♥ The working principle of ball grinding mill :
This machine changes the intrinsic grinding machine structure. Its body and ground plank are an
integral whole, so when fixing, it can be lowered on a plane surface once only. Using double tiered
roller axletree with centripetal spherical surface as the support of the host axletree can reduce
energy cost by 20%.The intrinsic grille pattern forcing evacuation is instead by overfall pattern
controlling one. It can improve the milling of the granule and the capacity be increased by 10-20%.
♥ The main parameters of ball grinding mill :
| Certification and type | Rotational speed(r/min) | Put the ball to heavy(t) | Material-in size(mm) | Material-out size(mm) | Yield(t/h) | Moter power(kw) | Weight(T) |
| Ø900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Ø900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| Ø1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
| Ø1200×3000 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5 | 45 | 12.8 |
| Ø1200×4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6.5.8 | 55 | 13.8 |
| Ø1500×3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2-5 | 90 | 17 |
| Ø1500×4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ø1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
| Ø1830×3000 | 24 | 11 | ≤25 | 0.074-0.4 | 4-10 | 180 | 28 |
| Ø1830×6400 | 24 | 23 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| Ø1830×7000 | 24 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Ø2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-22 | 370 | 48.5 |
| Ø2200×6500 | 21 | 31 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ø2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-29 | 380 | 56 |
| Ø2400×7000 | 21 | 34.5 | ≤25 | 0.074-0.4 | 18-32 | 400 | 62.8 |
| Ø2400×8000 | 20.4 | 36 | ≤25 | 0.06-0.08 | 18-36 | 410 | 81.2 |
| Ø2700×3600 | 18 | 37 | ≤25 | <0.08 | 50 | 410 | 77.5 |
Welcome to our factory ! Best wishes for you !
