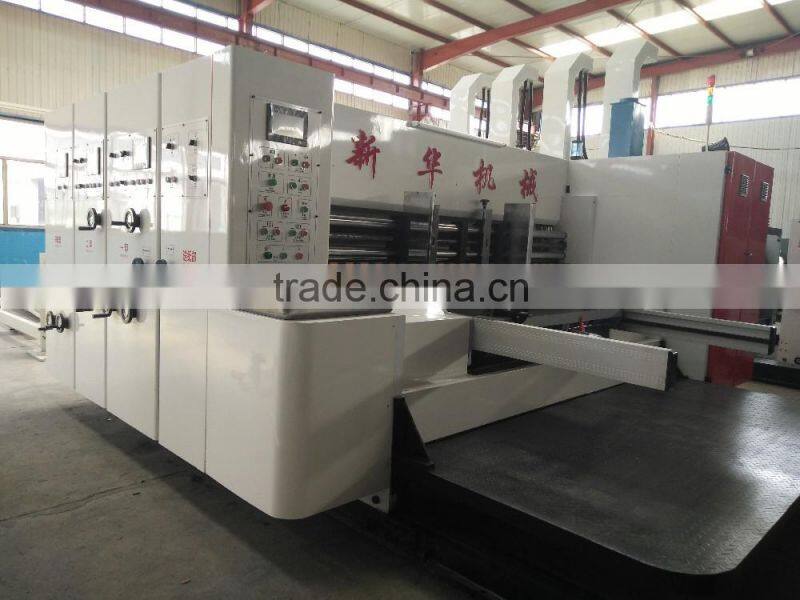

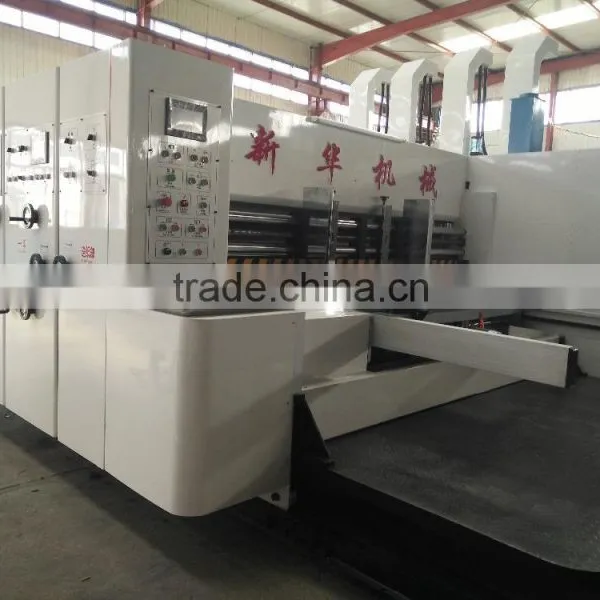

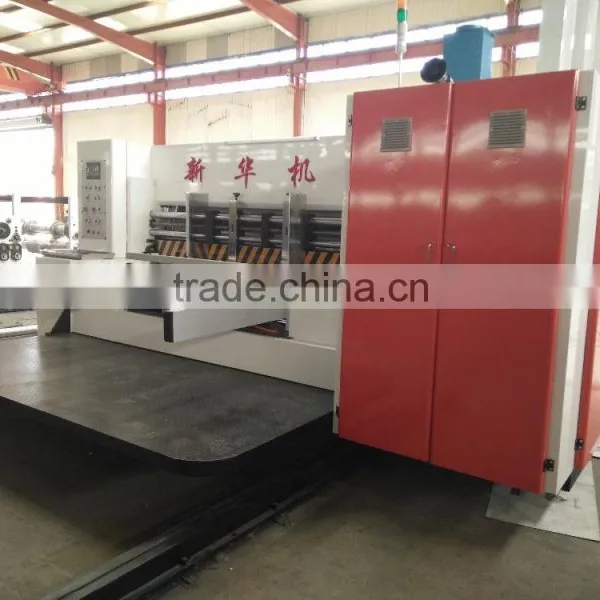

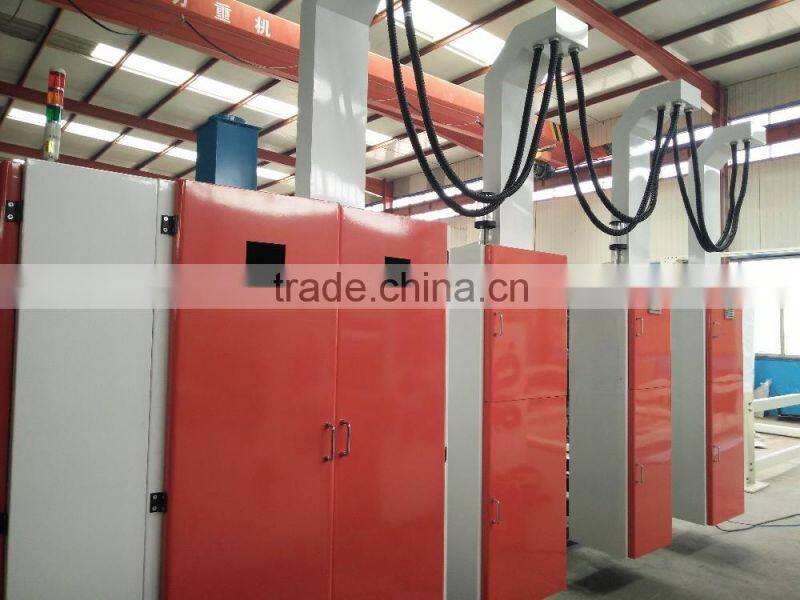

Best Quality High Speed Corrugated Carton Printer Slotter Die Cutter With Stacker Machine

High speed automatic flexo ink printing slotting rotary die cutting with stacker machine

Lead edge feeding unit

1, Feed the leading edge positioning, frequency adjust the feed rate.

2. Adjustable air flow, increase warped cardboard and thin cardboard secure transmission, accuracy

3. Right and left side covers, a guide mechanism, the smooth displacement accuracy.

4. Clutch, pneumatic locking, safe and reliable.

5. The feed roller is seamless wear rubber wrapped and do balance correction.

6. Lower feed roller is seamless embossed hard chrome plating, balance correction.

7. Feed roll gap adjustment dial worm adjustment range 0-12mm, the use of cross-slider mechanism, when adjusted to ensure the correct transmission gear is always engaged state.

8. Computer adjustment device

1).Feed computer touch-screen human-machine interface adjustments.

2)This method can save the time of adjustment, and the test can be adjusted to the correct position and reduce the waste of paper.

3)Can save model, change the model faster, more convenient.

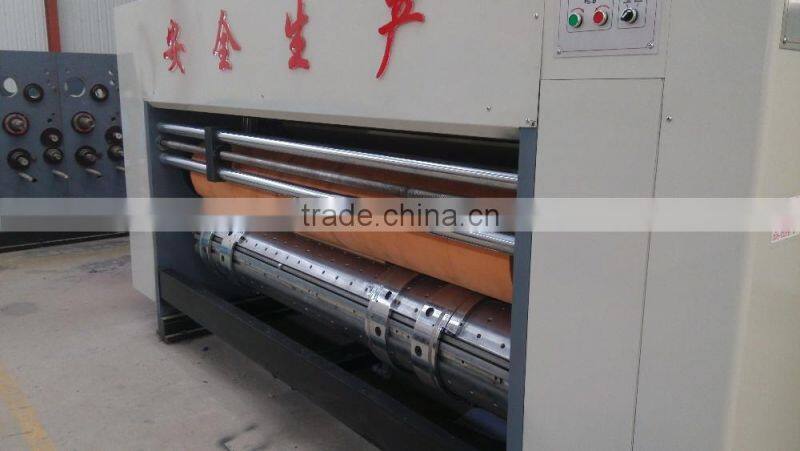

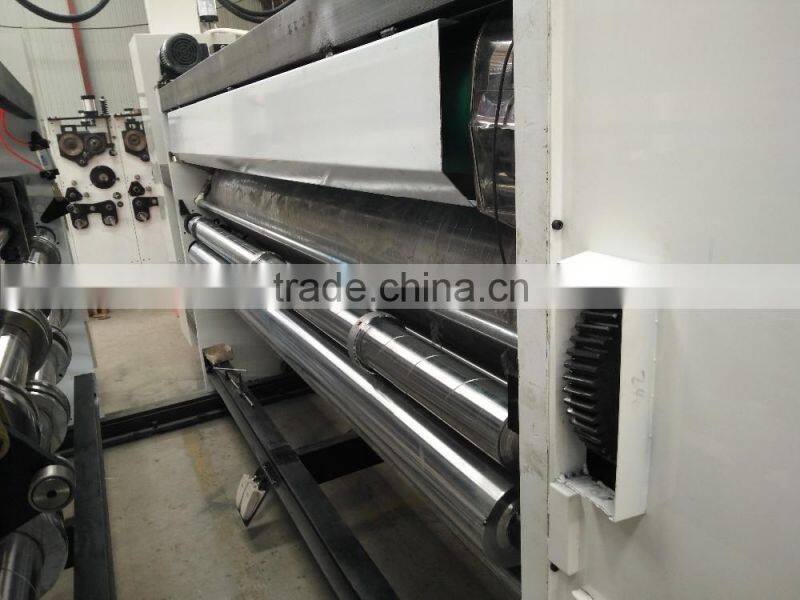

Printing unit

1. Printing roller

1)Steel material, surface grinding, hard chrome plating.

2)Balance correction, smooth operation.

3) Type using thorns hanging version, convenient, reduce printing test print and scrap

2. Printing press roller

1)Steel surface grinding, hard chrome plating.

2)Balance correction, smooth operation.

3)Between the printing press roller and the printing roll dial display, manual adjustment, the adjustment range 0-12mm, using rocker panels institutions, adjust the transmission gear is always to ensure the correct rodents state.

4)Steel surface using advanced hard chrome plating process, hard, smooth, wear-resistant.

5) When feeder with pneumatic lift net roller to prevent duplication inked plate and short downtime, network roll hole in the ink dry.

3. Rubber roller (optional 80% natural rubber high temperature refining, origin dongguang)

1) Seamless steel surface wear rubber wrapped by balance correction.

2) High special rubber roller grinding, good ink transfer effect.

3) Cots with overload device, can significantly extend the life of rubber roller.

4. Upper and lower feeding paper roller

1)Upper roller:with left and right adjustable feed roller

2)Lower  roller :seamless, surface grinding, hard chrome plating.

3) Gap between the upper and lower feed rollers dial display, worm adjustment, the adjustment range 0-12mm, using the rocker panels connected, always adjusting the transmission gear teeth together to ensure the correct center distance.

4) Anilox roller

Thick-walled seamless steel pipe, through balance correction, surface grinding, coining

     Identifies the mesh is, a group of 200, two groups 220,3 240,4 group 240 group

5. Phase adjustment

1), the differential planetary gear mechanism

2), the printing phase micro controller and electric digital 360 ° adjustment (the machine is running, stop can be adjusted)

3), the lateral position of the hand wheel adjustment.

6. Ink circulation

1), the use of pneumatic diaphragm pumps ink, ink stability, operation and maintenance simple.

2), the ink filter, filter impurities.

3), with automatic inking unit, the ink can be realized down stop function to prevent the shutdown of the ink dry.

4), the ink reservoir cup to prevent ink splashes and exhaust.

5), the automatic cleaning cycle and automatic ink.

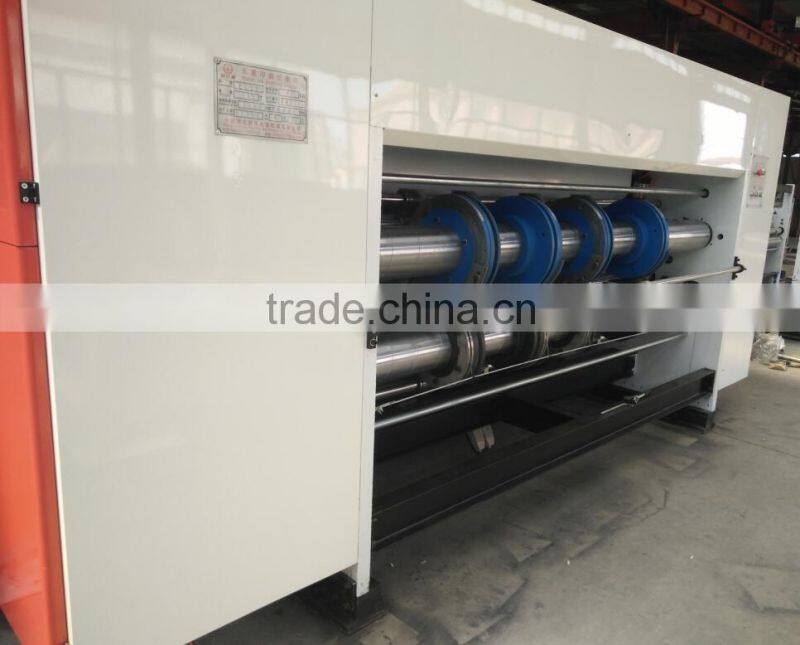

Slotter unit (with creasing part)

1, manually adjust the slotted four knife sliding, moving quickly and easily.

2, synchronized manually adjust the knife and the knife before slotting size (box height).

3, the synchronization manually traverse, the slotted knife, under the slotted knife, paper knife and shave down pressure line round.

4, tooth grinding heat treated alloy steel slotted knife, a width of 5-7 mm.

5, heat treated alloy steel grinding trimming knife, sharp knife, high precision.

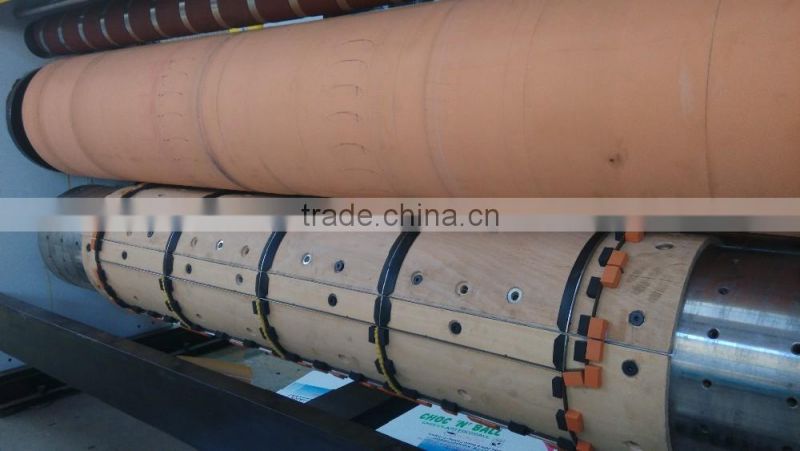

Die cutting unit

1.  Electric adjustment phase (die cutter) position.

2.  Die cutter rubber pad roller has automatic linear speed compensation device, to rectify the die cutter error of rubber cushion wear, axle direction automatic move left and right 60mm device.

3.  Equipped With rubber grinding device, rubber cushion can use again and again, lengthen the life of rubber cushion.

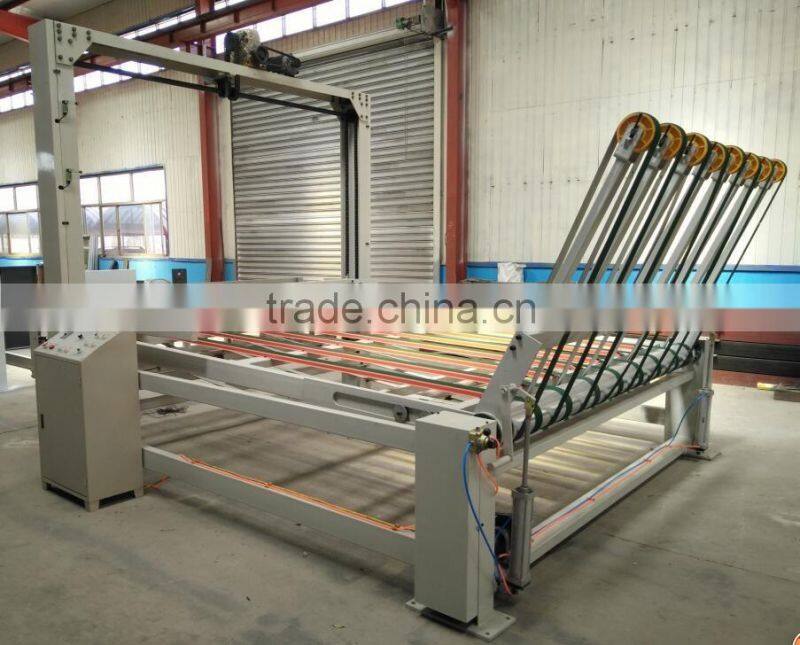

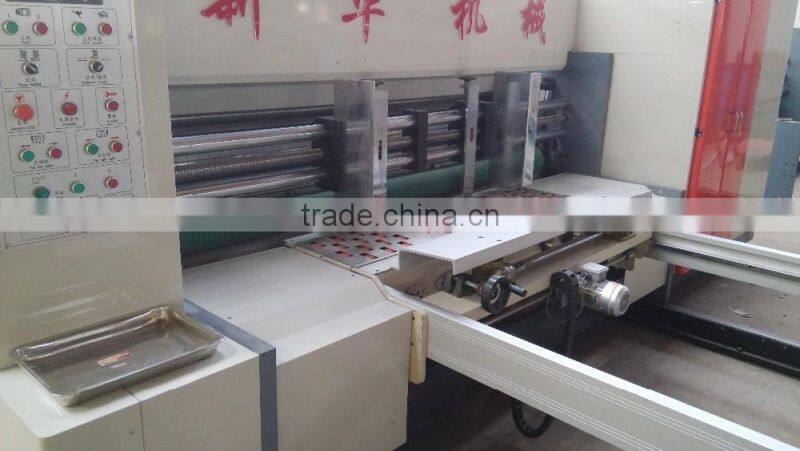

Stacking unit (optional)

1. Paper-receiving arm can be operated by hand ,the receiving paper height can be choosed freely.

2. Paper-receiving arm belt can adjust the tension and loosen lonely.

3. Receiving paper platform rise and fall are driven by the powerful chain.

4. Receiving paper platform is automatically adjust the inclination according to the cardboard rising,

the rising motor with electrical braking function, so the platform can keep the fixed position.

5. Paper plate with pneumatic action, when the cardboard get the predetermined height,

it can hold out automatically.

6. 1600mm the cardboard piling height is 1600mm.

7.  Transfer belt driven motor 2.2kw(adjust the speed and control) 1set

8.  Elevator motor3kw 1 set

9.  Receiving paper arm cylinder 80×300(with three five way electromagnetic valve)

10. The system is 5.5 meters , that has the receiving paper part, transmission part, collecting paper, connected with friction belt to transfer the cardboard, paper receiving part is the cylinder lifting, fasten the belt wheel lonely.

The circle of mold

 1), using the slider up and down roller type, improved cutting accuracy, regardless of Urethane wear

 2), Urethane high quality brands, increase the service life

 3), the knife using a high-density, high-strength steel material enduring

 4), the plastic shaft equipped with repair, a repair to continue to use worn

 5), plus the plastic shaft clutch, die cutting with constant speed

Six gear transmission

 1), smooth operation, low noise, hardness HRC50-55, long life, wear a small, long-term guarantee the accuracy of printed chromatic unchanged.

 2), the phase gear using 45 steel, quenched and tempered, high-frequency hardening, hobbing finishing, hardness HRC50-55.

lubrication

1), each unit with gear pump oil to achieve circular spray lubrication.

2), with the storage tank
