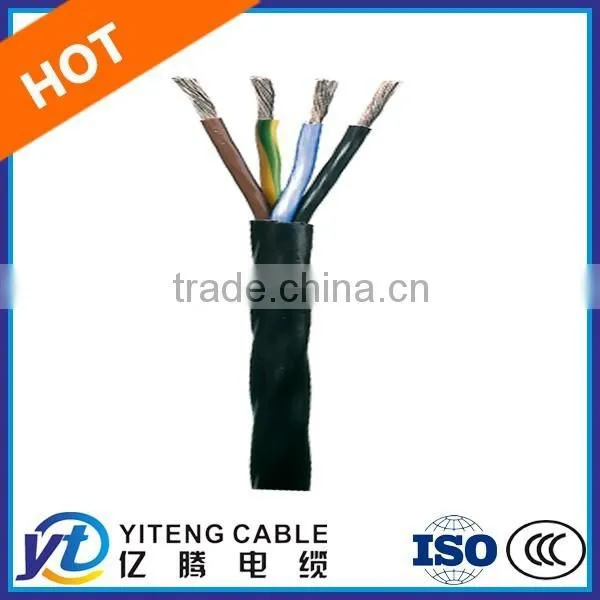

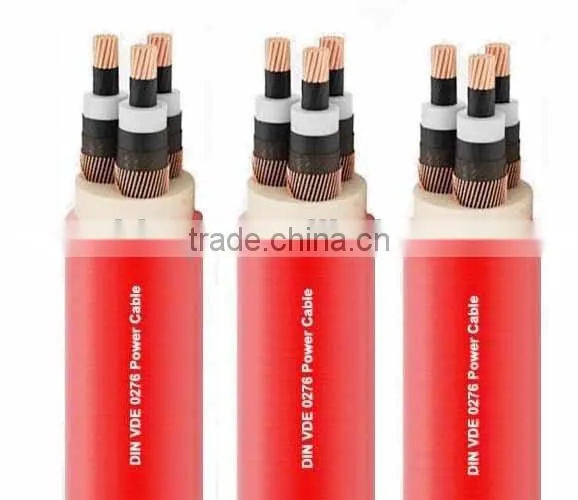

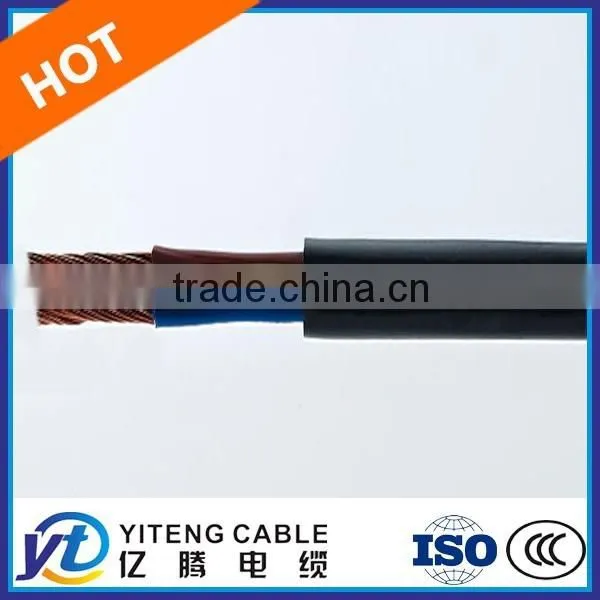

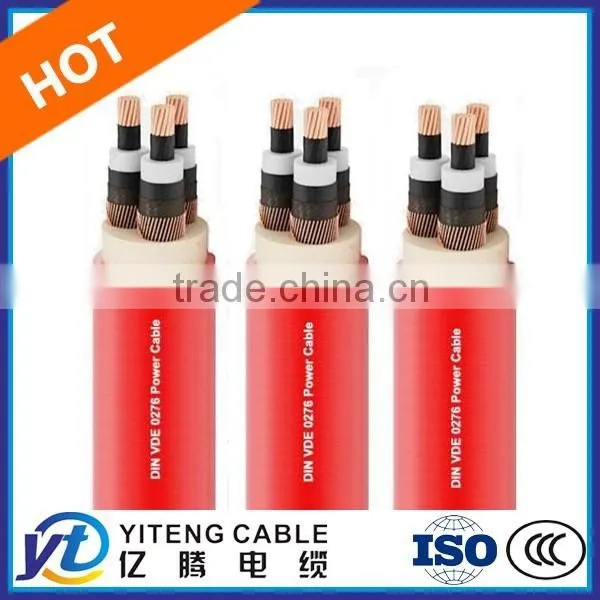

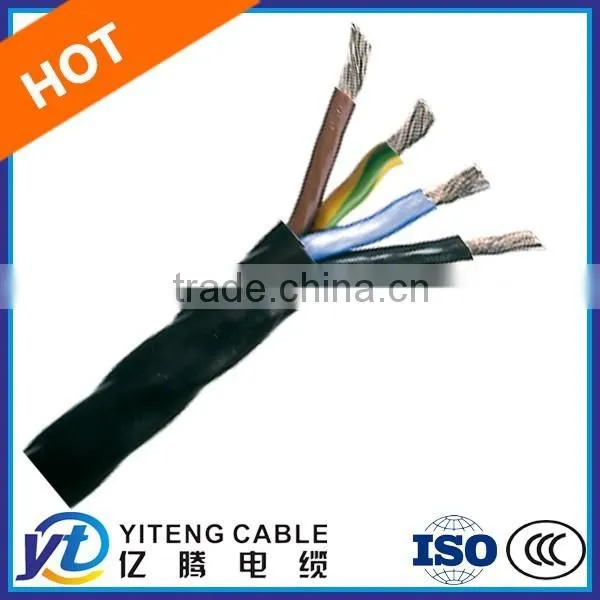

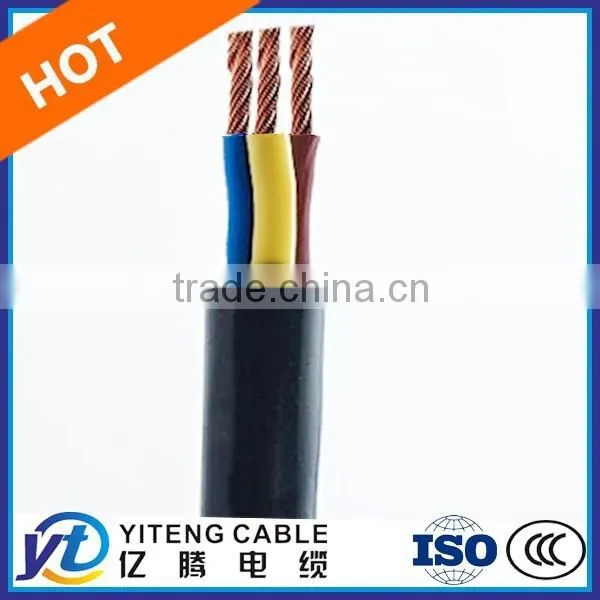

FEP Insulated PVC Sheathed Electrical Power Cable 6/10KV
1. Application for High Temperature FEP Insulated PVC Sheathed Electrical Power Cable 6/10KV
FEP Electrical Cable is German Standards cable used in ground, outdoors, indoors and in cable ducts.
2. Brief Introduction to FEP and Similar Material
The processing of fluoroplastic is not easy, but we successfully overcome this technical difficulty, and this material is used to make our fluoroplastics insulated heat-resistant power cable. Due to the superb stability of fluoroplastic, our product features stable electrical performance, and it is also resistance to acid, alkali, oil, corrosion, water, aging, corrosive gas, high temperature, etc.
Teflon (PTFE) and FEP (FluorEthylenePropylene) are very similar in composition of fluoropolymers PTFE (PolyTetraFluoroEthylene) and PFA (PerFluoroAlkoxy polymer resin). FEP and PFA both share PTFE’s useful properties of low friction and non-reactivity but are more easily formable.
FEP is softer than PTFE and melts at 260°C; it is highly transparent and resistant to sunlight. Thermally, FEP stands out from PTFE and PFA by having a melting point of 260°C, around forty degrees lower than PFA and lower again than PTFE.
Thus FEP and Teflon are ideal insulation materials for wire and cables where the cable is exposed to environment:
- Resistant to Fire
- Chemicals, Acids
- Sunlight
- Moisture
- Corona
- High Voltage
- Temperature range -65°C to 220°C
- Applicable standards JSS 51034 and MIL 16878-D
Electrically, PTFE, FEP and PFA have identical dielectric constants, but FEP’s dielectric strength is only surpassed by PFA. We are offering single core wires and multi-core cables in user specific design.
Standard wire cross sections in mm²
Cross section in mm2: Any cross section and colours are available for single core wire and multi core cables: E.g. 0.034, 0.0507, 0.0568, 0.0806, 0.0887, 0.1282, 0.1409, 0.154, 0.2047, 0.227, 0.2407, 0.3243, 0.3547, 0.382, 0.5168, 0.563, 0.6162, 0.8969, 0.9627, 1.2293, 1.2, 1.5272, 1.9412, 1.8886, 2.3864, 3.0848, 2.9742, 3.7287, 4.7397, 6.3015, 8.6054, 13.5889
3. Description for High Temperature FEP Insulated PVC Sheathed Electrical Power Cable 6/10KV
6/10KV, FEP Insulated Power Cable with PVC Sheath|High Temperature Cable|Heat Resistant Cable
4. Standards for High Temperature FEP Insulated PVC Sheathed Electrical Power Cable 6/10KV
IEC 60502-2, DIN VDE 0276-620
5. Construction Characteristics for High Temperature FEP Insulated PVC Sheathed Electrical Power Cable 6/10KV
1. Conductor Shape: Circular Stranded
2. Insulation: FEP
3. Minimum Installation Temperature: -5 ℃
4. Bending Factor When Laying: 12(xD)
5. Max. Conductor Temperature in Service: 90 ℃
6. Short-circuit max. conductor temperature: 250 ℃

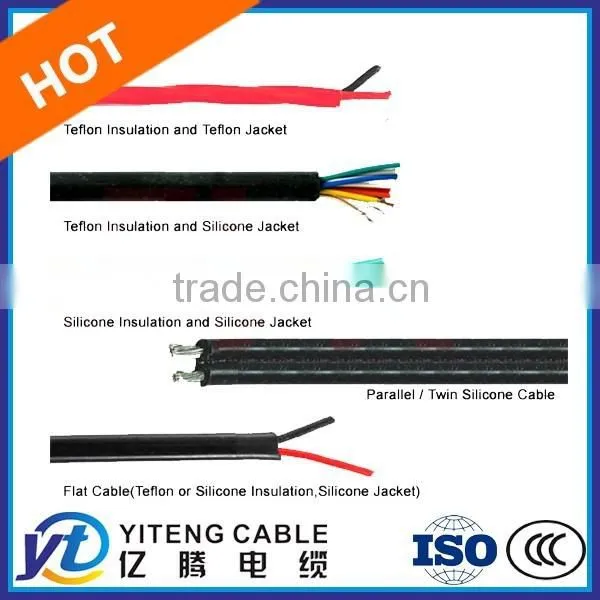

6. Model Explanation for High Temperature Electric Power Cable with Teflon | PTFE | FEP | PFA | Fluoroplastic Insulation
| Model | Descriptions | Working Temperature (℃) |
| FF46 | FEP PFA Teflon Fluoroplastics insulated and sheathed power cable | -60~200 |
| FF46P | FEP PFA Teflon Fluoroplastics insulated and sheathed, copper braid shielded power cable | -60~200 |
| ZR-F46(FV) | FEP PFA Teflon Fluoroplatics insulated and flame-retardant PVC sheathed power cable | -40~105 |
| YGC-F46(FG) | FEP PFA Teflo Fluoroplastics insulated and silicon rubber sheathed power cable | -60~180 |
| YVF-F46 | FEP PFA Teflon Fluoroplastics insulated and flame-retardant NBR PVC sheathed power cable | -60~105 |
7. Code Explanation for High Temperature Electric Power Cable with Teflon | PTFE | FEP | PFA | Fluoroplastic Insulation
| Code | Meaning for FEP|PFA|PTFE|Teflon|Fluoroplastics Insulated High Temperature Power Cable |
| Series Code | Omitted |
| F (F46) | FEP (F46) |
| VF | NBR |
| G | Silicon rubber |
| ZR (V) | Flame-retardant PVC (70℃, 90℃, 105℃) |
| 22 | Steel tape armored and PVC sheathed outside |
| 32 | Thin steel wire armored and PVC sheathed outside |
| P | Copper braid shield |
| R | Multi-strand soft conductor |
8. Qualification for High Temperature Electric Power Cable with Teflon | PTFE | FEP | PFA | Fluoroplastic Insulation
1. The DC resistance of this FEP PFA Teflon heat-resistant power cable is in accordance with GB 3956.
2. The insulation resistivity at 20℃ is higher than 500MΩ•km.
3. The end product is detected by the voltage withstand test, and it should not be damaged during the 5-minute-testing. Additionally, the test voltage is 3.5kV AC, and the frequency is 50Hz.
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.
3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Package and Shippment:
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package upon customer's receipt.
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission.
6. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables.
| Welcome Your Visit! Hope to Get in Touch with You! | |
| Cable Factory Name | Yiteng Cable Technology Hebei Co., Ltd. |
| Factory Established in | Year 1994, 20 Years’ Experience of Producing kinds of Cables |
| Factory Location | Jiajiakou Town, Ningjin County, Hebei, China |
| Export Office Location | No. 228 Jianshe North Street, Shijiazhuang, Hebei, China |
|
Cable Products Type |
Customized Cables per Requirement |
| Bare Aluminum Conductor AAC AAAC ACAR ACSR | |
| Overhead Aluminum Aerial Bundle Cable (ABC Cable) | |
| Aluminum Alloy Cable with/ without Armor and Interlock | |
| Shielded/ Screened Control Cable | |
| Computer Shielded Cable | |
| Flexible Rubber Cable | |
|
Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable | |
| High Temperature Cable, Silicone Rubber Insulated Cable, Teflon Insulated Cable | |
| Fire Resistant/ Flame Retardant Power Cable | |
| Low Voltage Power Cable and Medium Voltage Power Cable with or without Armour ( Armour Type: Steel Tape or Steel Wire) | |
Questions and Answers!
Experts of Yiteng Cable will always wait to answer all your questions!
1. When was Yiteng Cable founded?
Our factory was first establlished in Year 1994 and then it changed names several times.
2. What kinds of cables does Yiteng Cable produce?
1). Overhead Line Cables:
Bare Conductor: AAC, AAAC, ACAR, ACSR, etc
ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;
2). Alluminum Alloy Cable;
3). Shield Cable;
4). Control Cable;
5). Power Cable;
6). Special Cable in accordance with Customer's specific requirement.
3. What certificates does Yiteng Cable has been approved?
Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;
4. What's the Minimum Order Quantity?
Yiteng Cable accepts small trial orders to facilitate customer's inspection and trial of our cable.
5. Can customers audit Yiteng Cable?
Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.
Experts of Yiteng Cable will always wait to answer all your questions!
We hope to get in touch with you!
