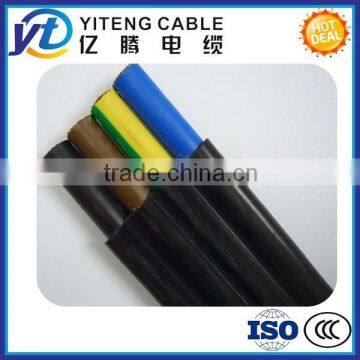

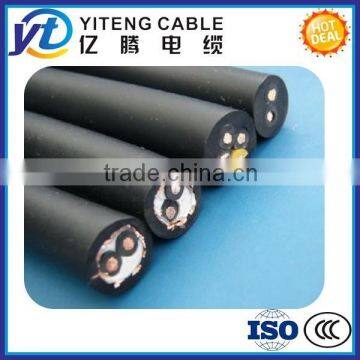

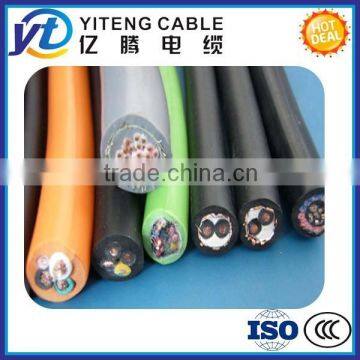

Flexible Copper Conductor Medium Duty Rubber Cable YZ YZW
Cores and sections
1, 2, 3, 4, 5, 3+1,
Cores-Cross secrion(mm2)
1 Core: 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400
2 Core: 1.5 2.5 4 6 10 16 25 35 50 70 95
3 Core: 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150
4 Core: 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150
5 Core: 1.5 2.5 4 6 10 16 25
Application:
1 Cable for rated voltage of 450/750v
2 Used in prot agriculture imigation system and illumination ,Moveable electric equipment and instrument ans electronic tools and household electrical appliancesof rated
3 Operation condition:
A rated voltage: Uo/u450/750v
B Max. Permissible continuous operation temperature of conductor 65° C
C The bending radius of cable should not be less than 6 times of diameter of the cable
Remarks:
1 Before laying, make sure the Cable match the equipment or meet the operating requirement of manufacture, keep the surface of the cable clean.
2 When operating operator follow the instruction strietly; When operating, inspect the operation situation and record the operating process, make sure there is no short circiut caused by extemal cforce or other reasons.
3 After closing down, make through examination to the cable and solve problems immediately if there are.
Model:
YC(havey type rubber cable), YCW ( Halogen free havey type rubber cable), YZ ( medium-sized rubber cable), YZW (Halogen free medium-sized rubber cable )
Standard: GB/T5013-2008
Rated voltage: 450V/750V
Color: Many colors optional or per order
Core: 1core, 2 core, 3 core, 4 core, 5 core, 3core+1core, 3core+2core, 4core+1core...
Cross-insectional area: 1mm2 to 240mm2
Package: Normally coil or iron-wooden drum or steel drum, or per order
Type and Model
Part no. |
Line core number and conductor nominal section |
Norminal thinkness of insulation(mm) |
Norminal thinkness of sheath (mm) |
Overall Diameter (mm) |
At 20 DC Resistance of conductor (ohm/km) |
110230 |
1x1.5 |
0.8 |
1.4 |
6.60±0.1 |
13.3 |
110231 |
1x2.5 |
0.9 |
1.4 |
6.60±0.1 |
7.98 |
110234 |
2x1.0 |
0.8 |
1.3 |
8.60±0.2 |
19.5 |
110235 |
2x1.5 |
0.8 |
1.5 |
9.60±0.2 |
13.3 |
110236 |
2x2.5 |
0.9 |
1.7 |
11.40±0.3 |
7.98 |
110237 |
2x4.0 |
1 |
1.8 |
13.40±0.4 |
4.95 |
110238 |
2x6.0 |
1 |
2 |
15.6±0.4 |
3.3 |
110239 |
3x1.0 |
0.8 |
1.4 |
9.2±0.2 |
19.5 |
110240 |
3x1.5 |
0.8 |
1.6 |
10.3±0.3 |
13.3 |
110241 |
3x2.5 |
0.9 |
1.8 |
12.00±0.4 |
7.98 |
110242 |
3x4.0 |
1 |
1.9 |
14.40±0.4 |
4.95 |
110243 |
3x6.0 |
1 |
2.1 |
16.80±0.5 |
3.3 |
110244 |
4x1.0 |
0.8 |
1.5 |
10.30±0.3 |
19.5 |
110245 |
4x1.5 |
0.8 |
1.7 |
11.30±0.4 |
13.3 |

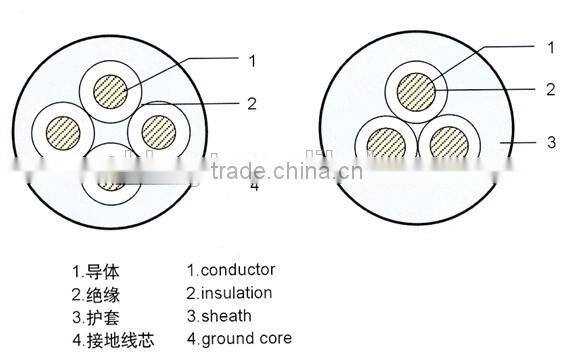

Cable Structure
Yiteng Cable Technology Hebei Co., Ltd.
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,

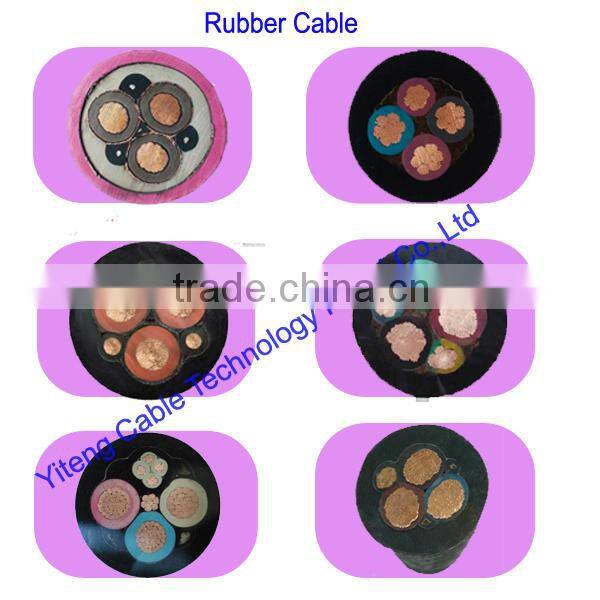

Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc

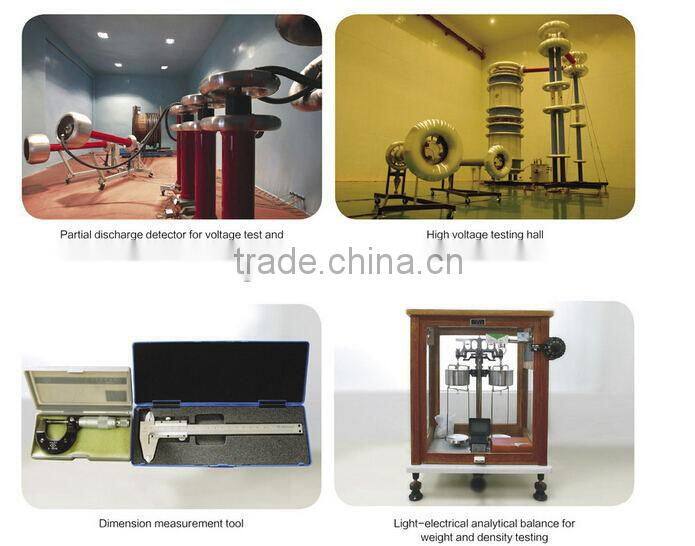

Our Testments
FAQ
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, HebeiProvince, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy? A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list? A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
