Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard

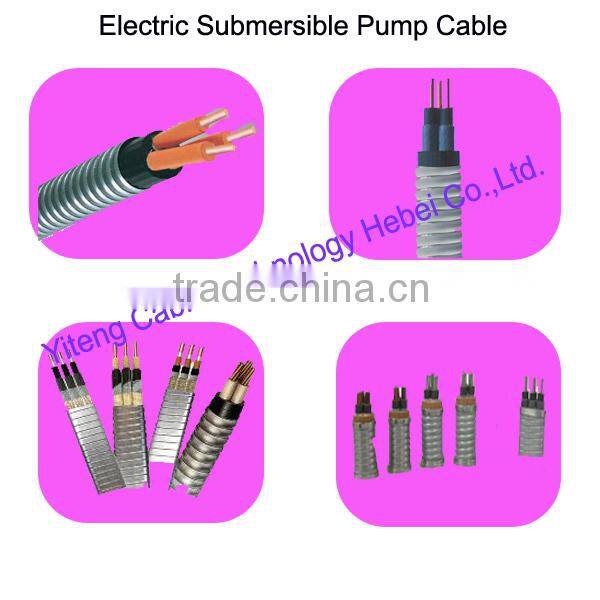

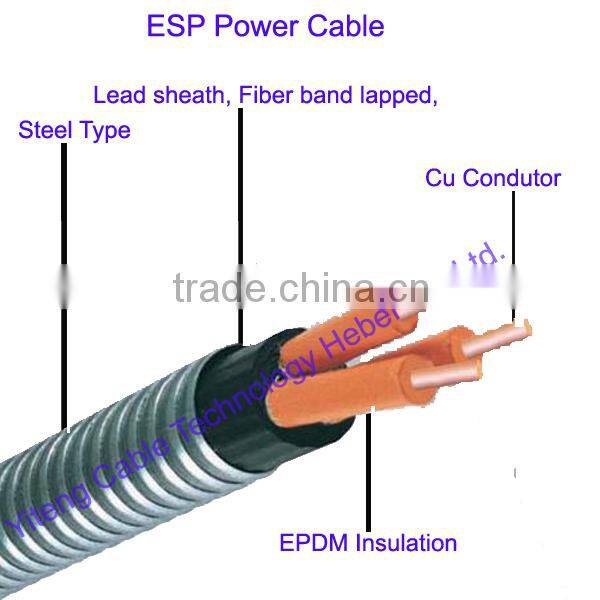

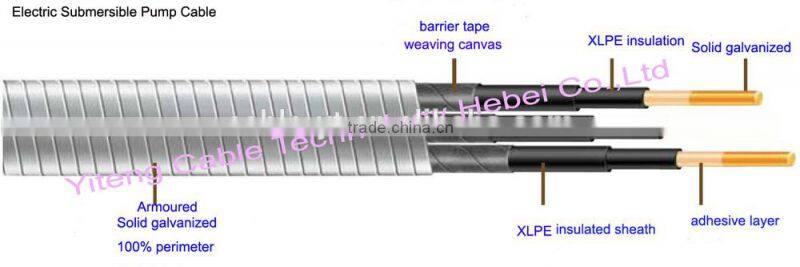

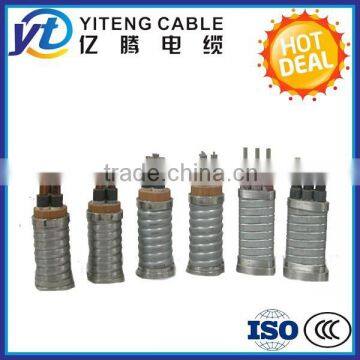

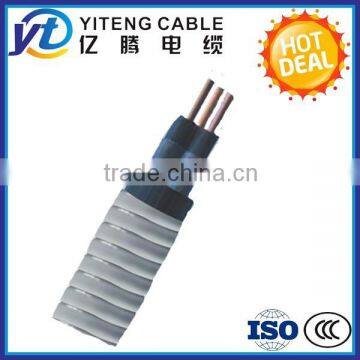

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard

Name: ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard
Brand: YITENG
SKU: 113028445
Availability: InStock

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard thumbnail-1

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard thumbnail-2

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard thumbnail-3

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard thumbnail-4

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard thumbnail-5

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard thumbnail-6

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard photo-1

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard photo-2

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard photo-3

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard photo-4

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard photo-5

ESP EPDM Submersible Deep Well Pump Power Cable AWG Standard photo-6

US$ 0.1 - 25 MOQ: 100 Meters

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

YITENG

Model Number:

QYJYEQ QYYEQ

Contact Supplier Request Quote Chat Now

Yiteng Cable Technology Hebei Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN SHANGHAI QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name YITENG

Model Number QYJYEQ QYYEQ

Insulation Material XLPE

Type Low Voltage

Application Other, Industrial, Computer, Mobile Phone, Network

Conductor Material Copper

Jacket Other, Galvanized Steel

ESP EPDM submersible deep well pump power cable AWG standard

Product Description

Storage Requirements:

Submersible Pumps Cables are not allowed to bump, twist, both ends of which need to keep away from moisture.

Voltage Class: 3KV,4KV,5KV,6KV

Model and Data

Model	Products Structure	Maximum Working Temperature
QYYEQ type submersible power cable	Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable	150℃
QYJYEQ type submersible pump lead cable	Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, PTFE band, chinlon fiber woven, galvanized(steel stainless, Monel ) steel tape armored	150℃
QYYFN type submersible power cable	Polyimide-F46 coextruded film/ fluoroplastic composite insulation, nitrile rubber sheath, PTFE band, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable	150℃
QYEQNY type submersible power cable	EPDM insulation, lead sheath, fiber band lapped, nitrile rubber public sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable	120℃
QYYEQNY type submersible power cable	Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, fiber band lapped, nitrile rubber public sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable	150℃
QYEQ type submersible power cable	EPDM insulation, lead sheath, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable	120℃
QYPNY type submersible power cable	Polypropylene insulation, complex sheath of nitrile and PVC, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable	90℃
QYJYFF type submersible pump lead cable	Polyimide-F46 coextruded film/ fluoroplastic composite insulation, chinlon fiber woven, galvanized(steel stainless, Monel ) steel tape armored submersible pump lead cable	205℃
QYENY type submersible power cable	EPDM insulation, PTFE band/ fiber band lapped, nitrile rubber sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable	120℃
QYEN type submersible power cable	EPDM insulation, nitrile sheath, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable	120℃
QYPF type submersible power cable	Polypropylene insulation, complex sheath of nitrile and PVC, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable	90℃
QYPN type submersible power cable	Modified polypropylene insulation, nitrile rubber sheath, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable	90℃
QYYFF type submersible power cable	Polyimide-F46 film/ fluoroplastic composite insulation, fluoroplastic sheath, PTFE band, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable	180℃
