XLPE Insulated PVC Sheathed WaterProof Type HV Power Cable
Specifications:
--Factory Direct Supply of low voltage, medium voltage and high voltage power cable with armor or without armor,
--OEM Service Provided,
--Best Cable Quality, Premium Service,
Product Description
48/63KV, 64/110KV HV/ High Voltage XLPE Insulated Power Cable(including Waterproof Power Cable) for Power Station and City Electric Network
1. Application
HV XLPE insulated power cables are widely used in power station and city electric network.
This kind of cable has such characteristics as high working temperature, large transmission capacity, good electrical performance, convenience to be erected and laid, low fault rate and easy maintenance etc.
2. Standards
High Voltage XLPE Insulated Power Cable complies well with international standards, such as IEC 60840, GB11017, etc.
3. Features
The maximum allowable temperature of conductor is 90 0C at normal operation.
The maximum temperature of conductor, in case of short circuit for less than 5S continuously, shall in no case exceed 250℃
The temperature not below 0 0C when cables laid.
Installation bending radius of cable: 20D for single core cable. (D=overall diameter of cable)

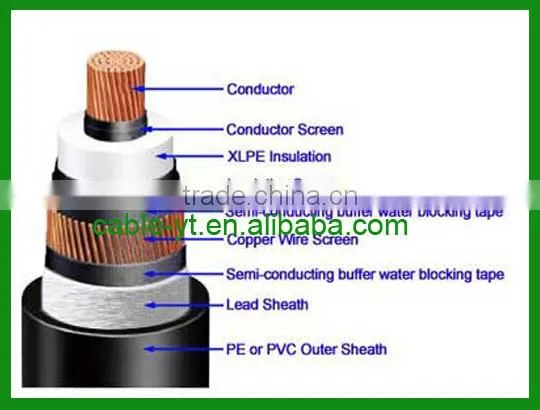

4. Construction: Compacted stranded circular or segmental copper or aluminium conductor, extruded semi-conducting compound as conductor screen, cross-linked polyethylene(XLPE) insulation, semi-conducting compound as insulation screen, semi-conducting water blocking tape, corrugated aluminium sheath, PE or PVC outer sheath.
5. Types and Description
Type |
Rated Voltage |
Description |
|
YJV YJLV YJY YJLY |
48/63kV
64/110kV |
XLPE insulated PVC sheathed HV power cable |
XLPE insulated PE sheathed HV power cable | ||
|
YJAV YJLAV YJAY YJLAY |
XLPE insulated PVC sheathed waterproof type HV power cable |
|
XLPE insulated PE sheathed waterproof type HV power cable | ||
|
YJQ02 YJLQ02 YJQ03 YJLQ03 |
XLPE insulated lead sheathed PVC over-sheathed HV power cable |
|
XLPE insulated lead sheathed PE over-sheathed HV power cable |
Conductor size |
Rated voltage 48/63kV |
||||||||
Approximate overall diameter (mm) |
Approximate weight |
||||||||
|
YJ(L)V YJ(L)Y |
YJ(L)AV YJ(L)AY |
YJ(L)Q02 YJ(L)Q03 |
YJV YJY |
YJAV YJAY |
YJQ02 YJQ03 |
YJLV YJLY |
YJLAV YJLAY |
YJLQ02 YJLQ03 |
|
1x185 |
65.0 |
72.0 |
70.0 |
5250 |
5480 |
9040 |
4330 |
4430 |
7900 |
1x240 |
66.0 |
73.0 |
71.0 |
6050 |
6350 |
9990 |
4520 |
4860 |
8570 |
1x300 |
67.0 |
74.0 |
73.0 |
6680 |
6950 |
10680 |
4740 |
5020 |
8820 |
1x400 |
69.0 |
78.0 |
75.0 |
7710 |
7980 |
11870 |
5160 |
5510 |
9390 |
1x500 |
71.0 |
82.0 |
77.0 |
8690 |
8930 |
12950 |
5500 |
5840 |
9830 |
1x630 |
75.0 |
85.0 |
81.0 |
10160 |
10350 |
14600 |
6140 |
6450 |
10700 |
|
Conductor size (mm2) |
Rated voltage 64/110kV |
||||||||
Approximate overall diameter (mm) |
Approximate weight (kg/km) |
||||||||
|
YJ(L)V YJ(L)Y |
YJAY YJLAY |
YJ(L)Q02 YJ(L)Q03 |
YJV YJY |
YJAY |
YJQ02 YJQ03 |
YJLV YJLY |
YJLAY |
YJLQ02 YJLQ03 |
|
1x240 |
73.0 |
79.0 |
81.0 |
7110 |
7160 |
13560 |
5620 |
5670 |
12080 |
1x300 |
75.0 |
81.0 |
82.0 |
7710 |
7760 |
14400 |
5850 |
5890 |
12550 |
1x400 |
76.0 |
82.0 |
83.0 |
8620 |
8670 |
15400 |
6140 |
6210 |
12980 |
1x500 |
79.0 |
84.0 |
86.0 |
9700 |
9750 |
16640 |
6600 |
6650 |
13550 |
1x630 |
81.0 |
87.0 |
88.0 |
10990 |
11050 |
18310 |
7100 |
7150 |
14410 |
Quality Assurance:
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.
3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Package and Shippment:
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are packed through export stantdard wooden drums, steel drums, steel-iron drums or as your request;
3. Cables are handled and shipped carefully to ensure perfect package upon customer's receiving.
Service Commitment-Why Choose US?
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission;
6. Production standard depends on customer's technic requirement, otherwise according to IEC, NFC standard;
7. Before production, technical data will be clarified with customer in case of any error or misunderstanding;
8. Trading Terms: FOB Tianjin, Qingdao, Shanghai, or CIF, CFR and other ways are also available;
9. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Company Profile:
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables.
Welcome Your Visit! Hope to Get in Touch with You! | |
Cable Factory Name |
Yiteng Cable Technology Hebei Co., Ltd. |
Factory Established in |
Year 1994, 20 Years’ Experience of Producing kinds of Cables |
Factory Location |
Jiajiakou Town, Ningjin County, Hebei, China |
Export Office Location |
No. 228 Jianshe North Street, Shijiazhuang, Hebei, China |
|
Cable Products Type
|
Electrical Wires |
Customized Cables per Requirement | |
Bare Aluminum Conductor AAC AAAC ACAR ACSR | |
Overhead Aluminum Aerial Bundle Cable (ABC Cable) | |
Aluminum Alloy Cable with/ without Armor and Interlock | |
Shielded/ Screened Control Cable | |
Computer Shielded Cable | |
Flexible Rubber Cable | |
|
Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable | |
High Temperature Cable, Silicone Rubber Insulated Cable, Teflon Insulated Cable | |
Fire Resistant/ Flame Retardant Power Cable | |
Low Voltage Power Cable and Medium Voltage Power Cable with or without Armour (Armour Type: Steel Tape or Steel Wire) | |
Besides, Yiteng Cable also produce cables of customers' special requirement.
These cables can be used for power transmission in air, underground or industrial, such as power station, coal, railway, agriculture and estate, etc...
Dear Friend, if you are interested in our cable products, pls feel free to inform us the diameter or nominal section area or the model type. Then, we will send you our best quotation and wall waht we do is to make your business much more successful.
We hope to get in touch with you!
