IEC 60502-1 0.6/1kV IEC 60502-1 PVC Insulated,PVC Sheathed,steel Wire Armoured Power Cable

FOB Price

US$ 0.1 - 1 / Meter

1000 Meters(Min. Order)

Port Qingdao port
Payment TermsT/T L/C
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YRCC	Place of Origin	China
Model Number	IEC 60502-1 0.6/1kV IEC 60502-1 XLPE insulated,PVC sheathed,steel wire armoured power cable	Type	High Voltage
Application	Power Station	Insulation Material	PVC
Jacket	PVC	Conductor Material	Copper

Product Description

Description

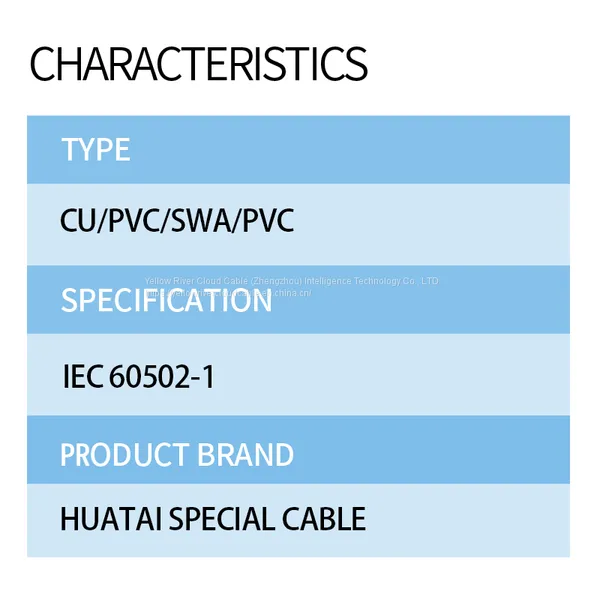

TECHNICAL DATA

Type: Cu/PVC/SWA/PVC, AL/PVC/SWA/PVC

Specification: IEC 60502-1

Rated voltage: 0.6/1kV

Number of Cores: single-core,two-core,three-core,four-core,five-core,three-and-a-half core,three-and-two-half core,

four-and-a-half core.

Operating Temperature: 70℃

Short-circuit Temperature: 160℃

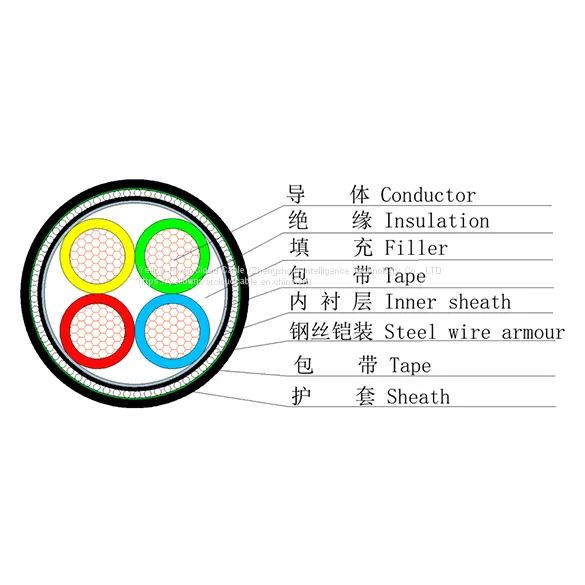

CABLE STRUCTURE

Conductors: Either of Class 1 or Class 2 of copper or aluminium conductor with IEC 60228.

Insulation: PVC compound according to PVC/A in IEC 60502-1.

Inner bell: extruded-type PVC or wrapped PVC tape

Armour: The armour of Muti-core cables are consist of galvanized steel wire，while that of single-core cables shall consist of Non-magnetic metal wire.

Outer sheath: PVC/ST1 according to IEC 60502-1.

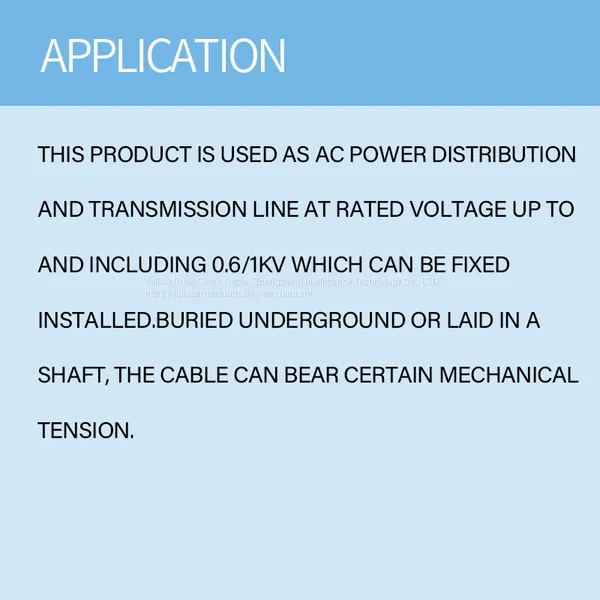

APPLICATION

This product is used as AC power distribution and transmission line at rated voltage up to and including 0.6/1kV which can be fixed installed.Buried underground or laid in a shaft, the cable can bear certain mechanical tension.
