Help CenterEC 60502-1 0.6/1kV IEC 60502-1 XLPE Insulated,PVC Sheathed,steel Tape Armoured Power Cable
Related Products
-
IEC 60502-1 0.6/1kV IEC 60502-1 XLPE Insulated，PVC Sheathed Power CableUS$ 0.1 - 1MOQ: 1000 Meters -
IEC 60502-1,GB/T 12706.1 0.6/1kV IE 60502-1 PVC Insulated and Sheathed Power CableUS$ 0.1 - 1MOQ: 1000 Meters
-
IEC 60502-1 0.6/1kV IEC 60502-1 PVC Insulated,PVC Sheathed,steel Wire Armoured Power CableUS$ 0.1 - 1MOQ: 1000 Meters
-
IEC 60502-1 0.6/1kV IEC 60502-1 XLPE Insulated,PVC Sheathed,steel Wires Armoured Power CableUS$ 0.1 - 1MOQ: 1000 Meters
-
IEC 60502-1 0.6/1kV IEC 60502-1 PVC Insulated and Sheathed,steel Tape Armoured Power CableUS$ 0.1 - 1MOQ: 1000 Meters

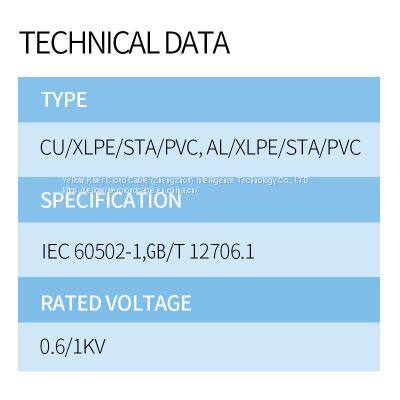

TECHNICAL DATA:
Type: Cu/XLPE/STA/PVC, AL/XLPE/STA/PVC
Specification: IEC 60502-1,GB/T 12706.1
Rated voltage: 0.6/1kV
Number of Cores: single-core,two-core,three-core,four-core,five-core,three-and-a-half core,three-and-two-half core,four-and-a-half core.
Operating Temperature: 90℃
Short-circuit Temperature: 250℃

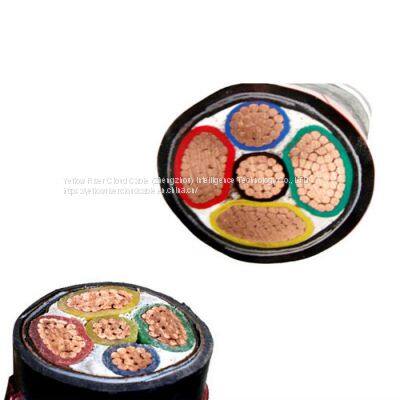

CABLE STRUCTURE:
Conductors: Either of Class 1 or Class 2 of copper or aluminium conductor with IEC 60228.
Insulation: XLPE in accordance with IEC 60502-1.
Inner bell: extruded-type PVC or wrapped PVC tape
Armour: The armour of Muti-core cables are consist of galvanized steel tape，while that of single-core cables shall consist of Non-magnetic stainless steel tape.
Outer sheath: PVC/ST2 according to IEC 60502-1.

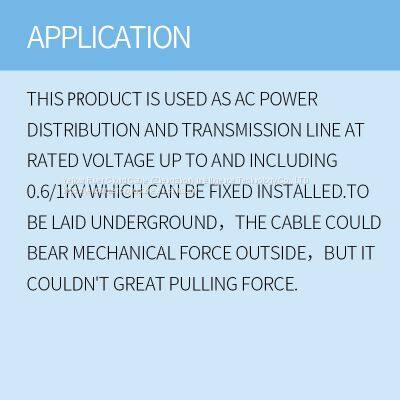

APPLICATION:
This product is used as AC power distribution and transmission line at rated voltage up to and including 0.6/1kV which can be fixed installed.To be laid underground，the cable could bear mechanical force outside，but it couldn't great pulling force.
AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.
AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.
BWhen requested by customers，the cable can also use circular compacted conductors.
AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.
BWhen requested by customers，the cable can also use circular compacted conductors.
AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.
BWhen requested by customers，the cable can also use circular compacted conductors.
AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.
BWhen requested by customers，the cable can also use circular compacted conductors.
AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.
BWhen requested by customers，the phase line of cable can also use circular compacted conductors.
CIt is a neutral wire of the cable which adopts a circular compacted conductor.
AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.
BWhen requested by customers，the phase line of cable can also use circular compacted conductors.
CAmong the two wires, one is the neutral wire and the other is the neutral wire of the cable, and they all adopt the structure of circular compacted conductors.
AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.
BWhen requested by customers，the phase line of cable can also use circular compacted conductors.
CIt is a zero wire of the cable which adopts a circular compacted conductor.
