2-61 Multi-Core Shielded | Screened PVC Insulated Electric Control Cable
----Yiteng Cable Technology Hebei Co., Ltd.
Product Description
Copper Conductor Shielded|Screened Control Cable with PVC Insulation and Steel Wire Armour or without Armour
1. Application for Multi-Core Shielded | Screened PVC Insulated Electric Control Cable:
The PVC Insulated Control Cable is designed for connection wires of power distribution equip-ments for controlling, monitoring, protecting
circuits with A .C. rated voltage 450/750V and below.
2. Manufacturing Standards for Multi-Core Shielded | Screened PVC Insulated Electric Control Cable :
ASTM ICEA BS DIN IEC GB AS/NZS etc.
3. Operating Features for Multi-Core Shielded | Screened PVC Insulated Electric Control Cable:
a). The maximum permissible continuous operating temperature is 70℃
b). The lowest installation temperature of the cable is 0℃ .
c). Permissible Min. Bending radius not less than 6 times of the completed cable diameter for unarmoured cable; not less than 12 times of the completed cable diameter for armoured or copper tape screened cable; not less than 6 times of the completed cable diameter for screened flexible cable.

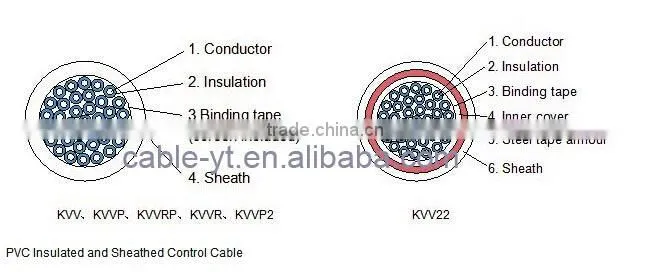

4. Construction for Multi-Core Shielded | Screened PVC Insulated Electric Control Cable:
5. Types, Description and Main Application for Multi-Core Shielded | Screened PVC Insulated Electric Control Cable:
| Type for PVC Control Cable | Description for PVC Control Cable | Main Application for PVC Control Cable |
| KVV |
Copper conductor PVC insulated and sheathed control cable |
This kind of PVC control cable is usded for flxed installation, laying indoors, in trenches and ducts |
| KVVP |
Copper conductor PVC insulated and sheathed control cable with copper cape screen |
This kind of PVC control cable is usded for fixed installation, laying indoors, in trenches andducts, directly in ground where screen is required |
| KVVP2 |
Copper conductor PVC insulated and sheathed control cable with steel tape screen |
Ditto |
| KVV22 |
Copper conductor PVC inxulated and sheathed control cable with braid armour |
This kind of PVC control cable is usded for flxed installation, laying indoors, in trenches and ducts, directly in ground where heavier mechanical withstood |
| KVVR |
Copper conductor PVC insulated and sheathed flexible control cable |
This kind of PVC control cable is usded for laying indoors, movable places where flexibility is requested |
| KVVRP |
Copper conductor PVC insulated and sheathed flexible control cable with braid screen |
This kind of PVC control cable is usded for laying indoors, movable places where flexibility and shield is requested |
Note:For flame resistance PVC insulated and sheathed cable ,add “ZR” in the front of above types. e.g. ZR-KVV.
6. Scope of Multi-Core Shielded | Screened PVC Insulated Electric Control Cable:
| Control Cable Type |
Control Cable Rated voltage V |
Nom.area of conductor (mm2)--PVC Control Cable | |||||||
| 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
| No .of cores | |||||||||
| KVV | 450/750 | - | 2~61 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~10 |
| KVVP | 450/750 | - | 2~61 | 4~61 | 4~61 | 2~61 | 2~14 | 2~14 | 2~10 |
| KVVP2 | 450/750 | - | 4~61 | 7~61 | 7~61 | 4~61 | 4~14 | 4~14 | 4~14 |
| KVV22 | 450/750 | - | 7~61 | 4~61 | 4~61 | 4~61 | 4~14 | 4~14 | 4~14 |
| KVVR | 450/750 | 4~61 | 4~61 | 4~61 | 4~61 | 4~61 | - | - | - |
| KVVRP | 450/750 | 4~61 | 4~61 | 2~61 | 2~61 | 4~48 | - | - | - |
7. Construction Table of Multi-Core Shielded | Screened PVC Insulated Electric Control Cable:
|
Nom. Cross-section of PVC Control Cable mm2 |
PVC Control Cable Conductor construction |
DC resistance at 20℃ Ω/km( ≤) |
|
| Category |
No ./Nom. Dia of strand mm |
||
| 0.5 | 3 | 16/0.20 | 39.0 |
| 0.75 | 1 | 1/0.97 | 24.5 |
| 0.75 | 2 | 7/0.37 | 24.5 |
| 0.75 | 3 | 24/0.20 | 26.0 |
| 1.0 | 1 | 1/1.13 | 18.1 |
| 1.0 | 2 | 7/0.43 | 18.1 |
| 1.0 | 3 | 32/0.20 | 19.5 |
| 1.5 | 1 | 1/1.38 | 12.1 |
| 1.5 | 2 | 7/0.52 | 12.1 |
| 1.5 | 3 | 30/0.25 | 13.3 |
| 2.5 | 1 | 1/1.78 | 7.41 |
| 2.5 | 2 | 7/0.68 | 7.41 |
| 2.5 | 3 | 50/0.25 | 7.98 |
| 4 | 1 | 1/2.25 | 4.61 |
| 4 | 2 | 7/0.85 | 4.61 |
| 6 | 1 | 1/2.76 | 3.08 |
| 6 | 2 | 7/1.04 | 3.08 |
| 10 | 2 | 7/1.35 | 1.83 |
Generally speaking, there are two ways of copper wires braided screen and copper tape wrapped screen for control cables, however, copper wires braided screen has stable structure, the effect of screen won’t change with the cable bending or appearance factors etc, but also doesn’t have influence on cables’ flexibility, braiding density can reach over 80%, besides,copper tape wrapped screen percentage of coverage can reach up to 100%.
Plastic PVC Insulated Screened control Cables are used for rated voltage up to and including 450/750V.
The long-term operating temperature of PVC insulation cable conductor should be lower than 70°C,and that of XLPE insulation should be lower than 90°C.
The installing ambient temperature of cables shouldn’t be lower than 0°C,the Min. bending radius of installing is 6 times of the outer diameter.

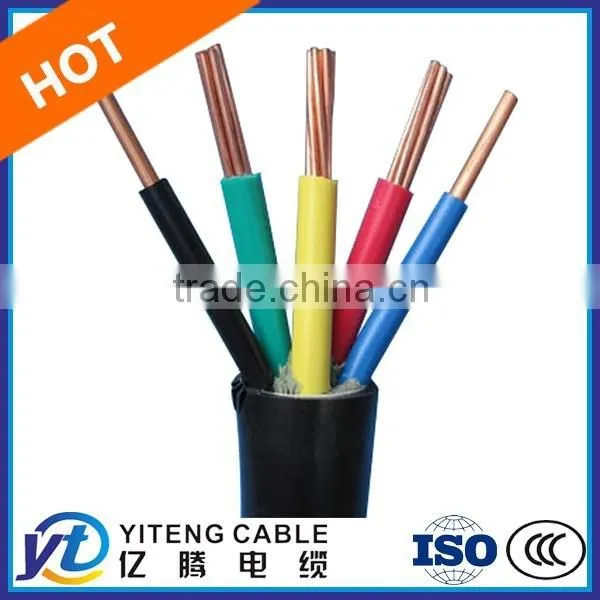

8. Picture Showcase for Multi-Core Shielded | Screened PVC Insulated Electric Control Cable:
