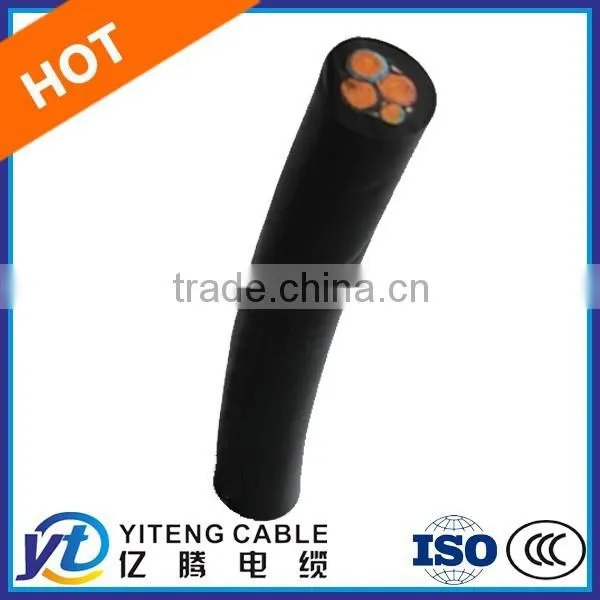

water-resistant, waterproof rubber-jacketed cable, harmonized type
Yiteng Cable - Your Best Business Partner in the Cable Field;
Yiteng Cable - Always At Your Service!
- Technical data
-
- Water resistant
-
Temperature range
flexing -25°C
fixed installation -40°C
in water max. +40°C -
Permissible operating temperature
at conductor +60°C -
Nominal voltage U0/U 450/750 V
in case of protected and fixed installation
U0/U 600/1000 V - Test voltage 2500 V
-
Permanent tensile load
max. 15 N/mm² -
Minimum bending radius
flexing 6 x cable Ø
fixed installation 4x cable Ø
- Cable structure
-
- Copper conductor fine wire stranded, bare
- Rubber conductor insulation
- Core identification to
-
Core colors
up to 5 conductors one-colored
6 and more conductors, black with numbering
3 and above, with green-yellow ground
2 conductors without green-yellow ground - Cores stranded in layers with optimal lay-length
- Special polychoroprene rubber outer jacket
- Outer jacket black
- Properties
-
Resistant to
Ozone
WeatherOil resistant
Test accordingTest of behaviour compared to environmental influences
Test according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)The conductor identification of a single conductor jacketed, of an insulated wire is black.
For application as a protective conductor, the ends are to be identified with green-yellow and the middle conductor with light blue
- Application
-
Specifically designed for use in fresh water up to 10 m water depth and a maximum water temperature of 40 °C for connection of submersible pumps and similar applications. Not suitable for underwater power transmission systems or in waterways or in areas where mechanical damage is possible which represent a potential danger.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package unpon customer's receiving.
Why Choose US?
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission;
6. Production standard depends on customer's technic requirement, otherwise according to IEC, NFC standard;
7. Before production, technical data will be clarified with customer in case of any error or misunderstanding;
8. Trading Terms: FOB Tianjin, Qingdao, Shanghai, or CIF, CFR and other ways are also available;
9. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables.
| Welcome Your Visit! Hope to Get in Touch with You! | |
| Cable Factory Name | Yiteng Cable Technology Hebei Co., Ltd. |
| Factory Established in | Year 1994, 20 Years’ Experience of Producing kinds of Cables |
| Factory Location | Jiajiakou Town, Ningjin County, Hebei, China |
| Export Office Location | No. 228 Jianshe North Street, Shijiazhuang, Hebei, China |
|
Cable Products Type |
Electrical Wires |
| Customized Cables per Requirement | |
| Bare Aluminum Conductor AAC AAAC ACAR ACSR | |
| Overhead Aluminum Aerial Bundle Cable (ABC Cable) | |
| Aluminum Alloy Cable with/ without Armor and Interlock | |
| Shielded/ Screened Control Cable | |
| Computer Shielded Cable | |
| Flexible Rubber Cable | |
|
Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable | |
| High Temperature Cable, Silicone Rubber Insulated Cable, Teflon Insulated Cable | |
| Fire Resistant/ Flame Retardant Power Cable | |
| Low Voltage Power Cable and Medium Voltage Power Cable with or without Armour (Armour Type: Steel Tape or Steel Wire) | |
Experts of Yiteng Cable will always wait to answer all your questions!
1. When was Yiteng Cable founded?
Our factory was first establlished in Year 1994 and then it changed names several times.
2. What kinds of cables does Yiteng Cable produce?
1). Overhead Line Cables: Bare Conductor: AAC, AAAC, ACAR, ACSR;
ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;
2). Alluminum Alloy Cable;
3). Shield Cable;
4). Control Cable;
5). Power Cable;
6). Special Cable in accordance with Customer's specific requirement.
3. What certificates does Yiteng Cable has been approved?
Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;
4. What's the Minimum Order Quantity?
It depends on the production line. For the Overhead Line Cable, the production line is long, so the MOQ should be long enough for the production line to run.
5. Can customers audit Yiteng Cable?
Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.
Pls click and contact us for any question or problem! YITENG CABLE will always be at your service.
