Specifications

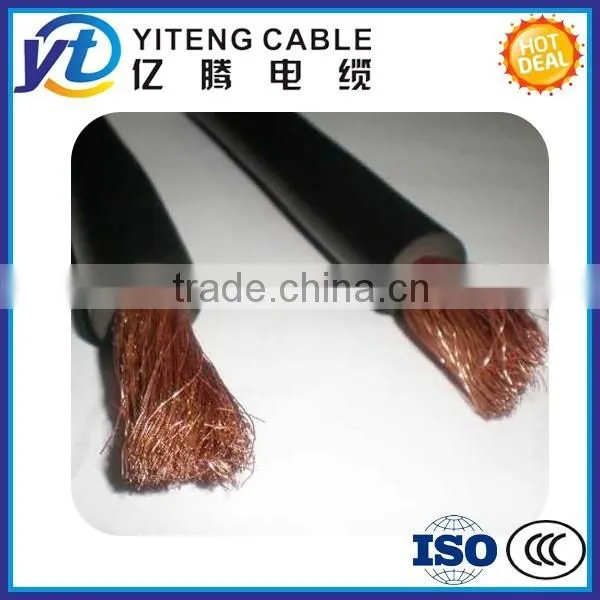

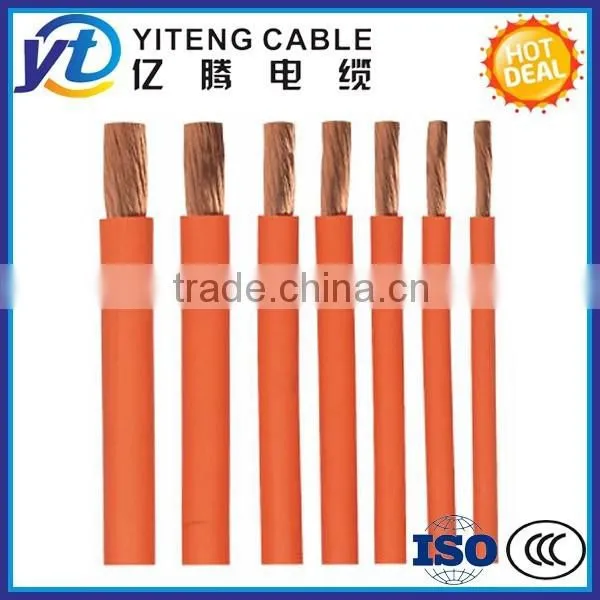

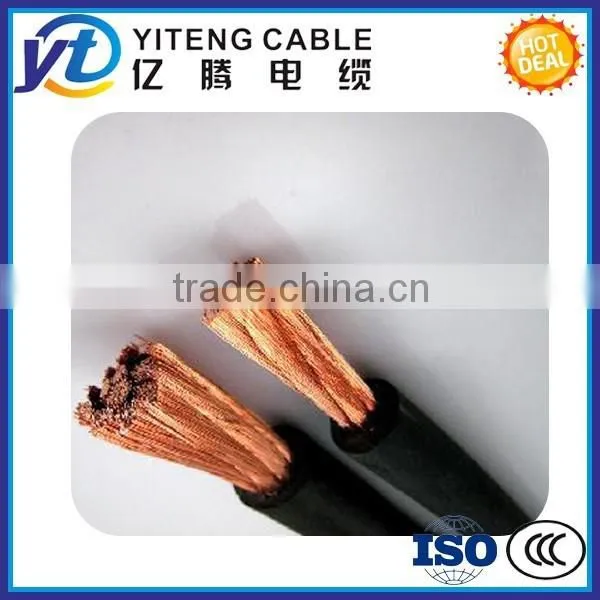

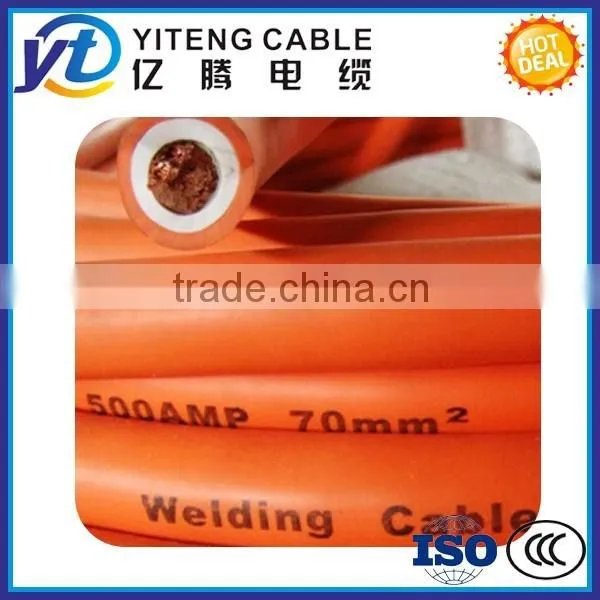

1) Copper Rubber welding cable.
2) Meeting IEC, VDE, EN standard, widely used
3) Excellent performance and competitive price
Standard
IEC 60245
Application
Flexible copper conductor rubber welding cable is used for connecting the electrode to the welding machine.

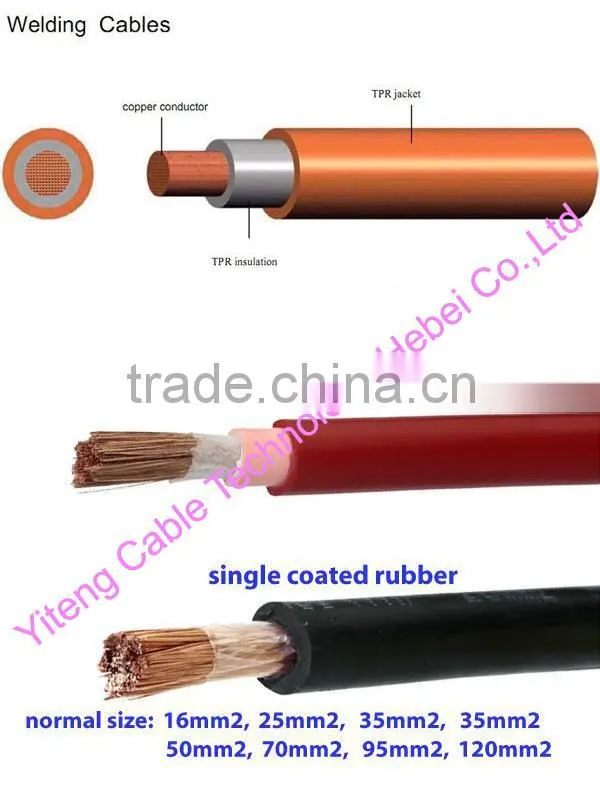

Product Description
1) Nominal area: 10~185mm2
2) Conductor: class 5 tinned or plain copper wire
3) No. of cores: 1
4) Insulation: rubber compound, PCP
5) The products available include:
60245IEC 81: rubber sheathed arc welding electrode cable
60245IEC 82: polychloroprene or other equivalent synthetic elastomer sheathed arc welding electrode cable
Technical Parameters
Sectional Area |
Max. wire dia. of conductor |
Total thickness of sheath |
Avg. overall dia. (mm) |
Approx. weight (kg/km) |
Max. d.c. resistance at 20°c (Ω/km) |
|||
mm2 |
mm |
mm |
Min. |
Max. |
IEC81 |
IEC82 |
Plain copper |
Tinned coppner |
10 |
0.21 |
1.8 |
7.5 |
9.7 |
146 |
154 |
1.91 |
1.95 |
16 |
0.21 |
2.0 |
8.8 |
11.0 |
219 |
231 |
1.21 |
1.24 |
25 |
0.21 |
2.0 |
10.1 |
12.7 |
317 |
312 |
0.780 |
0.795 |
35 |
0.21 |
2.0 |
11.4 |
14.2 |
426 |
440 |
0.554 |
0.565 |
50 |
0.21 |
2.2 |
13.2 |
16.5 |
593 |
611 |
0.386 |
0.393 |
70 |
0.21 |
2.4 |
15.3 |
19.2 |
790 |
818 |
0.272 |
0.277 |
95 |
0.21 |
2.6 |
17.1 |
21.4 |
1067 |
1103 |
0.206 |
0.210 |
120 |
0.35 |
2.8 |
19.0 |
24.0 |
1349 |
1393 |
0.161 |
0.164 |
150 |
0.35 |
3.0 |
21.0 |
27.0 |
1679 |
1699 |
0.129 |
0.132 |
185 |
0.45 |
3.2 |
22.0 |
29.0 |
1984 |
2021 |
0.106 |
0.108 |
Welding Cable H01N2-E IEC60245
Copper rubber welding cable, PVC welding cable, CCA welding cable,
TYPE |
Description |
||
245 IEC 81(YH) |
Welding Cable, sheathed with natural rubber |
||
245 IEC 81(YH) |
Order |
Item |
Property |
1 |
Conductor DC Resistance (Ω/km) |
Reference the table followed |
|
2 |
Power frequency AC voltange test |
Immersed in water at room temperatrues for 1hour finished cable withstands 1000V AC.50Hz.For 5 minute without breakdown |
|
Cable detailed information:
1. Cable working temperature should not exceed 65 degree
2. Cable have a certain extent of temperature resistance and oild resistance, fit to work outdoor
and smeary enviroment
3. Reach standard GB/T18380.1-2001 vertical flame test
4. When cable working in temperature 20 degree, the insulation between
Conductors above 50M .KM
Applicable scope: Rated voltage 300/500V or below, Applied in electric Appliance, elctromotive tools and equipment.
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
Why choose Us
1. Fast delivery
2. Sample available .
3.Top cable supplier in China
4. ISO, IEC,CE ,CCC certifications.
5. Honest Manufacturer.
6.Advanced customization
7.Strong technical support
8.Strict quality control system
9. Quality guarantee after delivery
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, HebeiProvince, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
