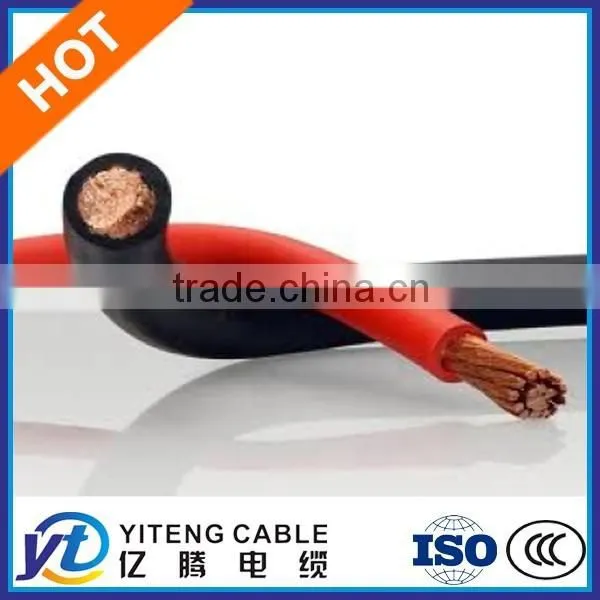

Heavy Duty Welding Cable With Soft Bare Copper 30 AWG Stranding for Maximum Flexibility

Heavy Duty Welding Cable With Soft Bare Copper 30 AWG Stranding for Maximum Flexibility thumbnail-1
Heavy Duty Welding Cable With Soft Bare Copper 30 AWG Stranding for Maximum Flexibility photo-1
US$ 0.5 - 10 MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Yiteng
Model Number:
YH, YHF Welding Cable
Contact Supplier Request Quote Chat Now
Yiteng Cable Technology Hebei Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/ Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Yiteng
Model Number YH, YHF Welding Cable
Insulation Material Rubber
Type Low Voltage
Application Industrial
Conductor Material Copper
Jacket Rubber

Heavy Duty Welding Cable with Soft Bare Copper 30 AWG stranding for maximum flexibility

Specifications:

Conductor: Extra flexible soft bare copper 30 AWG stranding for maximum flexibility

Insulation: Ethylene propylene diene monomer (EPDM) rubber for greater cold weather flexibility



Product Description

Conductor

Extra flexible soft bare copper 30 AWG stranding for maximum flexibility

Insulation
Ethylene propylene diene monomer (EPDM) rubber for greater cold weather flexibility

Temperature Range
-50°C to +105°C (-58°F to +221°F)

Voltage Rating
600 VAC

Features
  • Extra flexible for long flex life
  • Chemical, grease, oil and acid resistant
  • Weather, ozone and sunlight resistant jacket
  • Abrasion resistant
  • Excellent dielectric strength
Compliances
  • RoHS Compliant
Applications
For connections from electrode holder and clamp to arc welder, bus, welding box or transformer.


Rubber Welding Cable Type & Specification:

Welding Cable Type and Description
Welding Cable Types
 Welding Cable Name


Welding Cable Working temperature of core

≤(℃)
YH
Natural rubber sheath for welding machine cable

  65℃
YHF

Horoprene rubber or other syntheitic rubber sheath

welding machine cable

 65℃
Yiteng Cable Technology Produces Flexible Rubber Cable for Welding Machine. Welcome Your Inquiry!



Welding Cable Specification
Welding Cable Cross-section (mm2)
Welding Cable Conductor
Wires*Dia.
Welding Cable Insulation Thickness(mm)

Diameter
Min.
Diameter
Max
Resistance at 20 degree ≤(Ω/km)
Weight
Kg/km
10
322/0.20
1.8
7.5
9.7
1.91
146
16
513/0.20
2.0
9.2
11.5
1.16
218.9
25
798/0.20
2.0
10.5
13.0
0.758
316.6
35
1121/0.20
2.0
11.5
14.5
0.536
426
50
1596/0.20
2.2
13.5
17.0
0.379
592.47
70
2214/0.20
2.4
15.0
19.5
0.268
790
95
2997/0.20
2.6
17.0
22.0
0.198
1066.17
120
1702/0.30
2.8
19.0
24.0
0.161
1348.25
150
2135/0.30
3.0
21.0
27.0
0.128
1648.5
185
1443/0.40
3.2
22.0
29.0
0.106
1983.8



Packaging & Shipping

With Yiteng Cable,

1. Cables are packed in standard export drums or other ways per customer's requirement;

2. Cables are handled and shipped carefully to ensure perfect package unpon customer's receiving.

 Heavy Duty Welding Cable with Soft Bare Copper 30 AWG stranding for maximum flexibility
